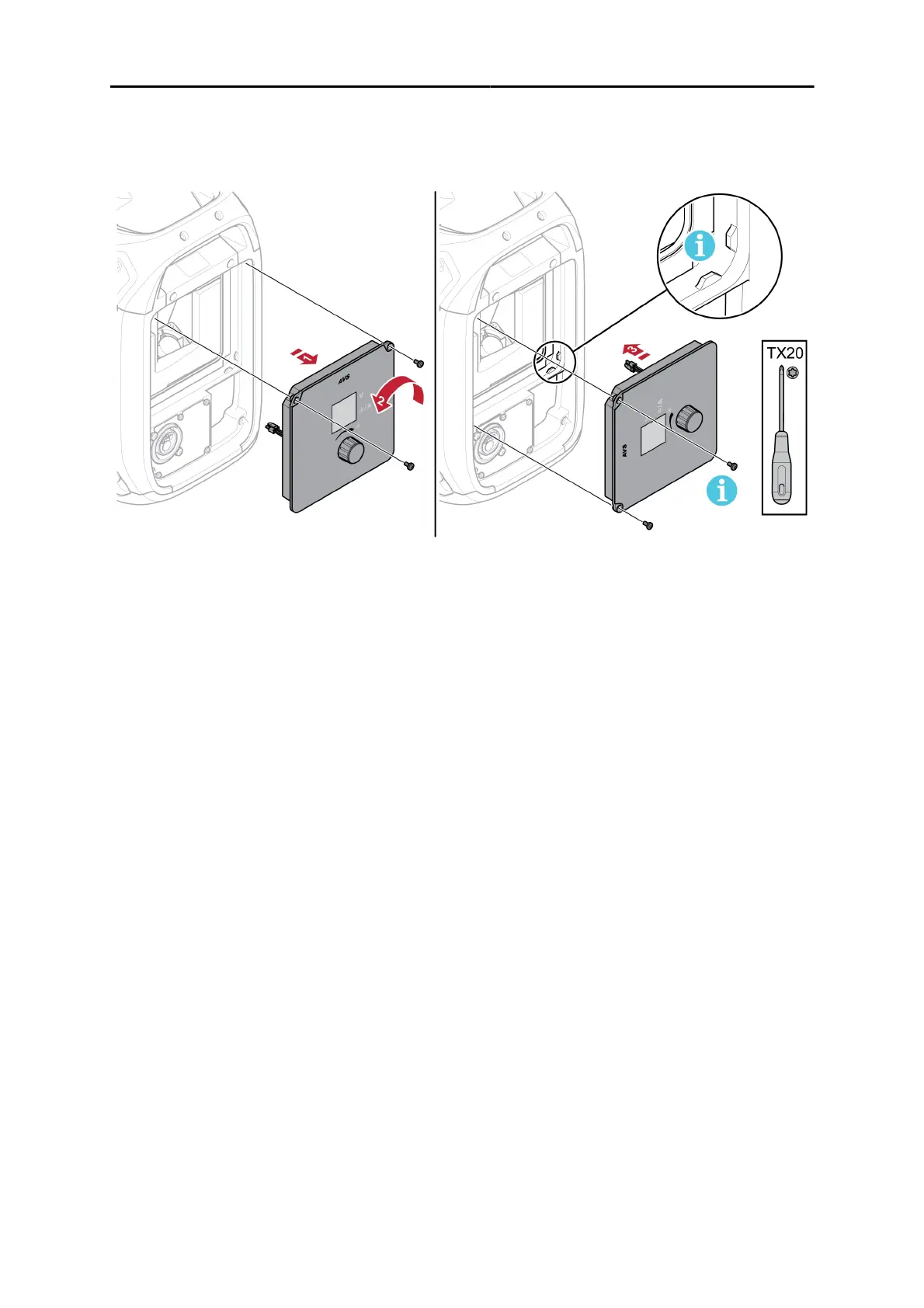

6.5 Rotating the control panel
To use the wire feeder in the horizontal position, the external control panel may be rotated 90°.
1) Remove the two screws for the control panel and remove the panel.
2) Rotate the control panel 90° counter-clockwise.
3) Attach the control panel, ensuring that the small tabs are in the correct position.
4) Fasten the screws.
