LEDs and Coding Switches
4. LEDs and Coding Switches
4.1 LED Assignment

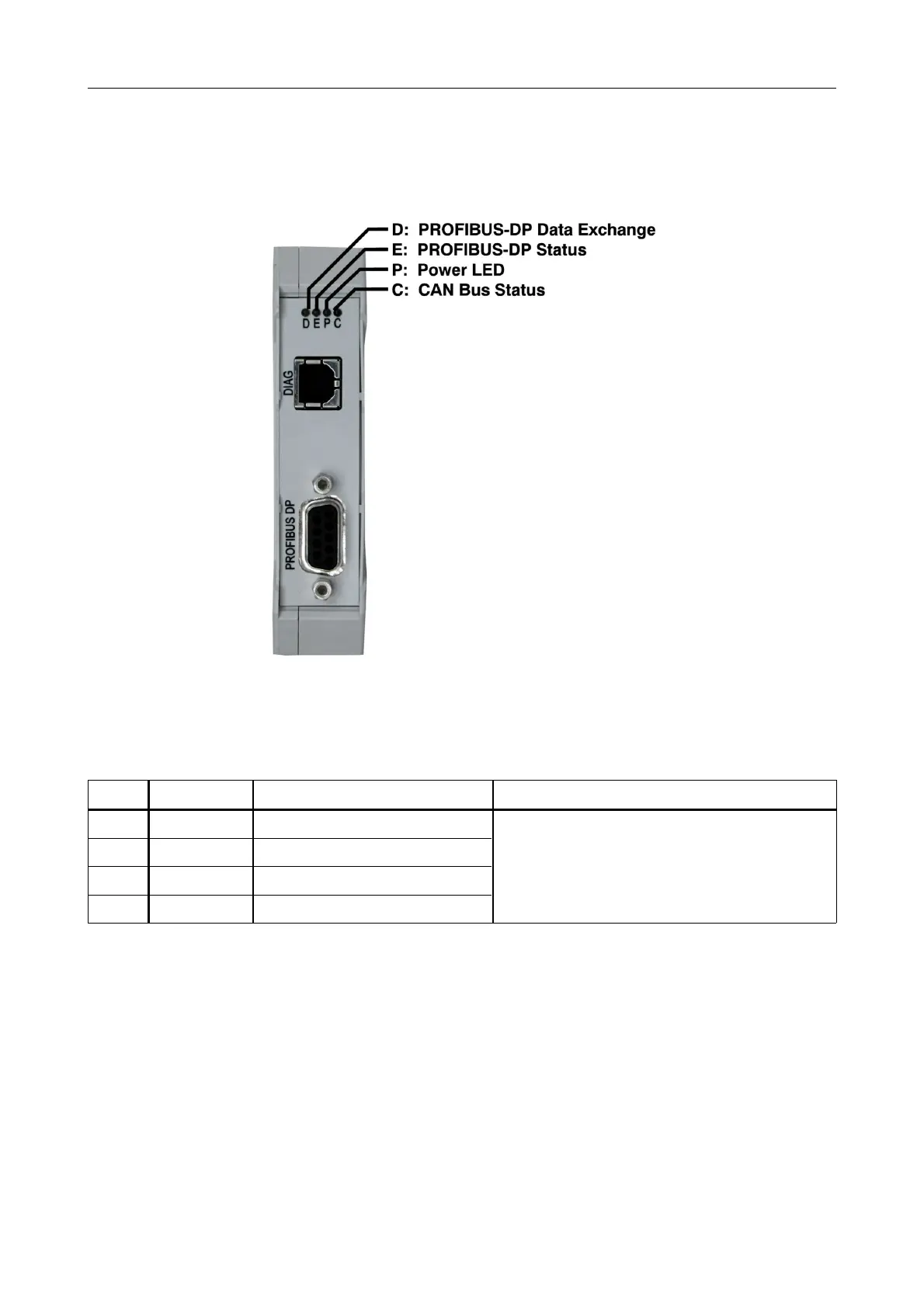

Fig. 3: Position of LEDs in the front panel
4.1.1 LED Indication
LED Color Name Display Function LED on
D green PROFIBUS-data exchange
The complex display function of these LEDs
is specified by the firmware.
Refer to the chapter 'Diagnosis via LED
Display' of the respective software manual
for further information.
E red PROFIBUS-DP status
P green Power LED
C green CAN bus status
CAN-DP/2, CANopen-DP/2
