ESD CAN-DP/2 - Power Supply Voltage Connector

Connector Assignments
6.3 Power Supply Voltage
Device connector: Phoenix Contact Combicon MSTBO 2,5/4-G1L-KMGY
Line connector: Phoenix Contact Combicon FKCT 2,5/4-ST, 5.0 mm grid,
(spring-cage connections) (contained in the scope of supply)
For conductor connection and conductor cross section see page 18.

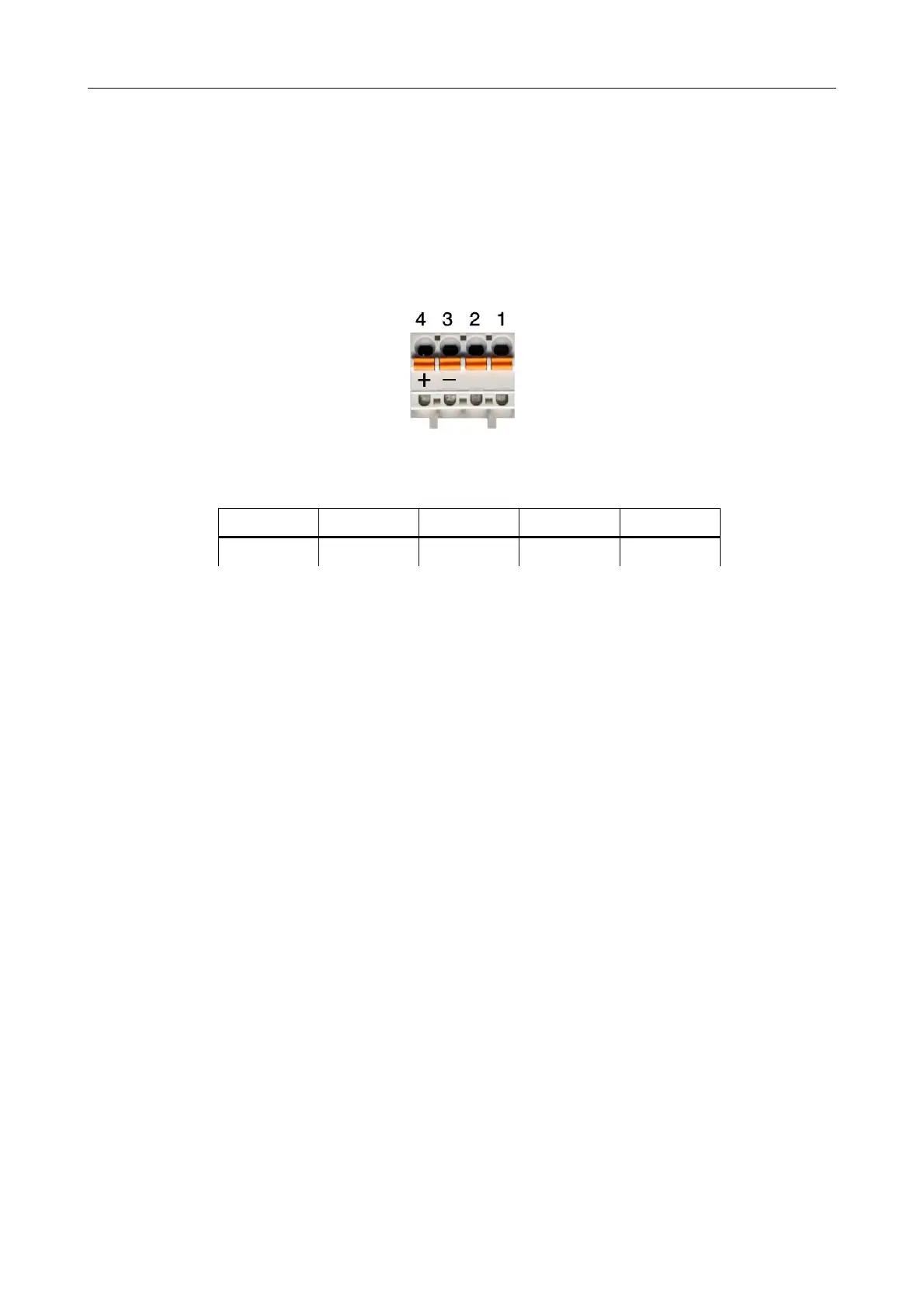

Pin-Position:
Pin-Assignment:
Pin 4 2 2 1
Signal +24 V GND - -
Signal Description:
+24 V... Supply voltage
GND ... Reference potential
- ... not connected
