3.2 Removing the Shipping Pin
The IncuCyte™ ZOOM ships with objectives and filter modules packed in a separate box. There is
also a shipping pin installed to lock the microscope in place. It must be removed before the
system installation can proceed. Remove the filter module access cover by pushing it down and
pulling the cover out. The pin will be visible as in Figure 5 below. To remove the pin, depress the
button in the center of the T handle and pull the pin straight up until it is free. Store the pin with
the other ZOOM accessories so that it can be reused if the system needs to be shipped to
another location or returned for service.

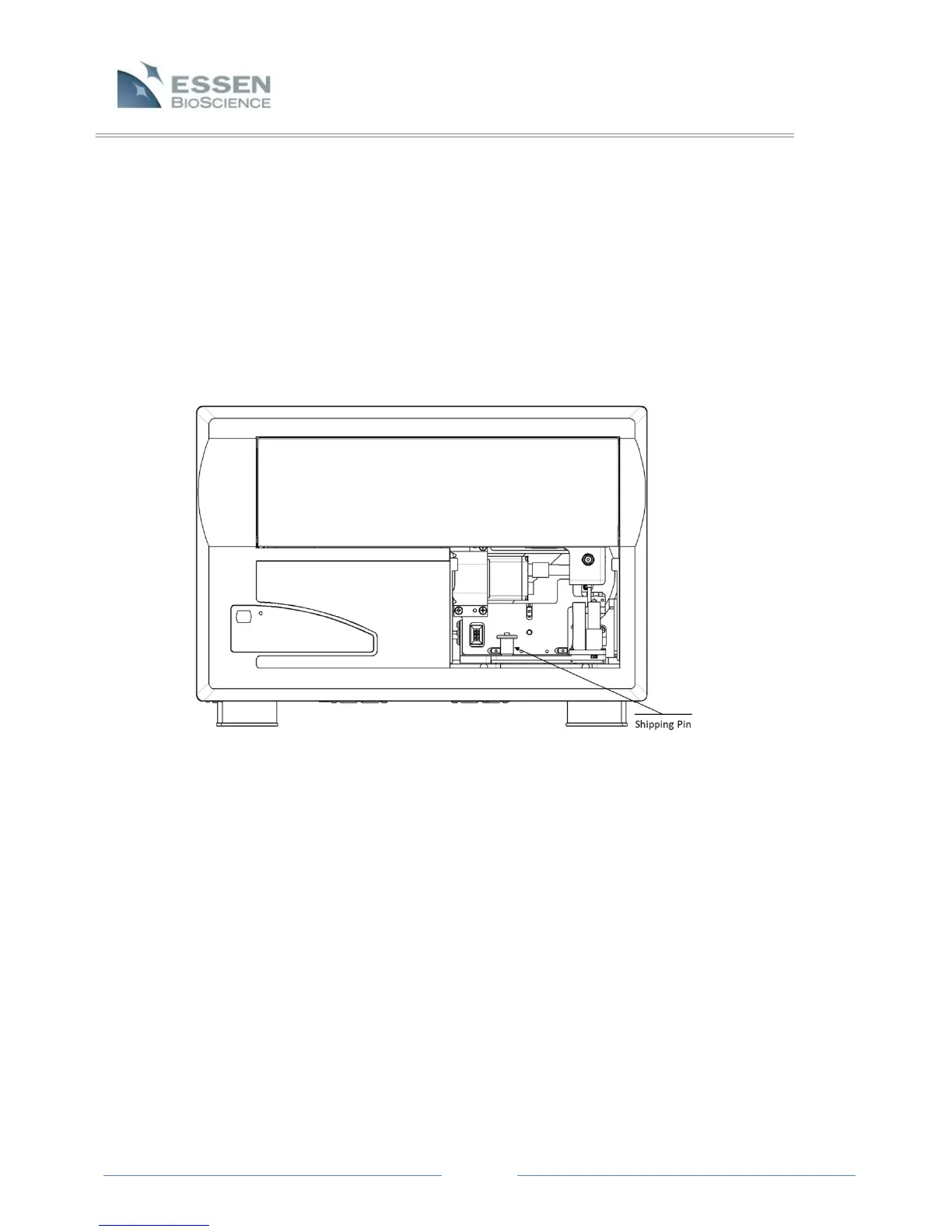

Figure 5. Microscope with access cover removed
