4.2 ES600 Network Module
The ES600 Network Module is used as an Ethernet switch for connecting the
simulation target and possibly several ES4440.2s to an Ethernet board of the user
PC.

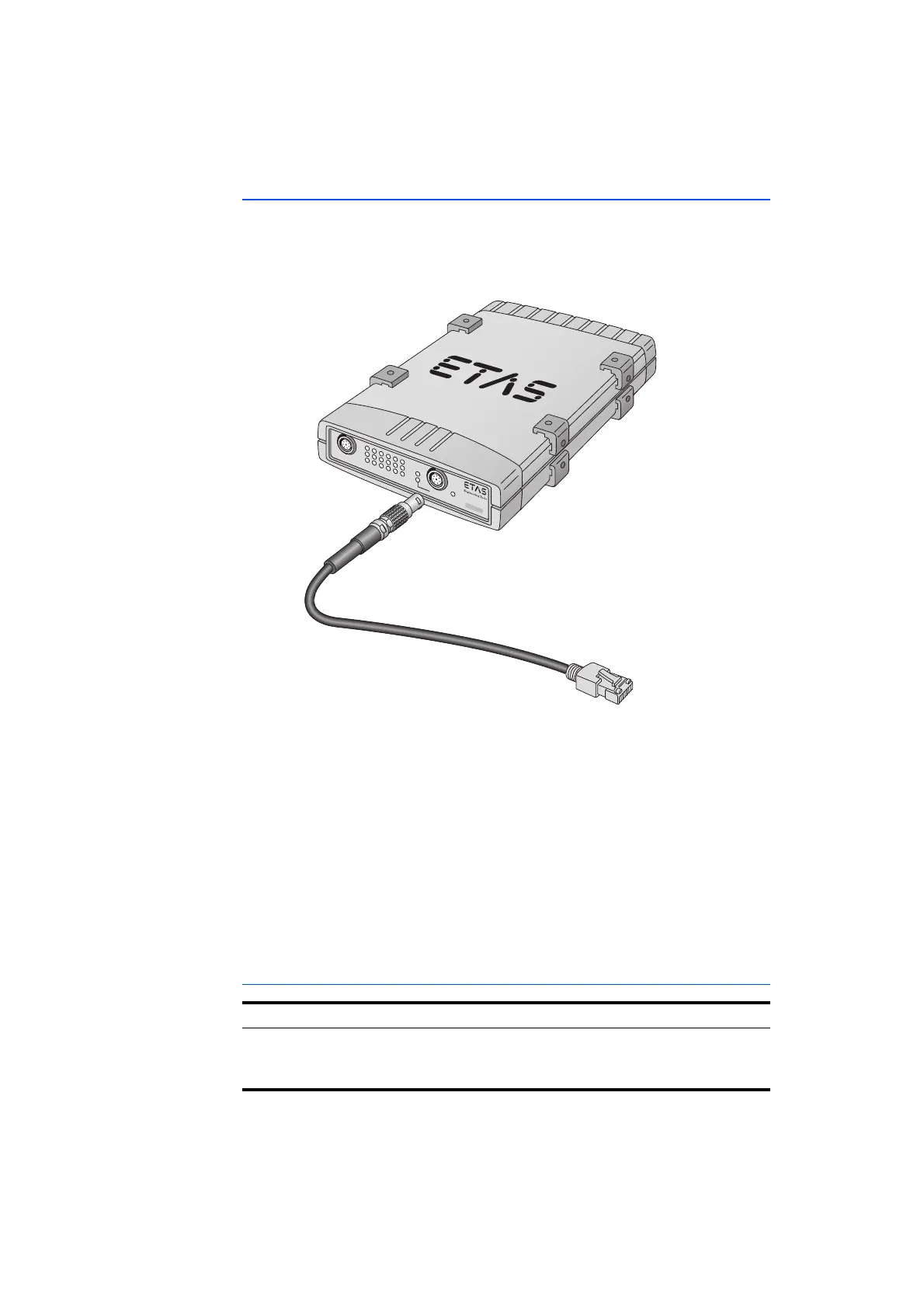

Fig. 4-1 ES600 Network Module
The following is an overview of the most important features of the ES600 Net-
work Module:
• Ethernet switch with 10/100 MBit/s data rate
• Six Ethernet ports (1 x front, 5 x rear)
• One host port
• Cascadable to eight levels
• Status display for every port
• Stable and functional metal housing
Ordering Information
Order Name Short Name Order Number
ES600 Module, Cable CBP120-2,
4 T-Brackets for ES600 Housing,
User’s Guide (German and English)
ES600 F 00K 102 712
ES600.
1
DEV1
1
2
3
4
5
6
HOST
ER
100
ON
ON
CBE 100
0478297
