77 Paradigm Architectural Control Processor Configuration Manual
D
D
A
A
A
Note:
Note:
Note:
Note:
Note:
Note:
Note:
Note:
Note:
Note:
Note:
A
D
Note:
Note:
Emergency Dimmers
1: On 2: On 3: --
4: On 5: -- 6: --
7: On 8: On 9: On
10: -- 11: On 12: On
13: NA 14: NA 15A: On
15B:On 16A:On 16B: On
On is default,
-- =off, NA =dimmer that
is not applicable such as a
CC20 or single density dimmer.
Dimmer doubled dimmers have
“a”&“b” dimmers. Use [and]
and [thru] functions
to select.
Emergency Dimmers
Emergency Level: 100
Load Shedding: On
Input Type: Maintained
Active When: Closed
Emergency Setup
Dimming Setup
Dimmer Setup
Patch By DMX Start
Patch Dimmers
Emergency Setup
Quick Rack Setup
Push to Set Levels
Patch Dimmers
Mode: Dim: DMX DMX
1: 111
DD 2: 112a 368b
3: N A
4: 113
HiRes 5: 114H 115L
DD 6: 116a 117b
Edits all
patch data including
patch set in “Patch by DMX
Start”. Use [and] and [thru]
functions to select dimmers.
Dimmers with less than 2
controllable channels
display NA.
Dimming Setup
Dimmer Setup
Patch By DMX Start
Patch Dimmers
Emergency Setup
Quick Rack Setup
Push to Set Levels
Patch by DMX Start
Dimmer 1 Start: 111
Dimmer 24 End: 135
Patches all dimmers
sequentially with a
DMX start address.
End is info only.
Dimmer 1 Start:
is the only editable
field. Dimmer doubled dimmers
are applied a default +256
offset although the end
value does not reflect
the DD adjustment.
Patch by DMX Start
Dimmer 1 Start: 111
Dimmer 24 End: 135
Patches all dimmers
sequentially with a
DMX start address.
End is info only.
Dimming Setup
Dimmer Setup
Patch By DMX Start
Patch Dimmers
Emergency Setup
Quick Rack Setup
Push to Set Levels
Dimmer Setup
From Dimmer: 1 to: 1
Module Type: D20
Mode: Normal
Curve: Mod Square
Threshold: 1%
Voltage Reg: On
Max Scale: 118V
Min Scale: 6V
Dyn Preheat: Off
Transformer mode: On
DMX Res: Lo 8 bit
The available
module type list is
rack voltage dependant.
Changing a module type
defaults all properties for
the specified dimmer(s)
(mod e, c ur ve, etc).
Dimmer Setup
From Dimmer: 1 to: 1
Module Type: D20
Mode: Normal
Curve: Mod Square
Threshold: 1%
Voltage Reg: On
Max Scale: 118V
Min Scale: 6V
Dyn Preheat: Off
Transformer mode: On
DMX Res: Lo 8 bit
Dimmer Setup
From Dimmer: 1 to: 1
Module Type: D20
Mode: Normal
Curve: Mod Square
Threshold: 1%
Voltage Reg: On
Max Scale: 118V
Specify a
range of dimmers for
dimmer setup. When a range
of dimmers is selected, those
properties that are not equal
display as blank. Edits made
to empty property apply
to all applicable.
Dimmer Setup
From Dimmer: 1 to: 1
Module Type: D20
Mode: Normal
Curve: Mod Square
Threshold: 1%
Voltage Reg: On
Max Scale: 118V
Min Scale: 6V
Dyn Preheat: Off
Transformer mode: On
DMX Res: Lo 8 bit
Dimming Setup
Dimmer Setup
Patch By DMX Start
Patch Dimmers
Emergency Setup
Quick Rack Setup
Push to Set Levels
To identify push
[####-####-####]
[## #.## #.## #.## #]
[####-####-####]
[####-####-####]
[## #.## #.## #.## #]
[## #.## #.## #.## #]
Found w/Error
Lists all
devices that have been
discovered but cannot be
connected/bound because of
neuron status or
communication error. Send a
“Wink” command by
pressing
Found: ####
Needed: ####
Connected: ####
Unconnected: ####
Found w/Error: ####
Stations & LonWorks
To identify push
Heritage 5 btn
[####-####-####]
LCD 7”
[####-####-####]
LightSensor Type 1
[####-####-####]
Lists all
unconnected devices &
their defined type.
Send a “Wink” command by
pressing
Found: ####
Needed: ####
Connected: ####
Unconnected: ####
Found w/Error: ####
Stations & LonWorks
Lists all
connected devices and
their configured name.
Send a “Wink” command by
pressing
To identify push
House Master
[####-####-####]
Presets 1
[####-####-####]
Daylight 1
[####-####-####]
Stations & LonWorks
Found: ####
Needed: ####
Connected: ####
Unconnected: ####
Found w/Error: ####
20 gang Station A
Custom
Presets 3
Heritage 5 btn
FOH LCD
LCD 7”
Heritage 4fdr 7btn
Needed
Lists all
Light Designer
configured station
devices by their configured
name and defined type.
Stations & LonWorks
Found: ####
Needed: ####
Connected: ####
Unconnected: ####
Found w/Error: ####
To identify push
Heritage 5 btn
[####-####-####]
LCD 7”
[## #.## #.## #.## #]
Light Sensor Type1
[####-####-####]
Lists all
found or discovered
devices and their defined
types for the processor.
Stations & LonWorks
Found: ####
Needed: ####
Connected: ####
Unconnected: ####
Found w/Error: ####
Stations & LonWorks
Space: <All>
Found: ####
Needed: ####
Connected: ####
Unconnected: ####
Found w/Error: ####
All spaces for the
selected processor
display in alphabetical
order.
1 About Dimmer
2 DMX Level Data
3 Version Info
4 Project Information
5 Statistics
6 View Message Log
7 System Network
About
8 Stations and LonWorks
System Network
Processor 1
10.1 0 1.1 0 .10 1
Manual *Local*
Processor 2
10.1 0 1.1 0 .10 2
Auto Online
LCD FOH 1
The (read
only) system network
statistics menu provides
online status of the Paradigm
system, Ethernet communi-
cation properties and
connected Paradigm LCD’s
on Ethernet
1 About Dimmer
2 DMX Level Data
3 Version Info
4 Project Information
5 Statistics
6 View Message Log
7 System Network
8 Stations and LonWorks
View Message Log
01:00:00 7/01/08
ACP Online
00:59:45 07/01/08
v1.2.3 upgrade
00:58:15 07/01/08
Dim soft ver error
00:57:00 07/01/08
The read only
message log is intended
to give users a
way to see logged data
without extracting the log
file. Up to 100 of the
most recent messages
display.
About
1 About Dimmer
2 DMX Level Data
3 Version Info
4 Project Information
5 Statistics
6 View Message Log
7 System Network
8 Stations and LonWorks
About

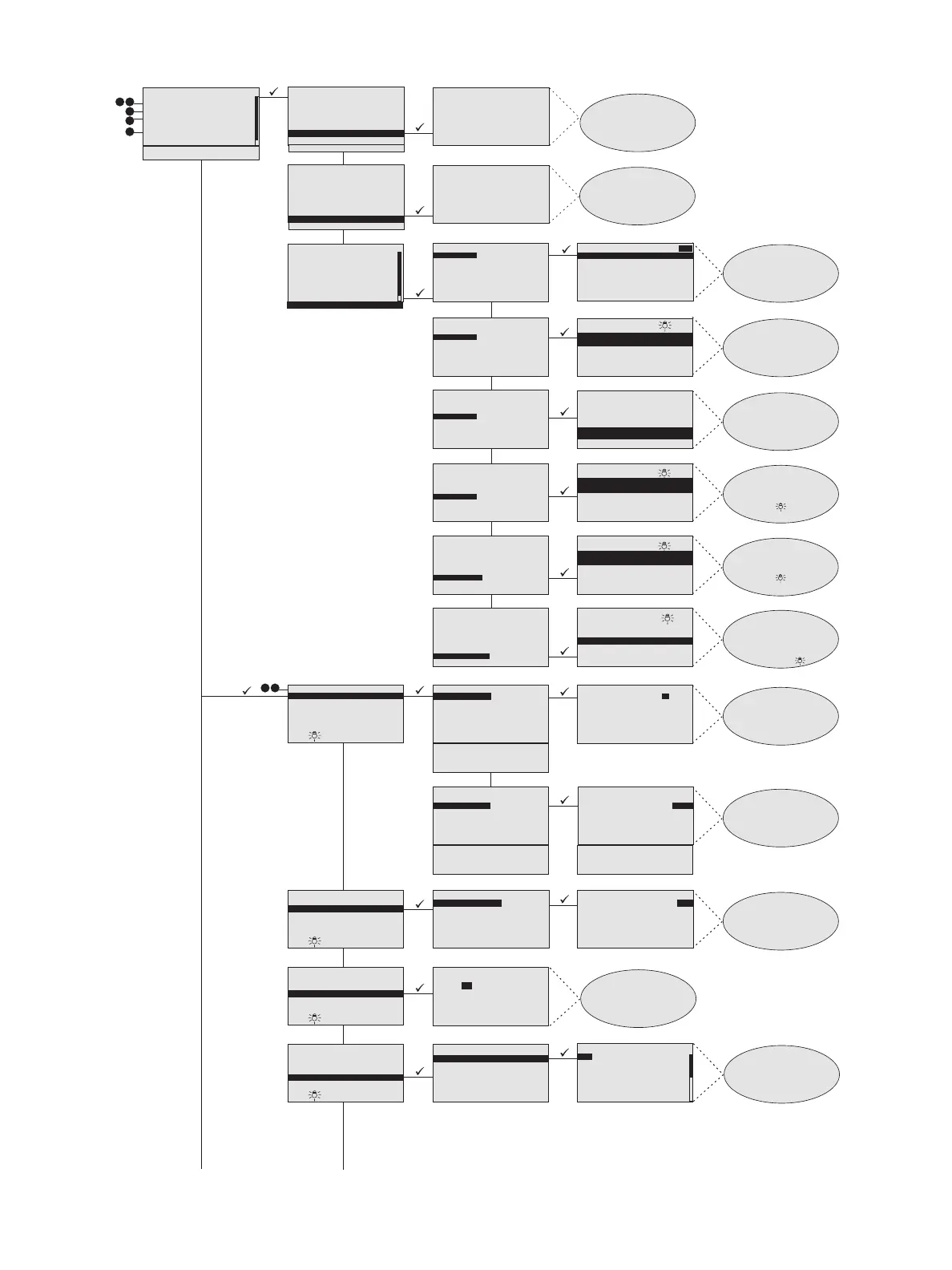

Main Menu
1 About
2 Dimming Setup
3 Arch Setup
4 Dimming Control
5 Arch Control
6 File Operations
7 View/Clear Errors
8 Restricted Access
9 Timed Event Setup
Select Space (abc)
<All>
Entry
Space 1
Space 2
Space 3
Found
Connected
Unconnected
To Next Page
