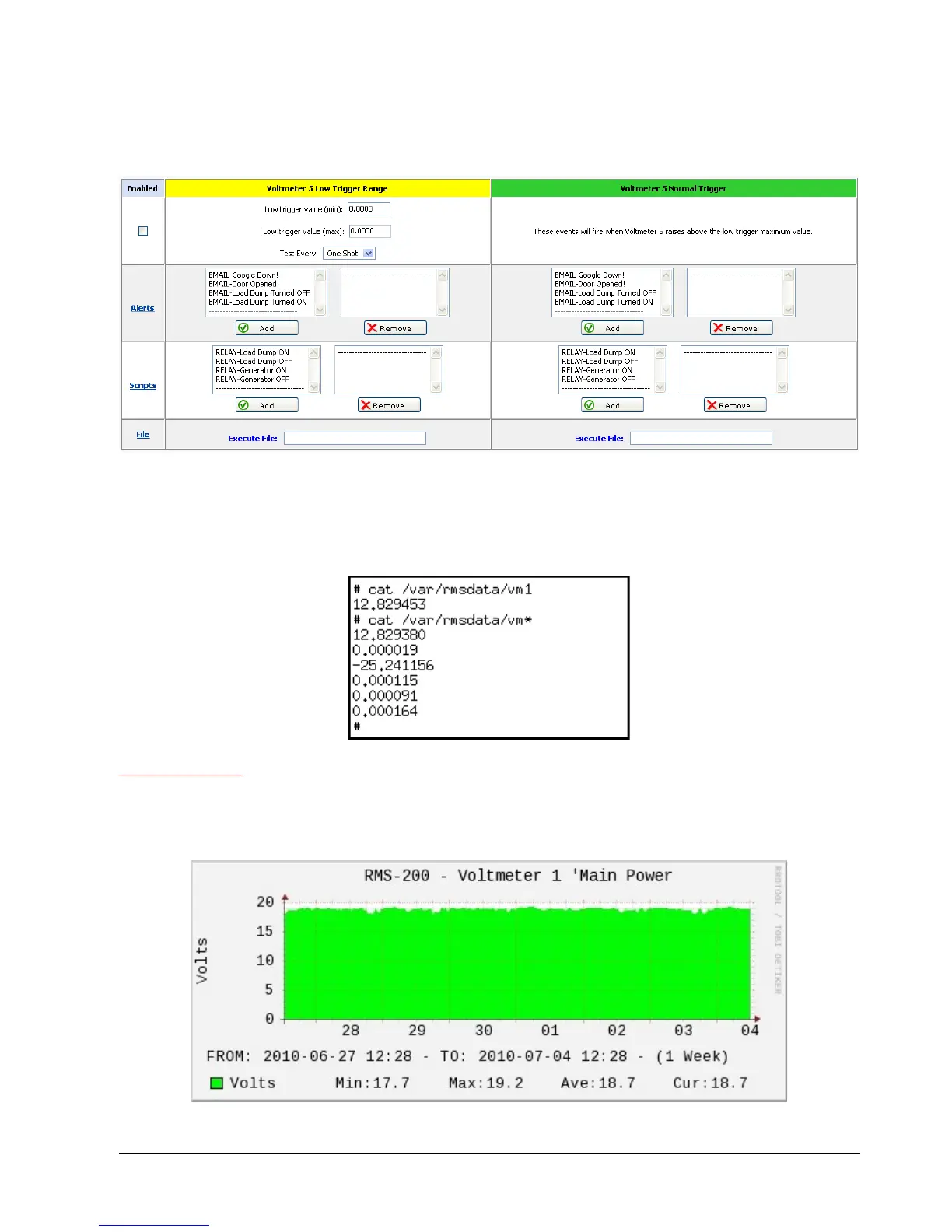

Below is the Low Trigger interface. The Low Trigger is used when the voltage falls below
the Low Trigger maximum value. The Normal Trigger is used when the voltage rises
above the Low Trigger minimum value.
Below is an example of reading the voltmeters on the command line. The voltmeter data
files can be found in the /var/rmsdata/ directory. Note: the voltmeter readings are stored
in files. Voltmeter 1's storage file is called vm1. Voltmeter 2's storage file is called vm2
etc.
Voltmeter Graphs
Each voltmeter has corresponding graphs associated with it. Below is a graph showing volts
over a 1 week period. Day, week, month, and year graphs are available.
