The I/O Pins and Push Buttons

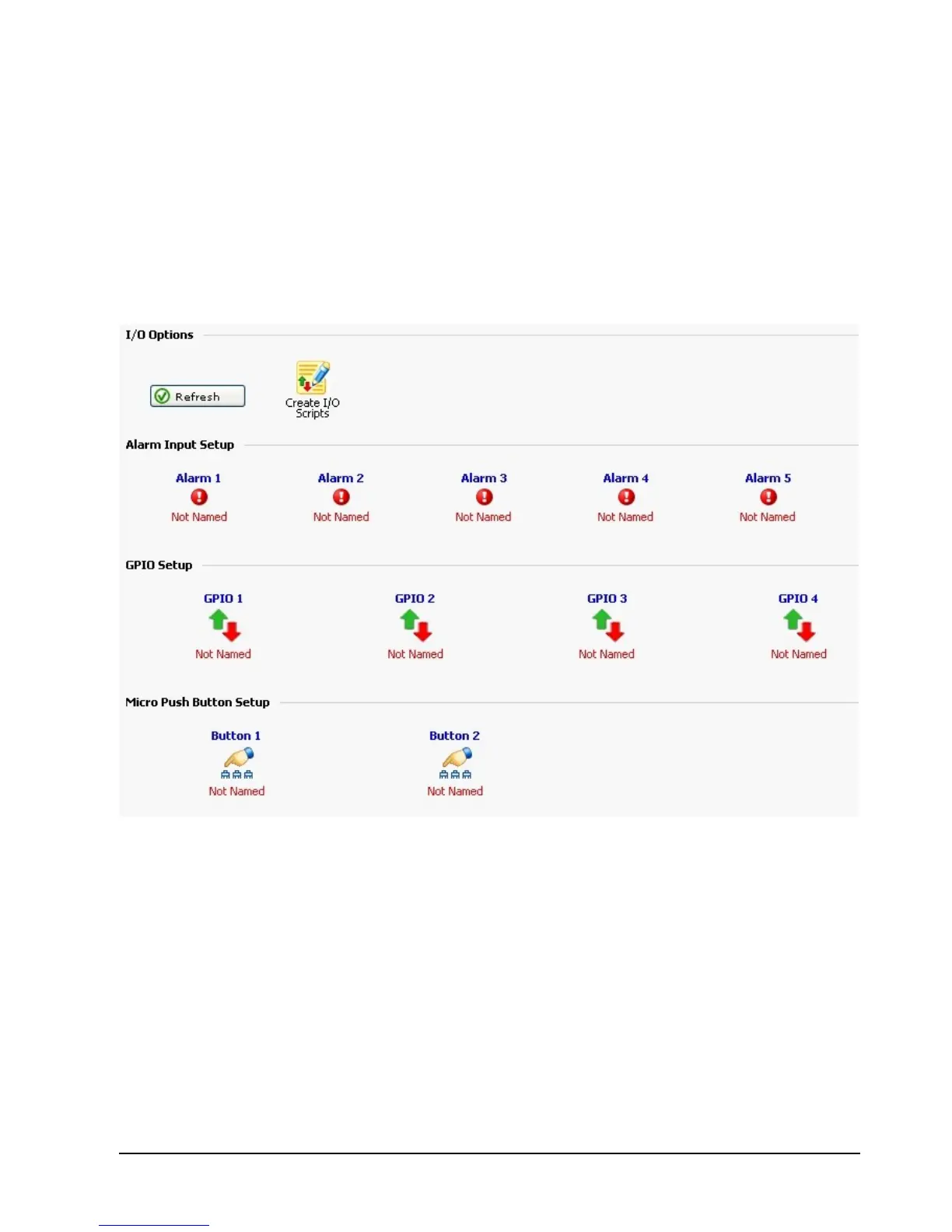

Below is a screen shot of the RMS-200 I/O overview page. Here you can choose which of the

boards Alarm or I/O pins to control. RMS-200 has 5 dedicated Alarm Pins that have a

corresponding LED. Use them with common door contacts to monitor entry points. RMS-200

also has 4 general purpose pins that can be set as Inputs or Outputs. These multi purpose I/O

pins can be controlled or read from either the web page interface or a command shell. RMS-

200 also has 2 micro push buttons that have special attributes when the RMS-200 board is

booting. After the RMS-200 board is finished booting these buttons are free for you to use for

controlling your devices.
