Electrical Connections
This unit must be hardwired directly to a
junction box on a dedicated circuit. ETS
recommends connection by a professional
electrician.
On the back of the bed, at the base of the
foot-end stand upright, is a power junction
box (see below). Connect the cable coming
out of the junction box to the receptacle on
the canopy as shown. Connect the cable
coming out of the canopy to the receptacle
on the bench.
Now remove the 3 screws holding the cover
plate on the junction box and remove the
plate. Inside is a connection bus for power.
You may wire the bed to either a 3-phase
circuit (3 wire plus ground) or single-phase

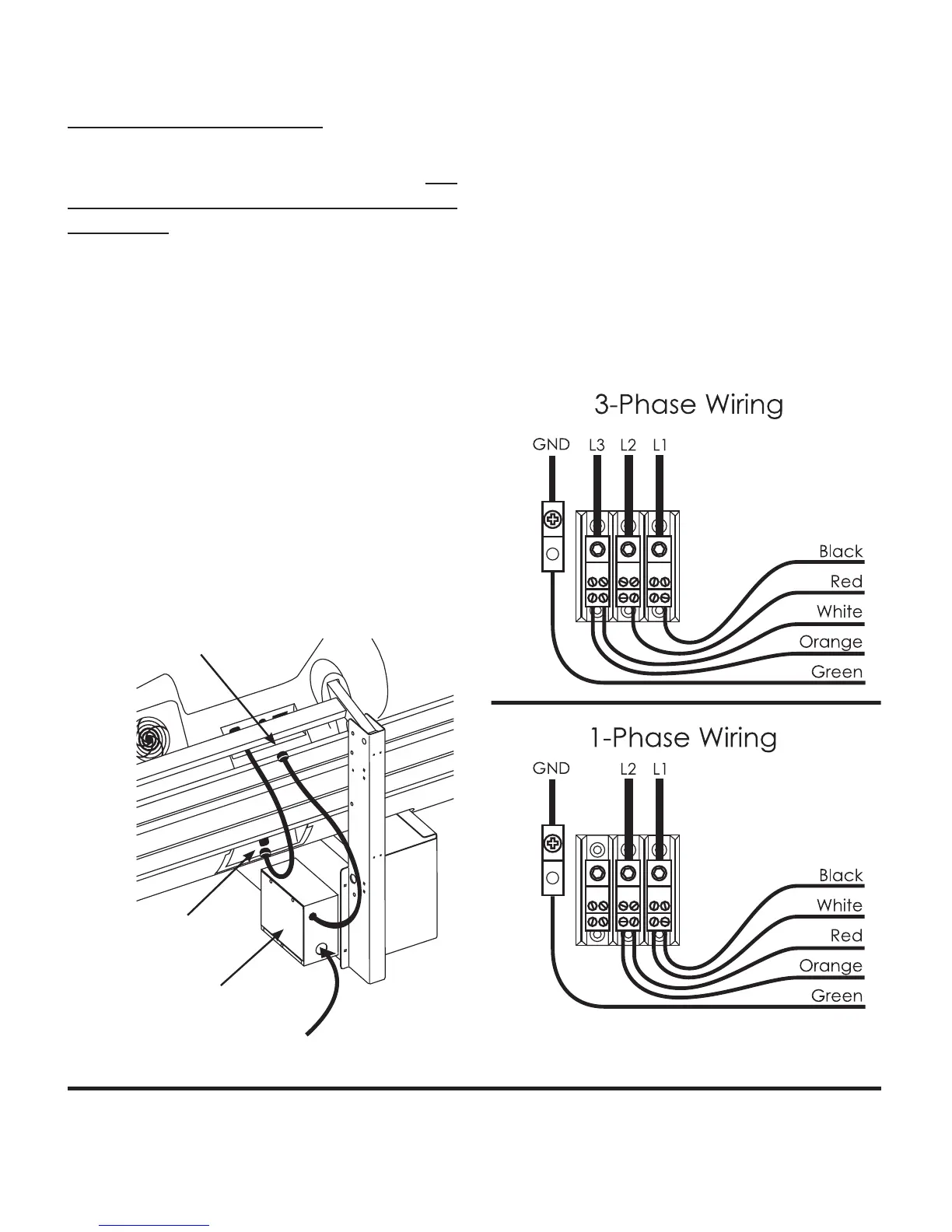

circuit (2 wire plus ground). Follow the dia-
gram at right for connection instructions.
Your sunbed arrives from the factory wired
for single-phase. To convert to 3-phase, sim-
ply disconnect the White and Orange wires
from the terminal block and connect to L3.
No power cord is supplied. The conduit fi t-
ting hole is sized for a 1” fi tting. Be sure to
provide a proper strain relief for the incom-
ing power line.
JUNCTION BOX
CONNECT TO CANOPY
CONNECT TO BENCH
INCOMING POWER
(CABLE NOT SUPPLIED)
