ETS e1 - Component Installation

8 - e1 Assembly and User Manual
30596-02A

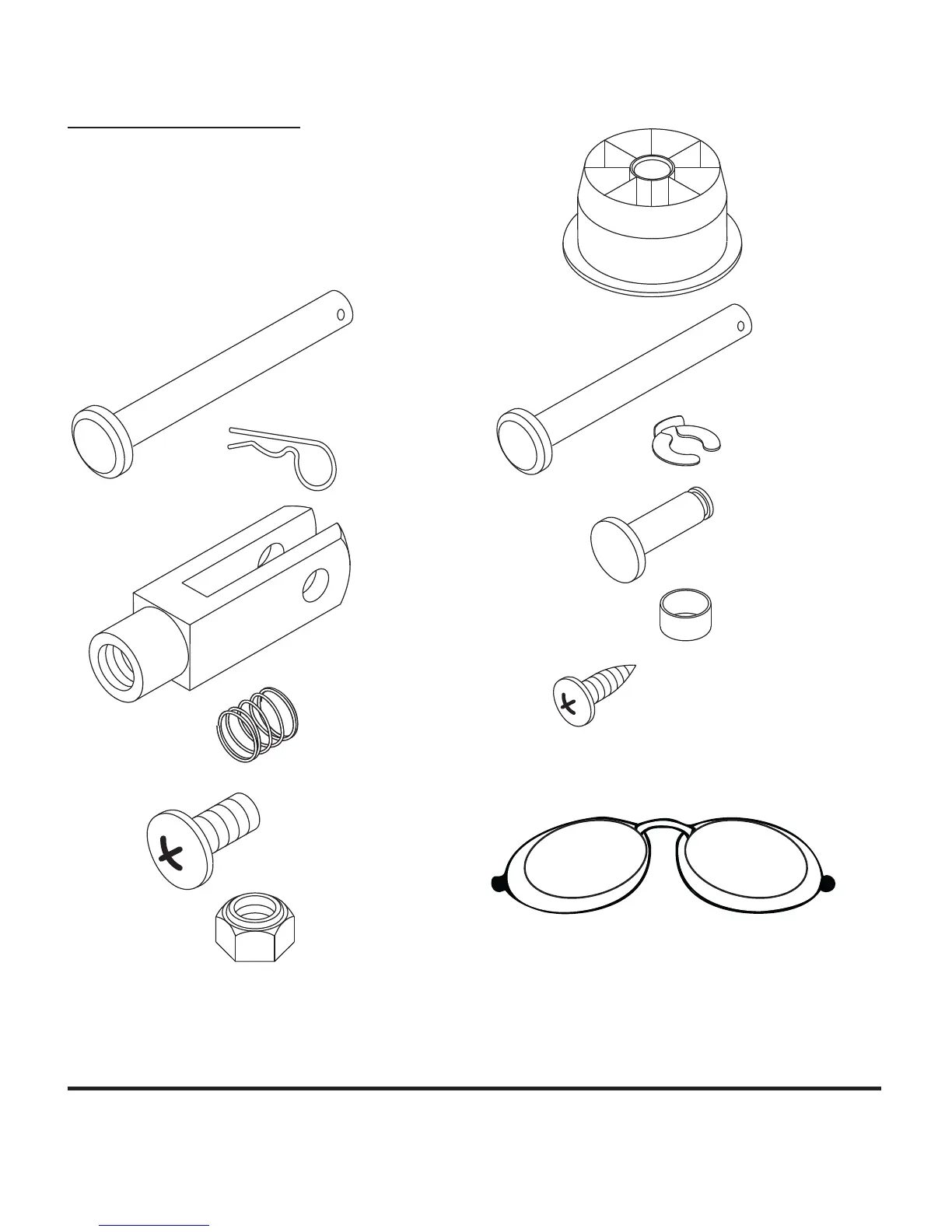

Hardware Inventory
Use the utility knife to cut open the hardware
bag. Remove the hardware. Make sure you have
the following items.
Clevis Pin
3/8” x 2 1/64”
Quantity 2
Bridge Pin
Quantity 4
Clevis Fork,
M10 Long
Quantity 4
Centering Spring
Quantity 4
1/4-20 x 1/2”
Machine Screw
Quantity 8
1/4-20 Locknut
Quantity 8
Nylon Floating
Bearing
Quantity 4
Clevis Pin
5/16” x 2 1/32”
Quantity 2
Retaining Ring
Quantity 2
10mm Clevis Pin
Quantity 2
Bronze Bushing
Quantity 2
#10 x 1/2” Screw,
Quantity 4
Safety Goggles
Quantity 1
