EUCHNER CES-AR-C01 Series User Manual

Operating Instructions
Non-Contact Safety Switch CES-AR-C01-…
14
(Translation of the original operating instructions) 2098039-20-02/20

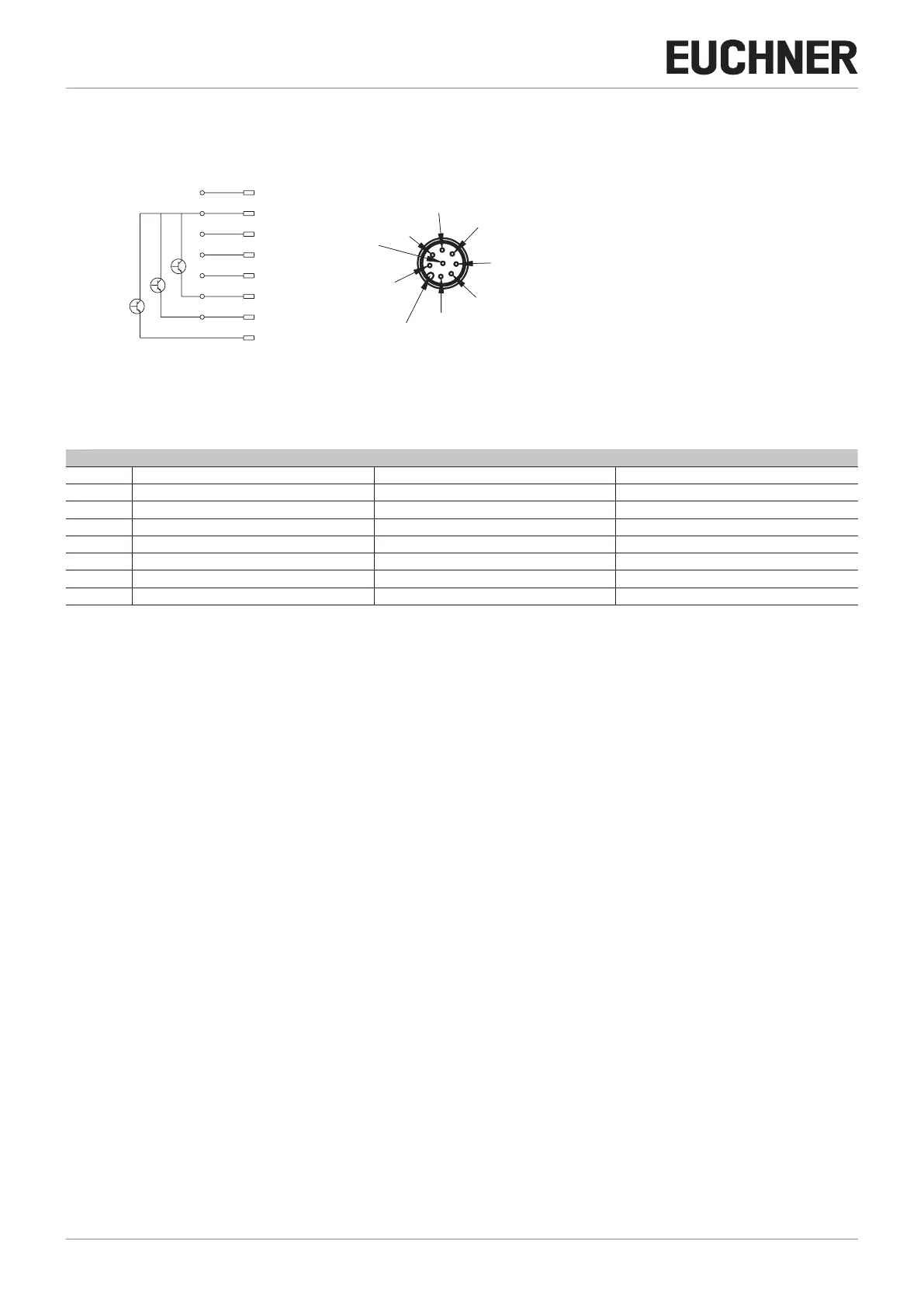

9.6. Connector assignment of safety switch CES-AR
1
7
6
5
4
3
2
8
8
2
7
6
1
3
4
5
UB
0V
IA
IB
OA
OB
OUT
RST
View of connection side on the safety switch
Coding lug
Figure 2: Connector assignment of safety switch CES-AR
Pin Designation Description Conductor coloring
1 IB Enable input for channel 2 WH
2 UB Power supply, DC 24 V BN
3 OA Safety output, channel 1 GN
4 OB Safety output, channel 2 YE
5
OUT
Monitoring output GY
6 IA
Enable input for channel 1
PK
7 0V Ground, DC 0 V BU
8 RST Reset input RD
