Operating Instructions
Non-Contact Safety Switch CES-AR-C01-…
8
(Translation of the original operating instructions) 2098039-20-02/20
7. Changing the approach direction
NOTICE
Risk of damage to equipment as a result of trapped cables or seals.
Ì Make sure that the cables or seals are not trapped or torn off when the approach direction is
changed.
Ì Make sure that the at seal is not trapped and that the prole seal is properly positioned in its
guide, otherwise the sealing function is no longer ensured.
The active face of the read head can be adjusted in 5 directions. It is marked by the
red face.
The plug connector can be realigned in 45° steps to change the direction of the cable
outlet (if elbow connectors are used).

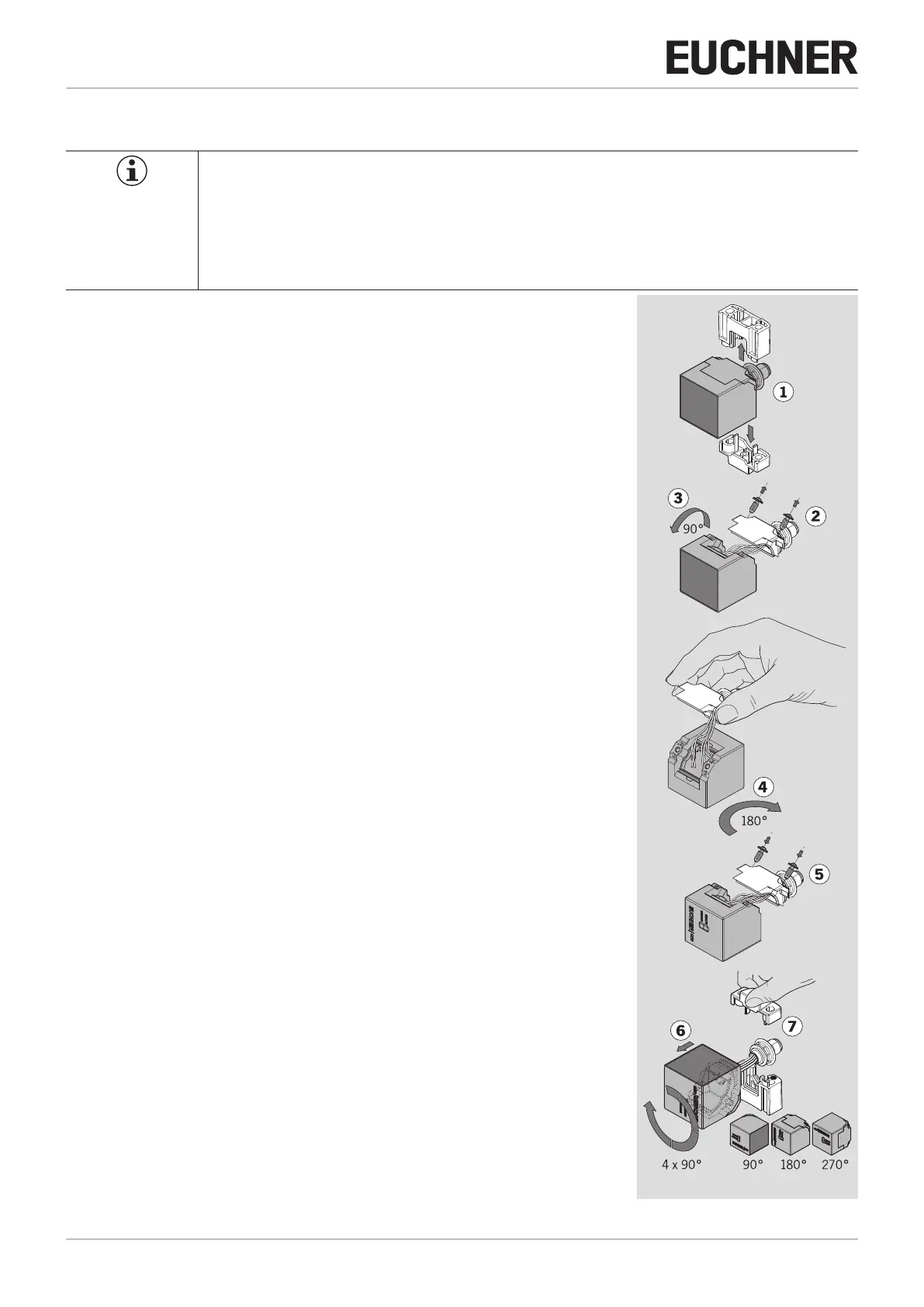

1. Remove the top part of the mounting base and push the bottom part of the mounting
base off the read head.
2. Unscrew the screws on the fastening bracket.
3. Undo the read head from the fastening bracket and tilt the read head forward by 90°.
¨ The active face is now pointing downward.
4. Hold the fastening bracket tight and turn the read head by 180°.
5. Re-tighten the screws for the read head on the fastening bracket. Tightening torque
0.6Nm.
6. Turn the read head in 90° steps until the desired approach direction is reached.
Change the alignment of the plug connector if necessary.
7. Push the read head onto the bottom part of the mounting base and re-assemble
the mounting base.
