EUCHNER CES-AR-C01 Series User Manual

33
2098039-20-02/20 (Translation of the original operating instructions)
Operating Instructions
Non-Contact Safety Switch CES-AR-C01-…
EN
12.5.3. Typical actuating range
(only in combination with actuator CES-A-BRN on surface mounting on metal)
5
20
25
30
35
Z
X
5
15
20
50
45
40
35
30
25
50
Y
-5
-10
-15
-20
-25
-30
-35
-40
-45
-50
-55
-60
-65
10
5
15
25
30
40
45
50
55
60
65
15
10
10
20
35
For a side approach direction for the actuator and read head, a minimum
distance of s = 6mm must be maintained so that the actuating range of the
side lobes is not entered.

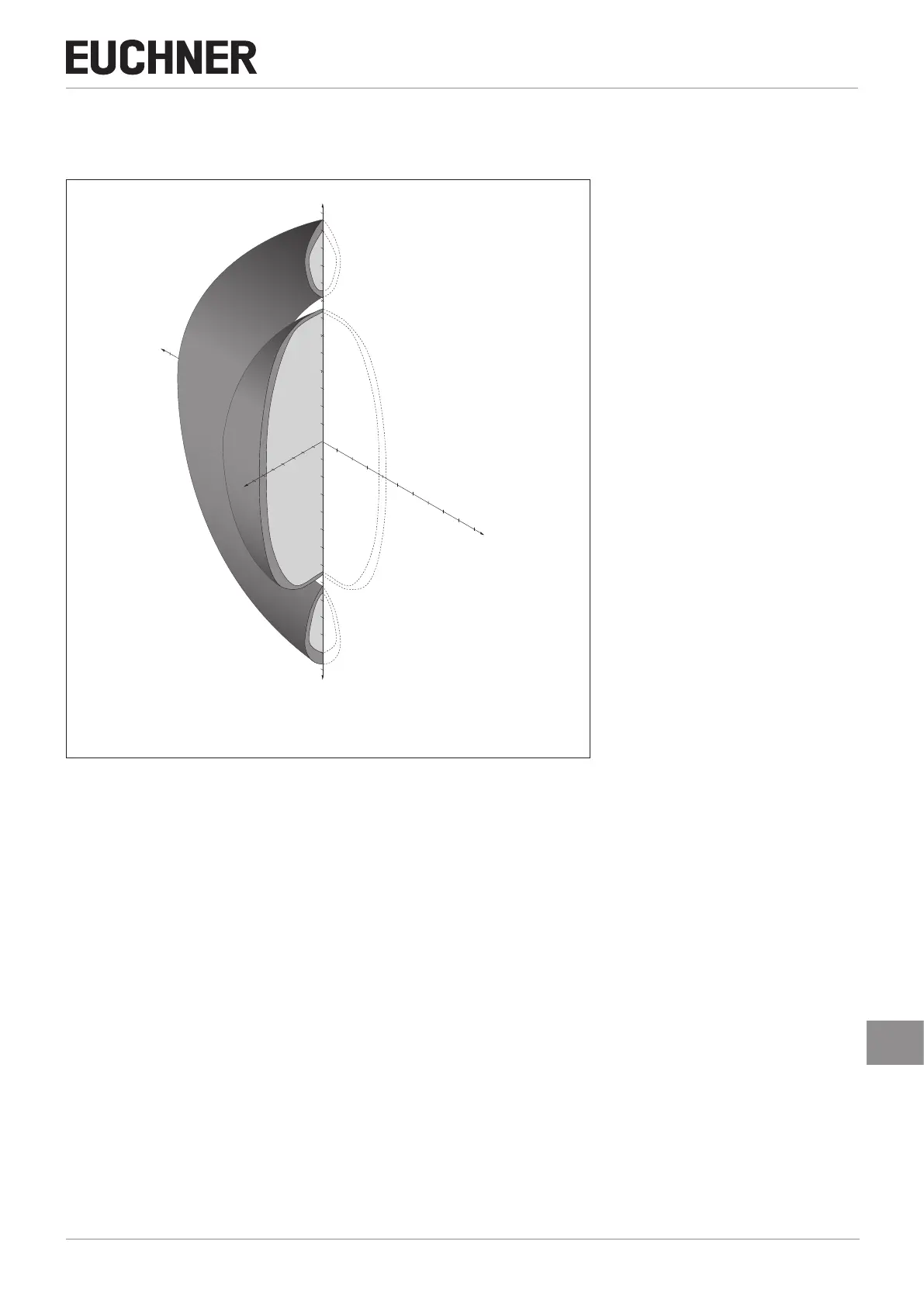

Figure 9: Typical actuating range
