EUCHNER CES-AR-C01 Series User Manual

Operating Instructions
Non-Contact Safety Switch CES-AR-C01-…
32
(Translation of the original operating instructions) 2098039-20-02/20
12.5. Technical data of actuator CES-A-BRN
Parameter Value Unit
min. typ. max.
Housing material PPS
Dimensions 80 x 40 x 15 mm
Weight
0.06
kg
Ambient temperature - 25 - + 70 °C
Degree of protection IP67
Installation orientation Active face opposite read head
Power supply Inductive via read head

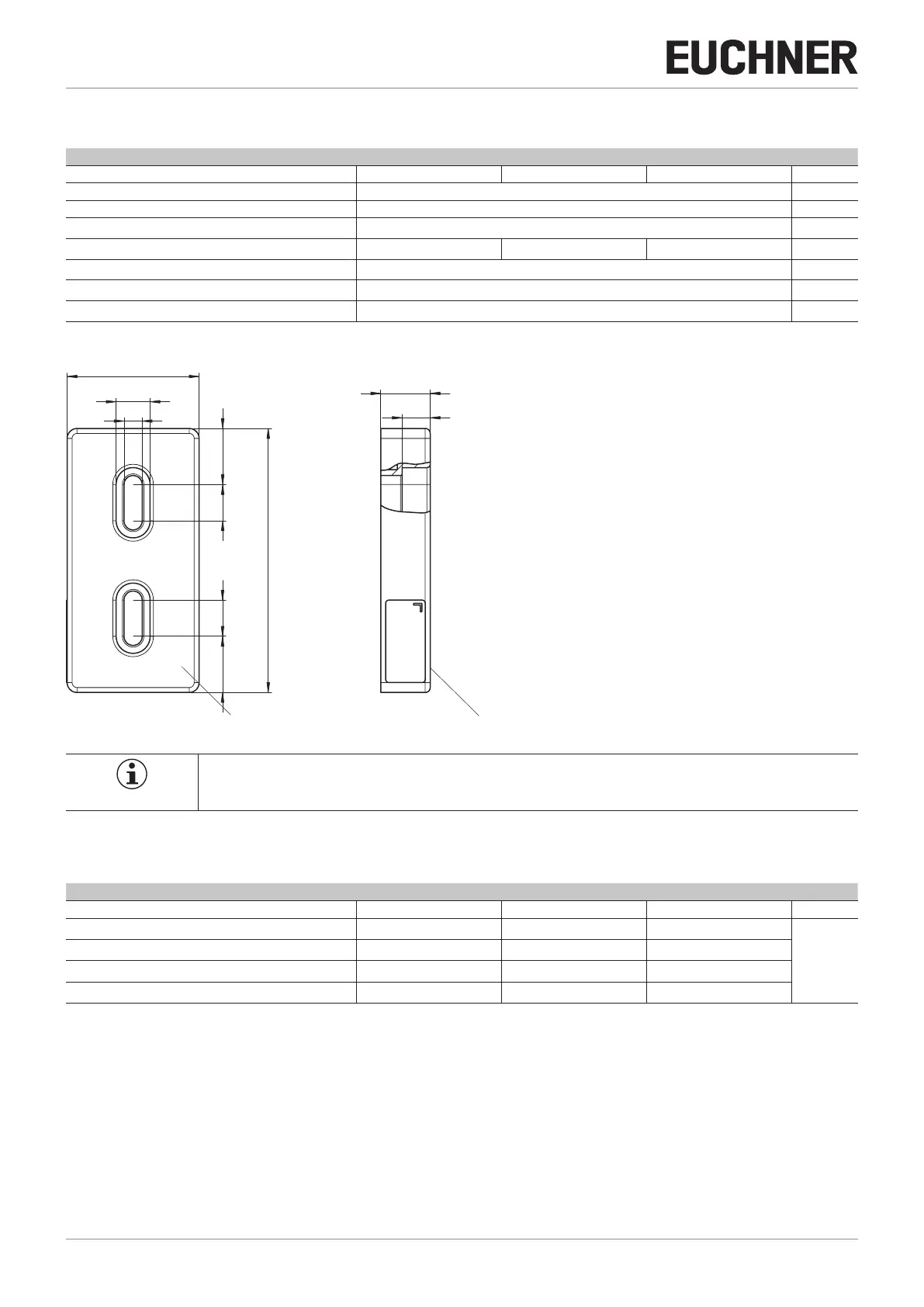

12.5.1. Dimension drawing
40
80
10,3
5,5
1711
17 11
15
8,5
Active face
Active face
NOTICE
2 safety screws M5x16 included.
12.5.2. Operating distances
Actuating range for center offset m = 0
1)
Parameter Value Unit
min. typ. max.
Operating distance
- 27 -
mm
Assured operating distance s
ao
20 - -
Switching hysteresis
- 3 -
Assured release distance s
ar
- - 75
2)
1) The values apply to surface mounting of the actuator on metal.
2) The assured release distance applies only in the X and Z directions.
