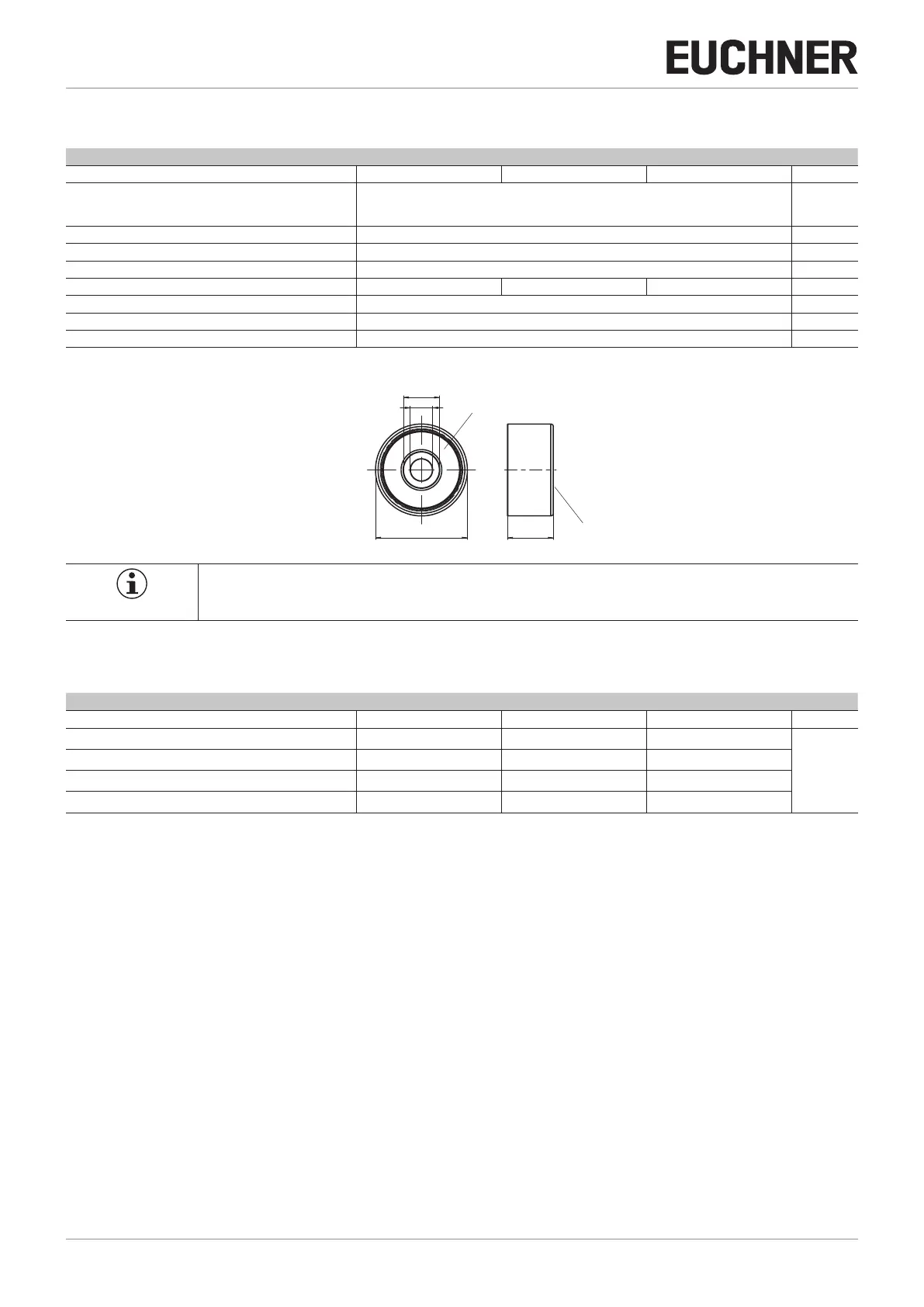

12.3. Technical data of actuator CES-A-BDA-18
Parameter Value Unit
min. typ. max.
Housing material
- Sleeve
- Active face
PBT-GF30, thermoplastic plastic
PEEK 450, thermoplastic plastic
Fixing screw tightening torque 2 Nm
Dimensions ∅ 18 x 9 mm
Weight
0.003 kg
Ambient temperature -25 - +70 °C
Degree of protection IP65/IP67
Installation orientation Active face opposite read head
Power supply Inductive via read head
12.3.1. Dimension drawing
∅ 18
9
∅ 4,4
∅ 7
Active face
Active face
NOTICE
1 safety screw M4x14 included.
12.3.2. Operating distances
Actuating range for center offset m = 0
1)
Parameter Value Unit
min. typ. max.
Operating distance
- 19 -
mm
Assured operating distance s
ao
10 - -
Switching hysteresis
1 3 -
Assured release distance s
ar
-
- 45
1) The values apply to surface mounting of the actuator on metal.
