EUCHNER CES-AR-C01 Series User Manual

Operating Instructions
Non-Contact Safety Switch CES-AR-C01-…
30
(Translation of the original operating instructions) 2098039-20-02/20
12.4. Technical data of actuator CES-A-BPA
Parameter Value Unit
min. typ. max.
Housing material PBT
Dimensions 40 x 40 x 10 mm
Weight
0.025
kg
Ambient temperature - 25 - + 70 °C
Degree of protection IP65/IP67/IP69/IP69K
Installation orientation Active face opposite read head
Power supply Inductive via read head

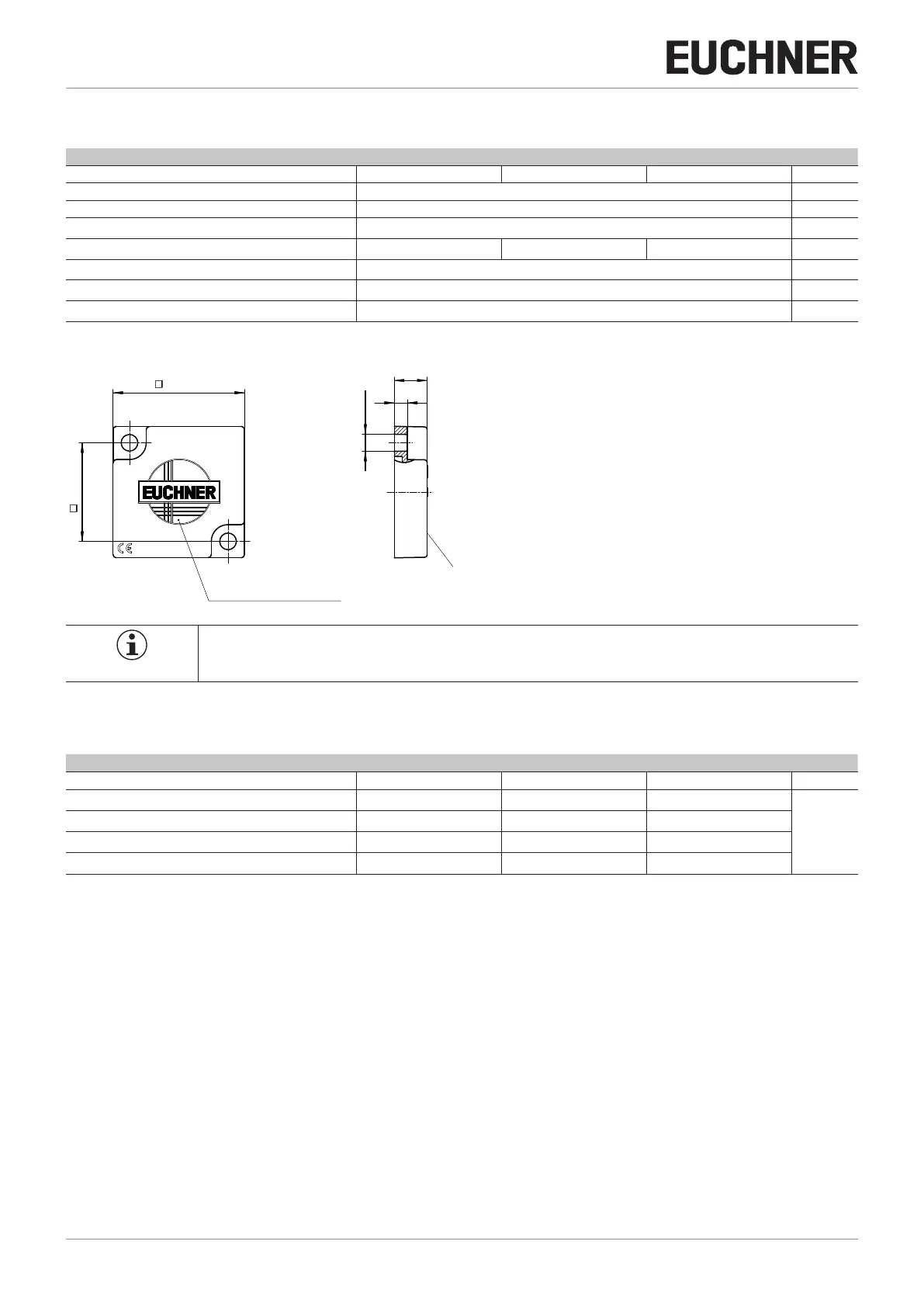

12.4.1. Dimension drawing
30
±0,1
40
- 0,25
0
CES-A-BPA-098775
IP67
CD
10
4
Ø 5,2
Active face
Active face
NOTICE
2 safety screws M5x10 included.
12.4.2. Operating distances
Actuating range for center offset m = 0
1)
Parameter Value Unit
min. typ. max.
Operating distance
- 22 -
mm
Assured operating distance s
ao
18 - -
Switching hysteresis
1 2 -
Assured release distance s
ar
- - 58
1) The values apply to surface mounting of the actuator on metal.
