EUCHNER CES-AR-C01 Series - Typical Actuating Range

31
2098039-20-02/20 (Translation of the original operating instructions)
Operating Instructions
Non-Contact Safety Switch CES-AR-C01-…
EN
12.4.3. Typical actuating range
(only in combination with actuator CES-A-BPA on surface mounting)
45
40
35
30
25
20
15
10
-45
5
Z
Y
X
5
10
15
20
25
30
35
40
45
45
40
-45
35
30
25
20
15
10
5
For a side approach direction for the actuator and read head, a minimum
distance of s = 6mm must be maintained so that the actuating range of the
side lobes is not entered.

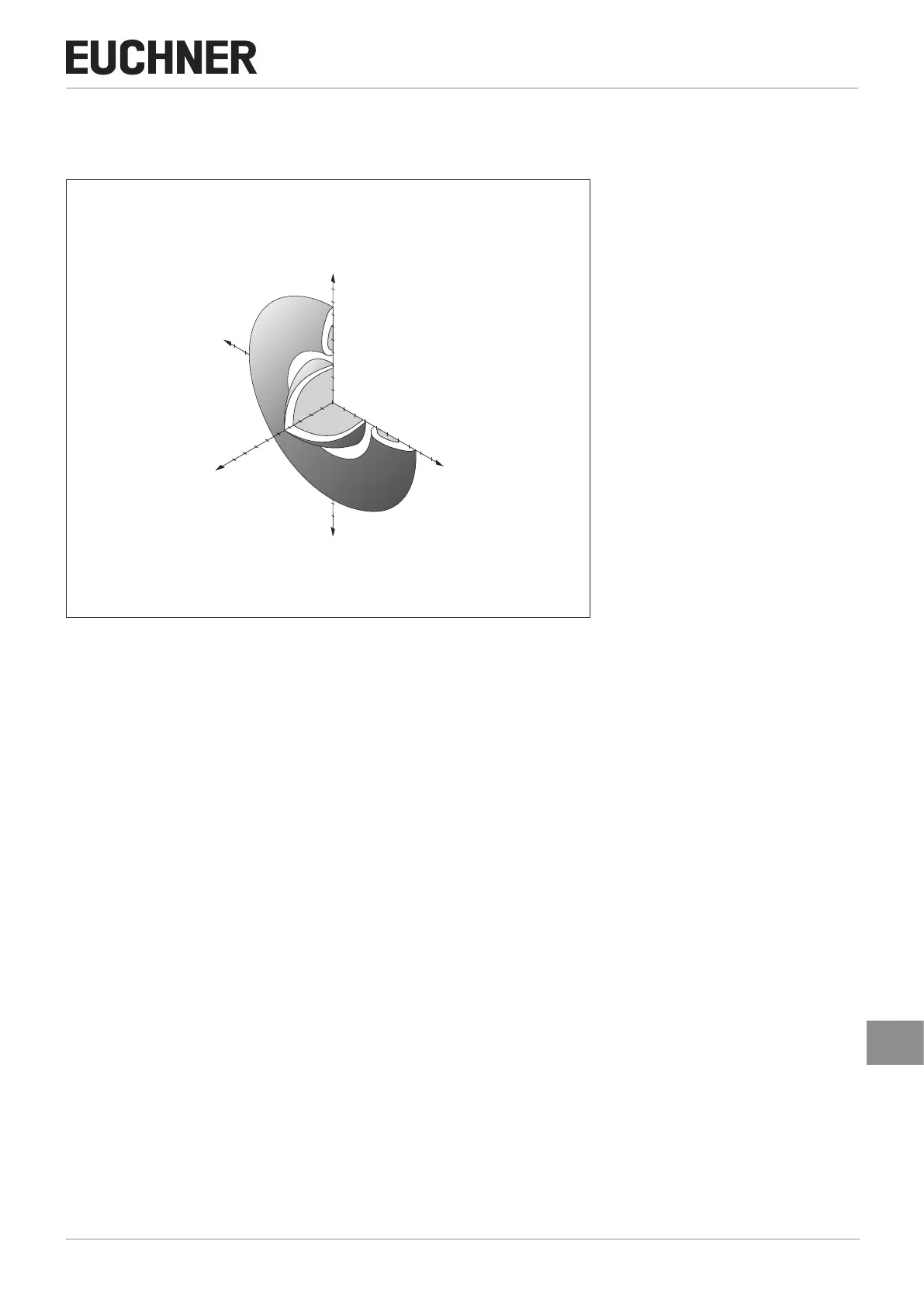

Figure 8: Typical actuating range
