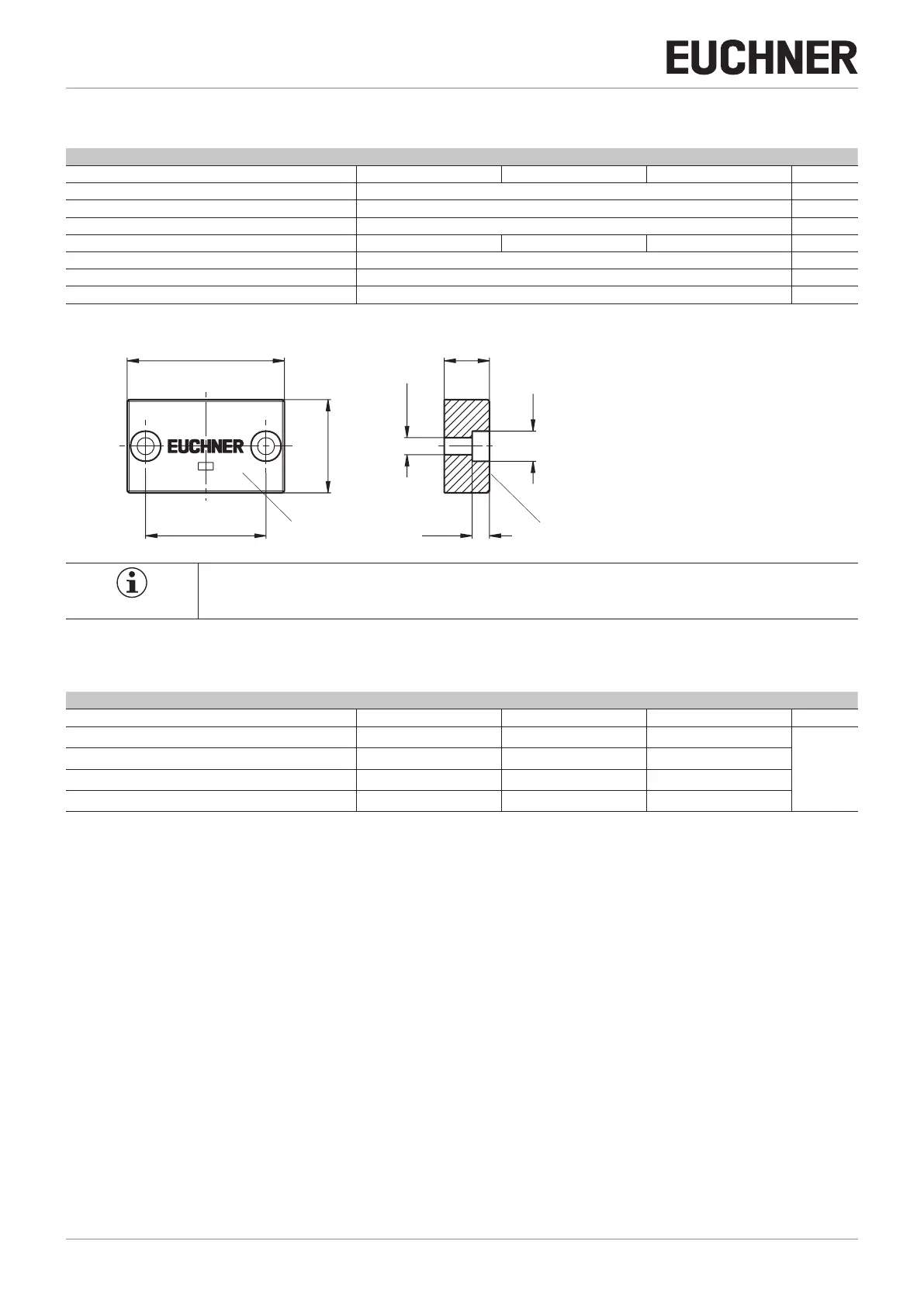

12.2. Technical data of actuator CES-A-BBA
Parameter Value Unit
min. typ. max.
Housing material Plastic (PPS)
Dimensions 42 x 25 x 12 mm
Weight 0.02 kg
Ambient temperature -25 - +70 °C
Degree of protection IP65/IP67/IP69/IP69K
Installation orientation Active face opposite read head
Power supply Inductive via read head
12.2.1. Dimension drawing
CES-A-B 071840
25
ø8
ø4,5
42
32
±0,1
12
4,6
Active face
Active face
NOTICE
2 safety screws M4x14 included.
12.2.2. Operating distances
Actuating range for center offset m = 0
1)
Parameter Value Unit
min. typ. max.
Operating distance
- 18 -
mm
Assured operating distance s
ao
15 - -
Switching hysteresis
1 3 -
Assured release distance s
ar
- - 45
1) The values apply to surface mounting of the actuator on metal.
