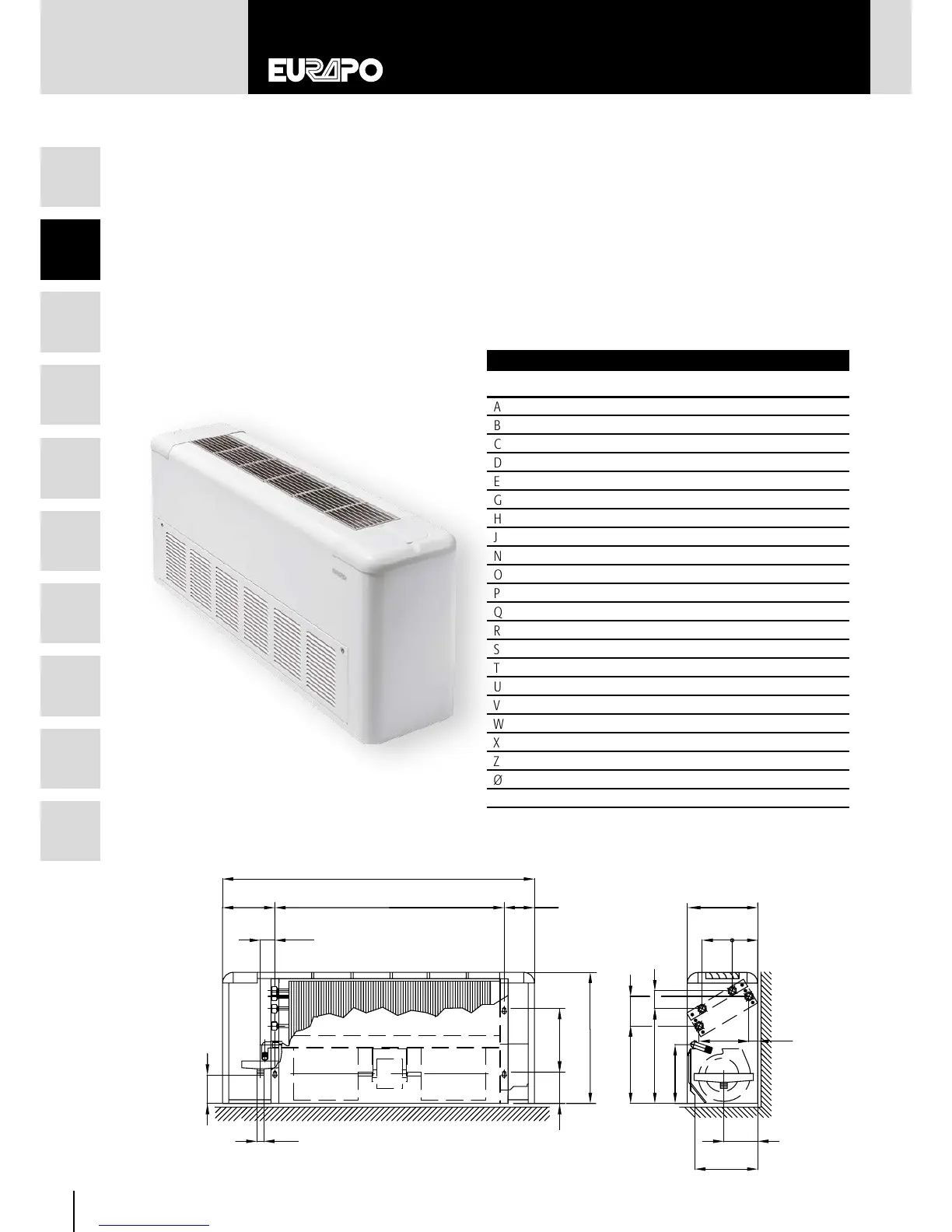

SVR MODEL
SVR Dimensions and weights
Size 110
112 114 216 218
A 648 773 898 1023 1148
B 374 499 624 749 874
C 254 254 254 254 254
D 174 174 174 174 174
E 100 100 100 100 100
G 170 170 170 170 170
H 101 101 101 101 101
J 430 430 430 430 430
N 245 245 245 245 245
O 154 154 154 154 154
P 31 31 31 31 31
Q 47 47 47 47 47
R 304 304 304 304 304
S 88 88 88 88 88
T 87 87 87 87 87
U 65 65 65 65 65
V 47 47 47 47 47
W 84 84 84 84 84
X 214 214 214 214 214
Z 109 109 109 109 109
Ø 20 20 20 20 20
kg 15 17 22 23 26
T
P0
Y
Z
U
V
ø
B
S
H
J
G
X
Q
R
N
W
C
D E
A
2.5 LOW BODY SERIE:
SVR MODEL
Vertical unit in a reduced height (430 mm) with upper air outlet and frontal air intake, to be installed on the floor.
grilles can be adjusted in all four directions and are made of heat-resistant ABS
model equipped with auxiliary drain pan
2 pipe systems: 2 or 3 row coils; on 2 row coil units an electric heater can also be mounted
4 pipe systems: additional 1 row coil can be added to units with a 2 or 3 row coil
standard colour: white casing (RAL 9003) with white grilles and access doors (RAL 9016)
