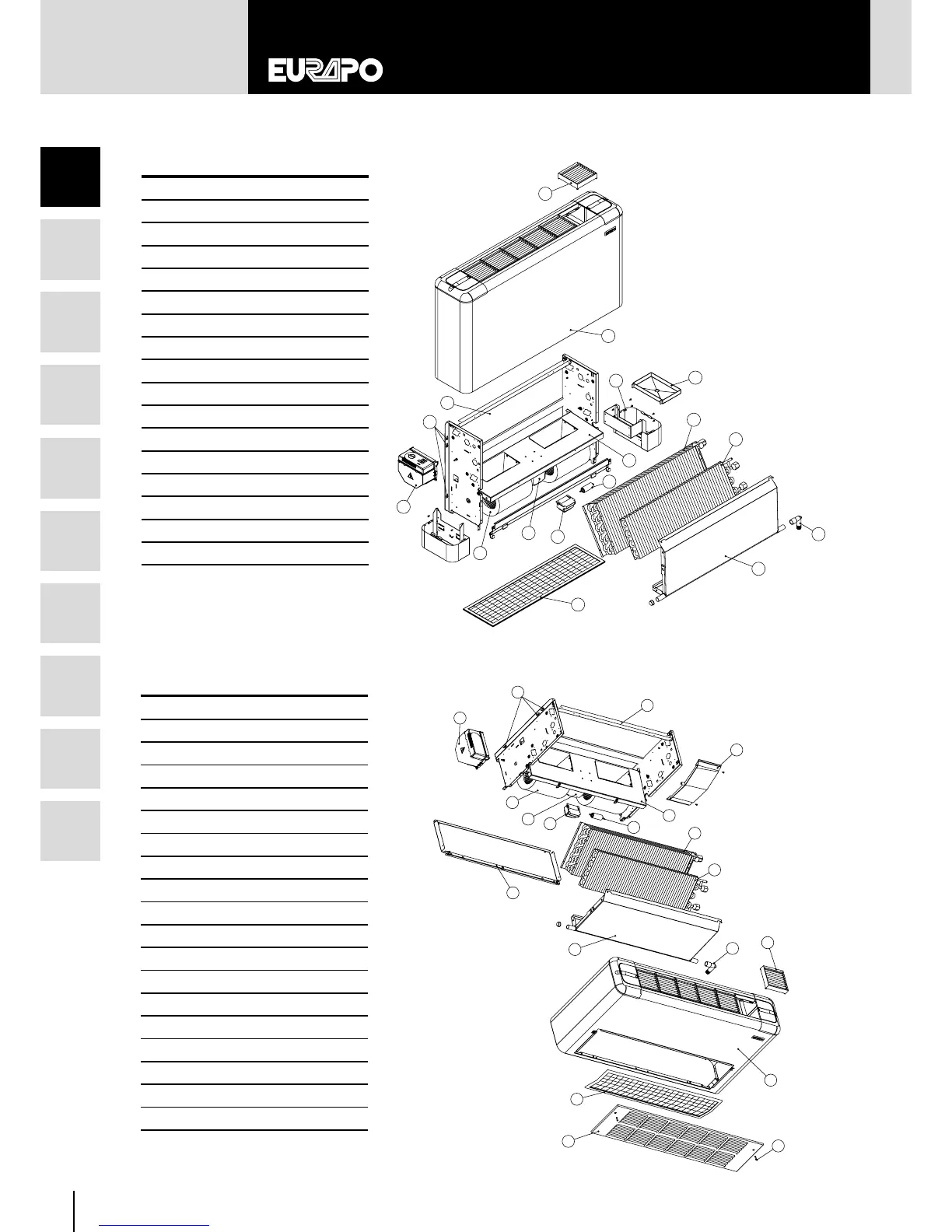

Eurapo Prisma PV - Exploded View SV and SH;AF

6
1
2
3
4
5
6
7
8
9
10
LEGEND
1. Internal structure
2. Fan deck
3. Electric motor
4. Scroll and impeller
5. Autotransformer
6. Capacitor
7. Electric panel
8. Standard coil (2, 3 or 4 rows)
9. Additional coil
10. Condensate tray
11. Auxiliary drain pan (vertical)
12. Water discharge plastic pipe
13. Grilles
14. Housing
15. Filter
16. Set of feet
17. Fixing slots
SV MODEL
LEGEND
1. Internal structure
2. Fan deck
3. Electric motor
4. Scroll and impeller
5. Autotransformer
6. Capacitor
7. Electric panel
8. Standard coil (2, 3 or 4 rows)
9. Additional coil
10. Condensate tray
11. Auxiliary drain pan (horizontal)
12. Water discharge plastic pipe
13. Grilles
14. Housing
15. Filter
16. Air intake panel
17. Fixing screws
18. Back inner panel
19. Fixing slots
SH/AF MODEL
13
14
11
9
8
16
12
10
15
15
16
17
14
12
13
10
18
8
8
2
6
5
3
4
7
19
1
11
3
5
4
6
2
1
17
7
