7. OTHER ACCESSORIES
7.1 CP – SET OF FEET
Set of painted steel feet, each of them composed by two elements: a bearing element fixed to the inner frame, on which the
unit leans, and a visible element fixed to the previous one. They are designed to cover the water connections and the electric
cables.
• Height: 85 mm
• Colour: RAL 9003 (white) for both Sigma and Prisma series
7.2 ZL – LONG SOCLE WITH FEET
Painted steel socle consisting of a set of feet (CP) and a frontal grill. It is designed to cover a vertical external air intake or other
accessories.
• Height: 85 mm
• Colour: RAL 9003 (white) for both Sigma and Prisma series
7.3 PPV – VERTICAL BACK PANEL
It is a back panel made of steel painted in the same colour as the casing. It is mounted on vertical units with housing when
the back side of the unit is in view.
7.4 PPH – HORIZONTAL BACK PANEL
It is a back panel made of steel painted in the same colour as the casing. It is mounted on horizontal units with housing when
the back side of the unit is in view.
7.5 PAE/V – VERTICAL EXTERNAL AIR INTAKE WITH MANUAL DAMPER
PAE/V is a vertical external air intake with supporting feet and manual damper.
All the elements are made of painted steel, in the same colour as the casing. The manual air damper provides the unit with a mixture
of return air and outside air. An air intake at the rear of the fan coil must be foreseen to provide fresh outside air.
• Mixture rate: 0/100%
• Height: 85 mm
• Colour: RAL 9003 (white) for both Sigma and Prisma series

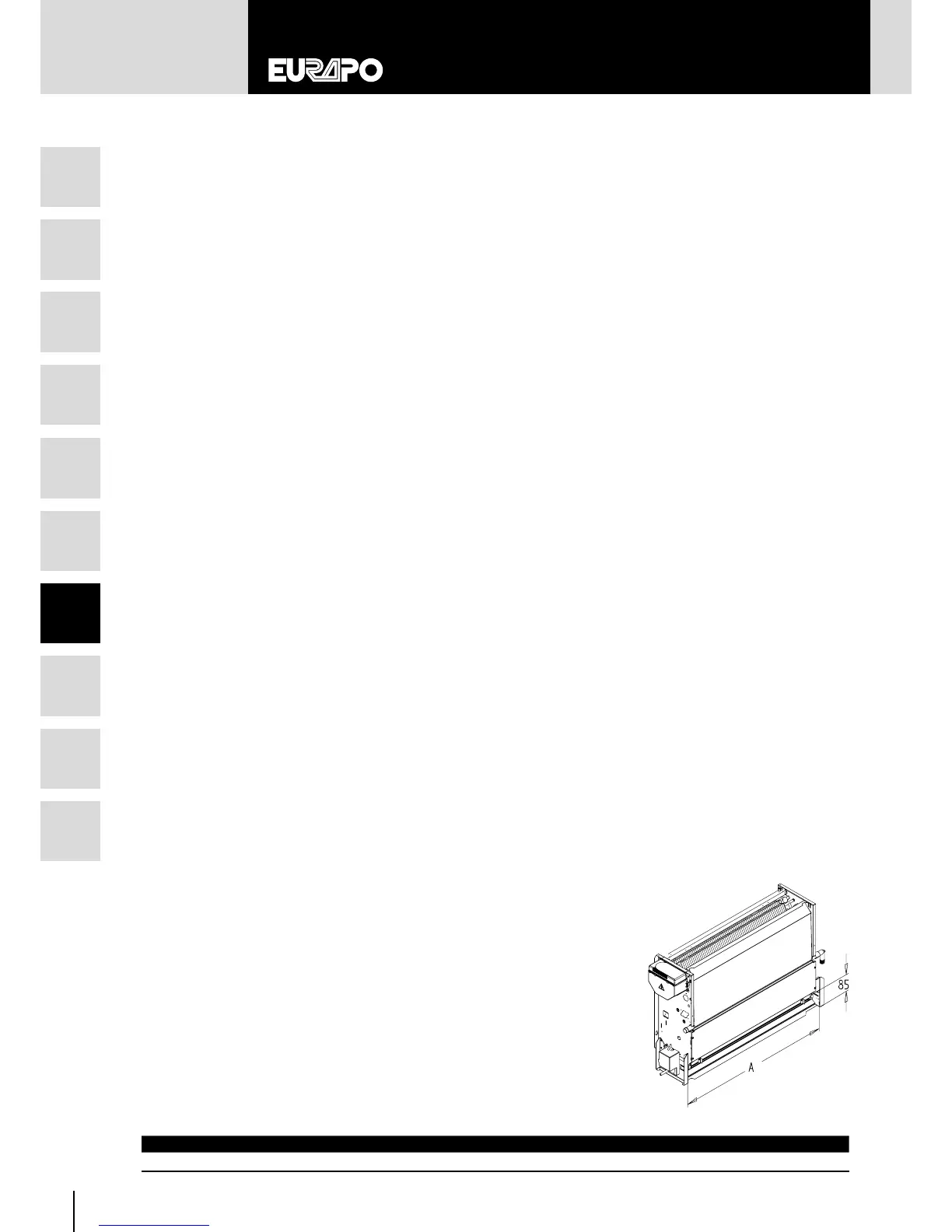

7.6 PAE/VM – VERTICAL EXTERNAL AIR INTAKE WITH
MOTORIZED DAMPER
PAE/VM is a vertical external air intake with supporting feet and motorized damper.
All the elements are made of painted steel. The motorized air damper is regulated by
a servomotor and provides the unit with a mixture of return air and outside air. The
servomotor operating mode depends on the required working conditions. An air intake
at the rear of the fan coil must be foreseen to provide fresh outside air.
• Mixture rate: 0/100%
• Height: 85 mm
• Colour: RAL 9003 (white) for both Sigma and Prisma series
• Servomotor regulation: ON/OFF (code LM230), ON/OFF with
spring return (code LF230) or modulating with a proper controller (code LM24)
SIZE 110 112 114 216 218 220 222 224 226 328
A mm 424 549 674 799 924 1049 1049 1174 1174 1299
