SIZE 110 112 114 216 218 220 222 224 226 328
A mm
351 476 601 726 851 976 976 1226 1226 1476
B mm
176 176 176 176 176 206 206 206 206 206
C mm
176 176 176 176 176 206 206 206 206 206
SIZE 110 112 114 216 218 220 222 224 226 328
A mm 351 476 601 726 851 976 976 1226 1226 1476
B mm 176 176 176 176 176 206 206 206 206 206
C mm 176 176 176 176 176 206 206 206 206 206
O

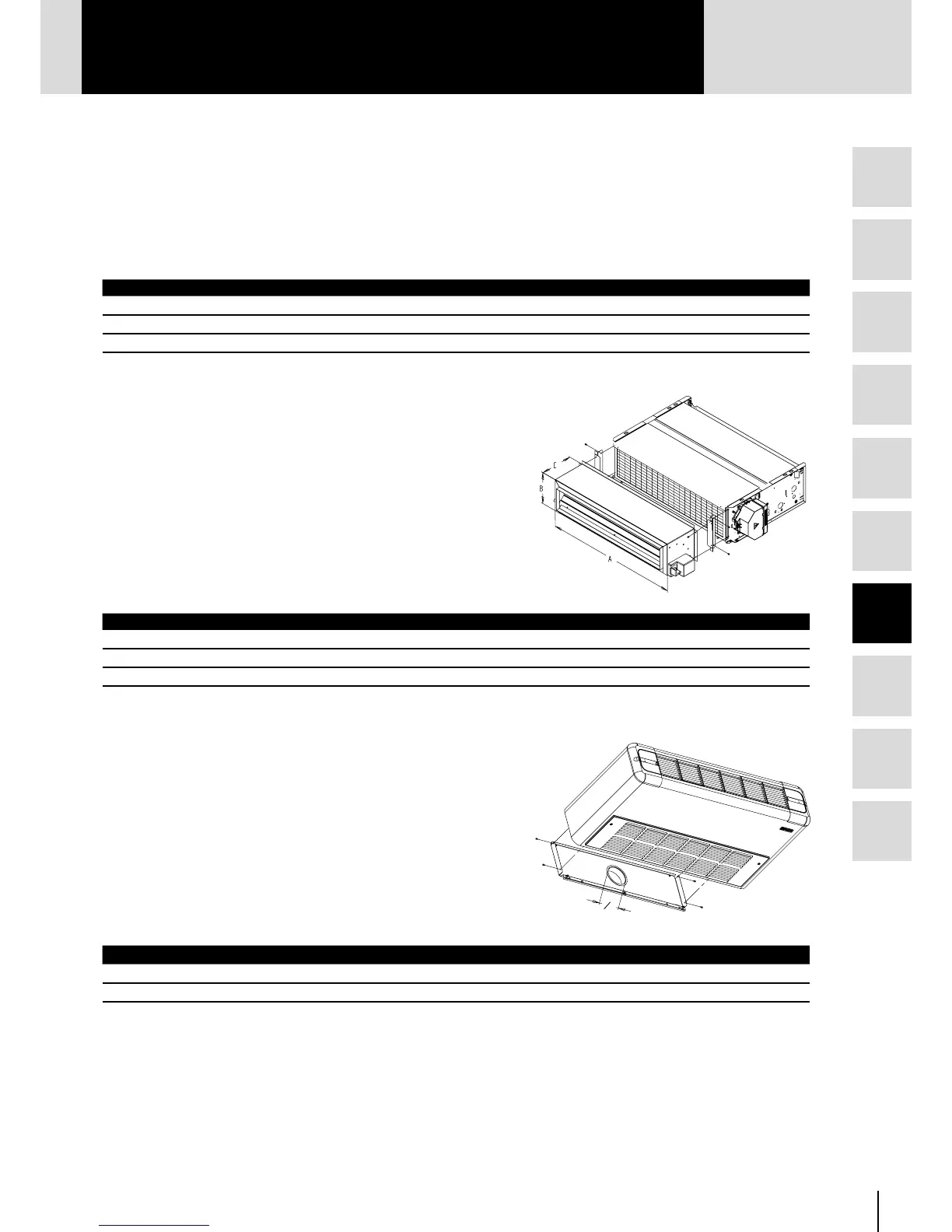

7.7 PAE/H – HORIZONTAL EXTERNAL AIR INTAKE WITH MANUAL DAMPER
Air suction plenum made of galvanized steel sheet, provided with a rectangular collar for the connection to the external air
intake. It is mounted on the air intake of the unit, between the external air intake and the filter, which remains accessible for
maintenance. A lever located on the side of the unit can operate the manual damper.
7.8 PAE/HM – HORIZONTAL EXTERNAL AIR INTAKE
WITH MOTORIZED DAMPER
Air suction plenum made of galvanized steel sheet, provided with
a rectangular collar for the connection to the external air intake. It is
mounted on the air intake of the unit, between the external air intake and
the filter, which remains accessible for maintenance. A servomotor can
operate the damper: ON/OFF (code LM230), ON/OFF with spring return
(code LF230) or modulating with a proper controller (code LM24).
7.9 PAE/HAF – HORIZONTAL EXTERNAL AIR INTAKE
(FOR HORIZONTAL UNITS WITH BOTTOM AIR INTAKE)
This external air intake is made of galvanized steel and is installed on the
back side of horizontal units with bottom air intake. It is provided with a
collar to be located in a hole on the wall, which allows the entrance of
outside air.
• Collar diameter of units 110÷218: 100 mm
• Collar diameter of units 220÷328: 150 mm
SIZE 110 112 114 216 218 220 222 224 226 328
No. of spigots 1 1 1 1 1 1 1 1 1 1
Spigots external Ø mm
100 100 100 100 100 150 150 150 150 150
