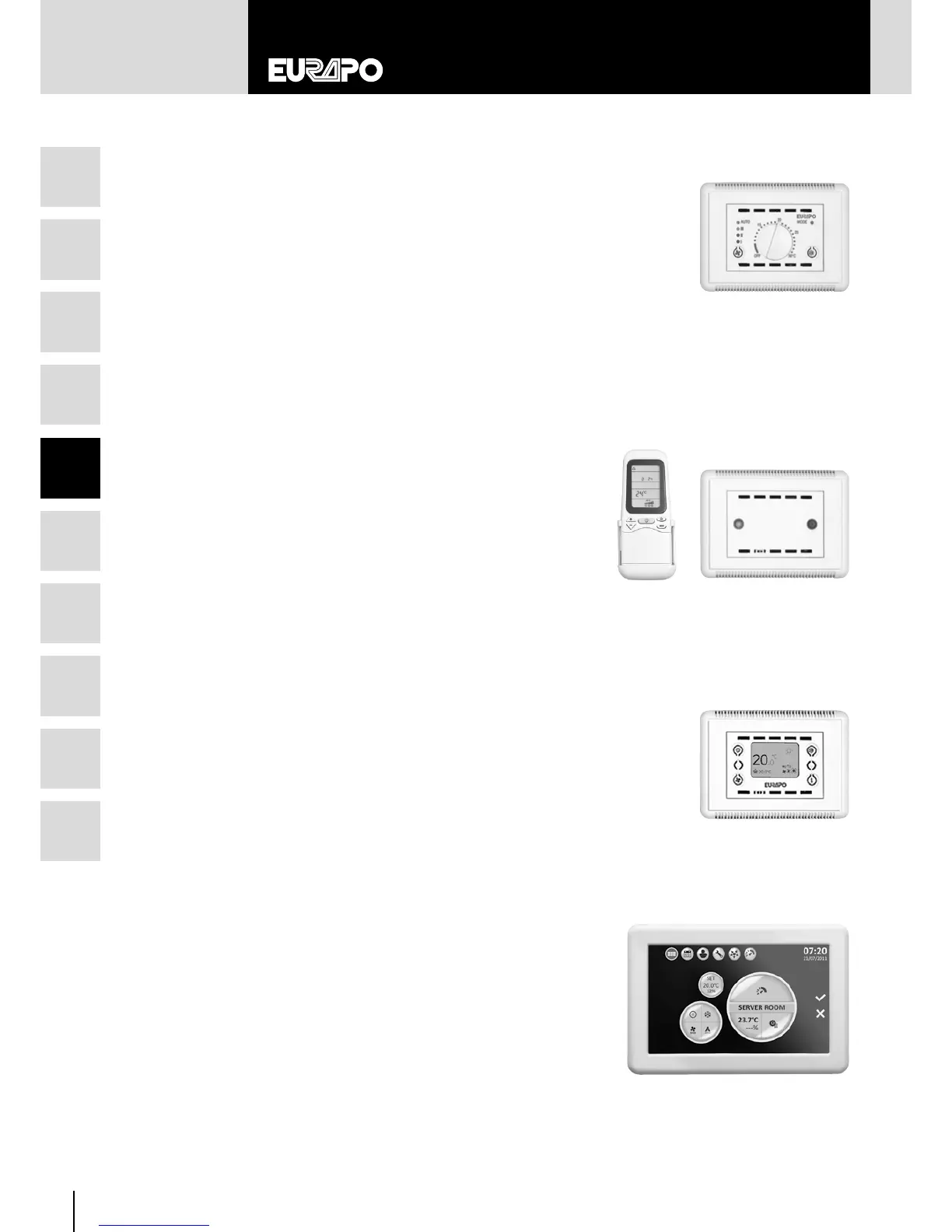

5.9.3 ANALOGUE PLUS CONSOLE – OC736
The Console is connected to the Power Omnibus card by a phone cable (4 wires), from which
it is energized (15 Vcc) and it receives information from the Local-bus network.
The Analogue Plus Console is composed by:
• One LED showing the operating mode and operating status of the
Power Omnibus card
• Four LEDs to visualize the fan speed status and warnings, in case
• Two buttons: one for setting the operating mode of the terminal unit
(Cooling/Heating) and one for the selection of the fan speeds
• Room temperature sensor
• One knob for setting the room temperature set-point value and OFF position
5.9.4 INFRARED RECEIVER (OC516) AND REMOTE CONTROL (OIR30)
The end user has the possibility to regulate the fan coil unit through the Infrared
remote control (OIR30). The IR receiver is connected to the Power Omnibus
card by a flat phone cable from which it takes the power supply (15 Vcc) and
by which it exchanges information on the RS485 “Local bus” network. The IR
console has a built-in air sensor and one LED showing the Status of the unit,
in particular:
• fixed green: cooling mode
• fixed red: heating mode
• flashing yellow: alarm or warning status
5.10 OMNIBUS SUPERVISION
5.10.1 MANAGER CONSOLE - OC436 (up to 10 units)
• Modbus/RTU protocol
• Different access levels (user/service/factory)
• Centralized operation
• Set-up parameters configuration
• INPUT/OUTPUT status monitoring
• Daily and weekly program
• Alarms management
5.10.2. OTOUCH - OCB30 (up to 100 units)
• Modbus/RTU protocol
• Different access levels (user/supervisor/service)
• Centralized operation
• Set-up parameters configuration
• INPUT/OUTPUT status monitoring
• Daily and weekly program
• Alarms management
• 7 inches touch screen
• Optional modem for remote management via GSM
• LAN interface with TCP/IP protocol
• Suitable for the most common web browsers
• Boiler room management (pumps, boiler, heat pump)
• Scenarios management
• Multilanguage
OIR30
OC516
OC436
OTOUCH
OC736
