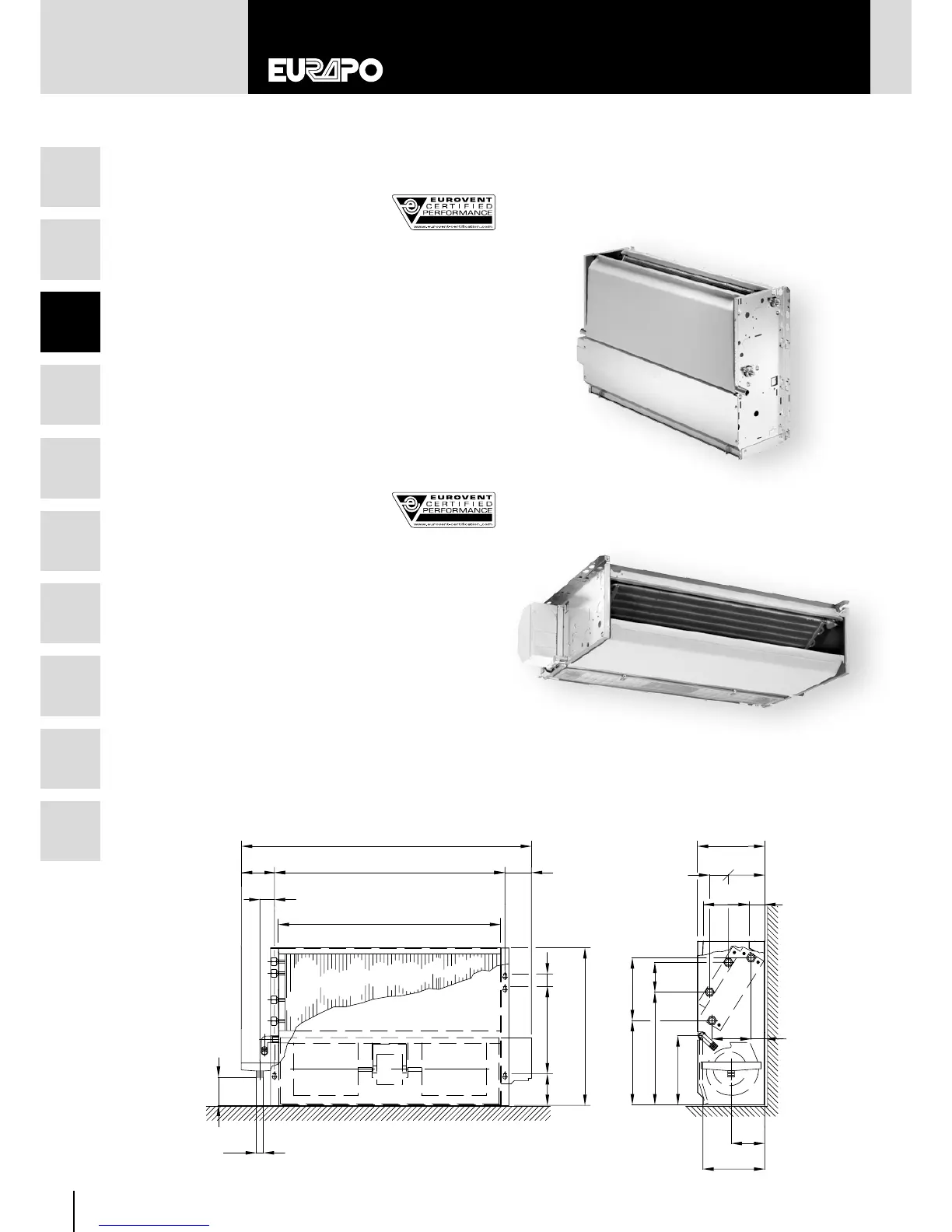

3. MODELS WITHOUT CABINET
3.1 CONCEALED SERIE:
CV – CV/AF MODELS
Vertical units for concealed installation with upper air outlet and
bottom (CV) or frontal (CV/AF) air intake.
• models equipped with auxiliary drain pan
• 2 pipe systems: 2, 3 or 4 row coils; in all units an electric
heater can also be mounted
• 4 pipe systems: additional 1 row coil can be added
to units with a 2 or 3 row coil; in 4 row coil units, the
additional 1 row coil is fitted on the air outlet connection
• direct expansion system: 3 row direct expansion coil
3.2 CONCEALED SERIE:
CH – CH/AF MODELS
Horizontal units for concealed installation, with frontal air outlet
and rear (CH) or bottom (CH/AF) air intake.
• models equipped with auxiliary drain pan
• 2 pipe systems: 2, 3 or 4 row coils; in all units an electric
heater can also be mounted
• 4 pipe systems: additional 1 row coil can be added
to units with a 2 or 3 row coil; in 4 row coil units, the
additional 1 row coil is fitted on the air outlet connection
• direct expansion system: 3 row direct expansion coil
W
N
ø
U
H
F
J
G
D
V
A
M
B
E
Y
P
R
X
Z
Q
0
L
C
K
TS
CV/AF MODEL
CV MODEL
CH/AF MODEL
