Eurapo Prisma PV - PM - Air Delivery Plenum; PM90 - 90° Air Delivery Plenum; PA - Air Suction Plenum

32
1
2
3
4
5
6
7
8
9
10
SIZE 110 112 114 216 218 220 222 224 226 328
A mm 379 504 629 754 879 1004 1004 1254 1254 1504
SIZE 110 112 114 216 218 220 222 224 226 328
A mm 351 476 601 726 851 976 976 1226 1226 1476
B mm 176 176 176 176 176 206 206 206 206 206
C mm 176 176 176 176 176 206 206 206 206 206

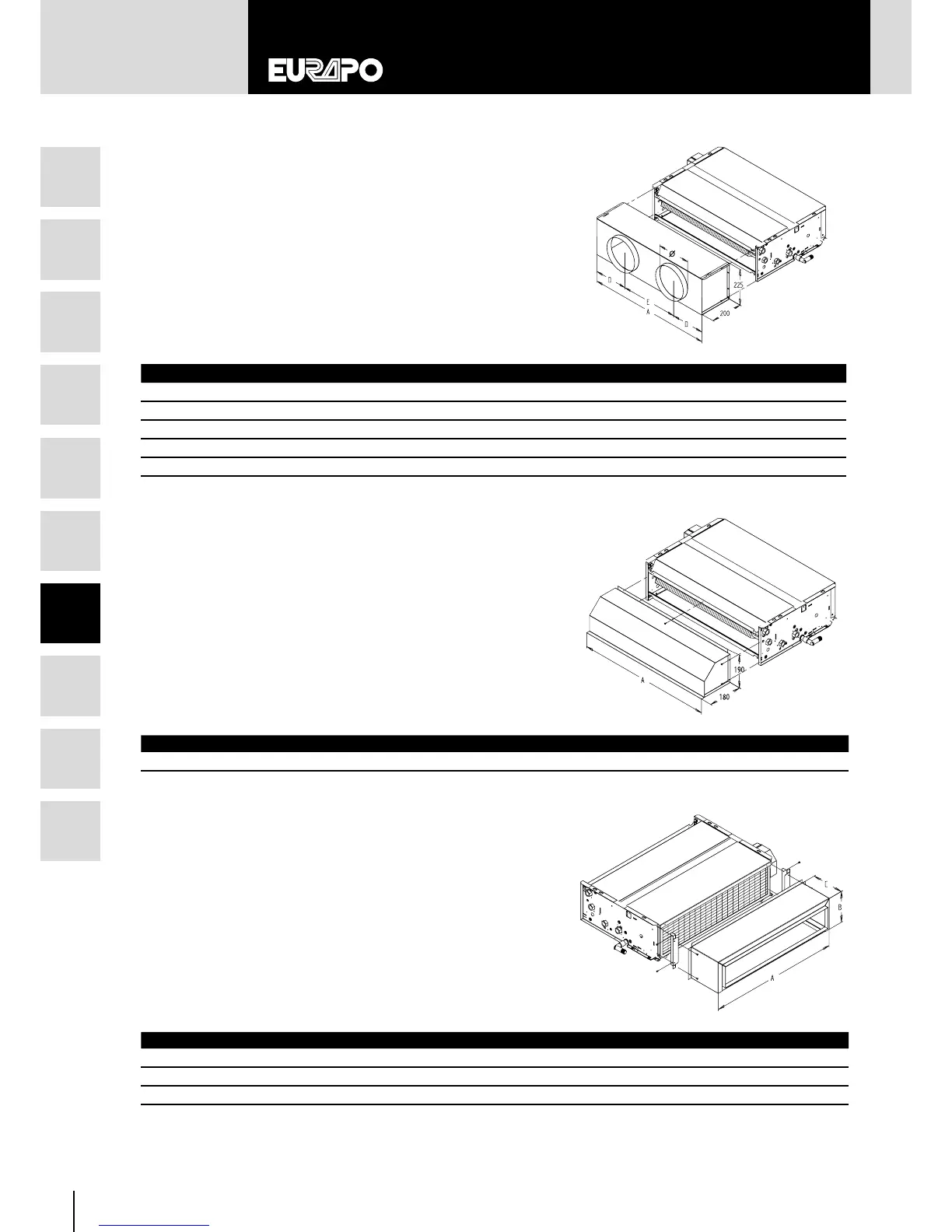

7.10 PM – AIR DELIVERY PLENUM
The air delivery plenum is made of galvanized steel sheet, insulated
inside, provided with spigots for the connection to the air ducts. It is
mounted on the air outlet of the unit.
SIZE 110 112 114 216 218 220 222 224 226 328
No. of spigots 1 2 2 2 2 3 3 3 3 3
Spigots’ external Ø mm 150 150 150 200 200 200 200 200 200 200
A mm 379 504 629 754 879 1004 1004 1254 1254 1504
D mm 189,5 127 139,5 202 252 152 152 277 277 377
E mm - 250 350 350 375 350 350 350 350 375
7.11 PM90 – 90° AIR DELIVERY PLENUM
The 90° air delivery plenum is made of galvanized steel sheet, insulated
inside, provided with a rectangular collar for the connection to the air
duct. It is mounted on the air outlet of the unit.
7.12 PA – AIR SUCTION PLENUM
The air suction plenum is made of galvanized steel sheet, provided with
a rectangular collar for the connection to the external air intake. It is
mounted on the air intake of the unit, between the external air intake and
the filter, which remains accessible for maintenance.
