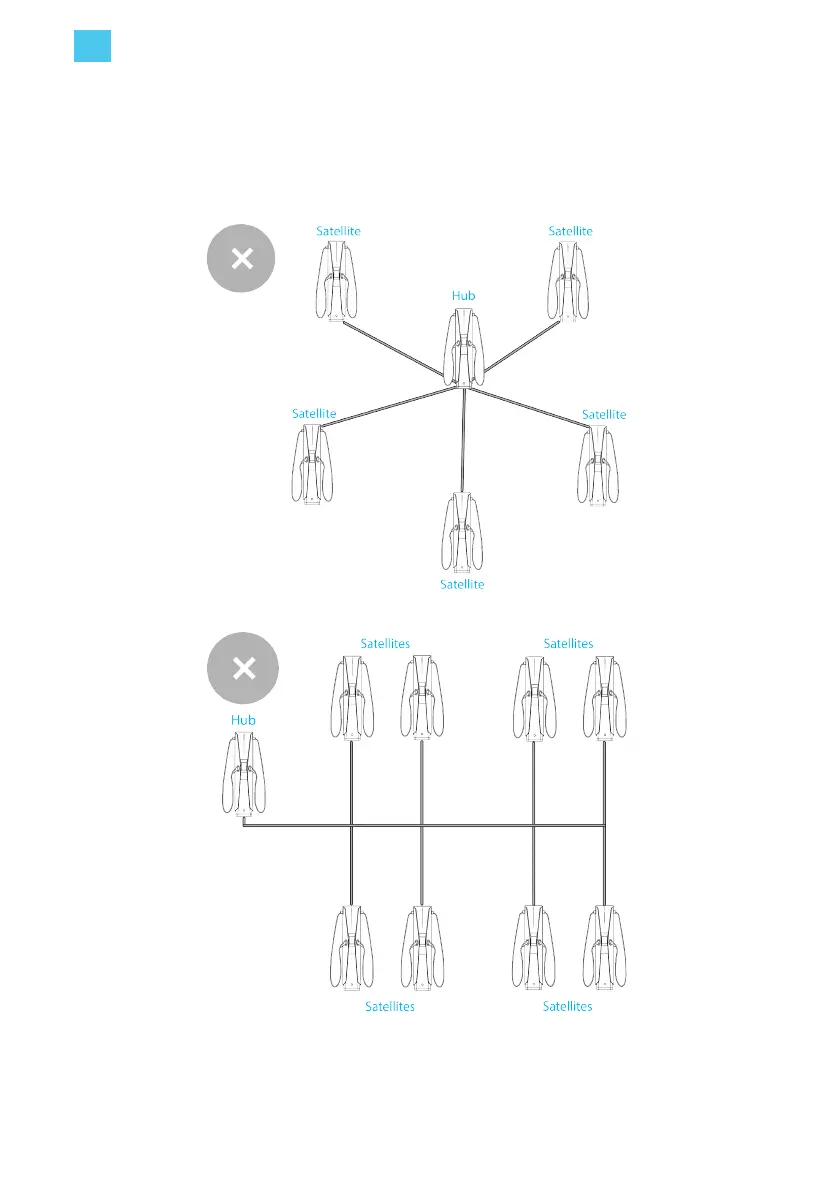

Incorrect RS485 con>gurations
RS485 data communication configurations in a Star-shaped or T-shaped network will not function
correctly because signal reflections can occur in the network:
Star-shaped network
T-shaped network
EN
4. Installation instructions
24
