Mode = Operating mode (1 = winter)
PF21 = Winter setpoint (SP) condensation control
PF22 = Winter differential condensation control
PF13 = Enable maximum speed forcing
PF24 = Winter Setpoint (SPF) maximum speed forcing
PF25 = Winter differential (Y) maximum speed forcing
PF26 = PI Regulator of integral time
PF27 = Minimum value inverter forcing
PF28 = Acceleration time
PF31 = Fan low speed limit
PF32 = Fan high speed limit
PF33 = Enable fan control above the setpoint
PF34 = Fan switch-off differential above the setpoint (X)
Note: with parameters PF41, PF42, PF43, PF45, PF46, and PF47 you can linearise the analogue output.

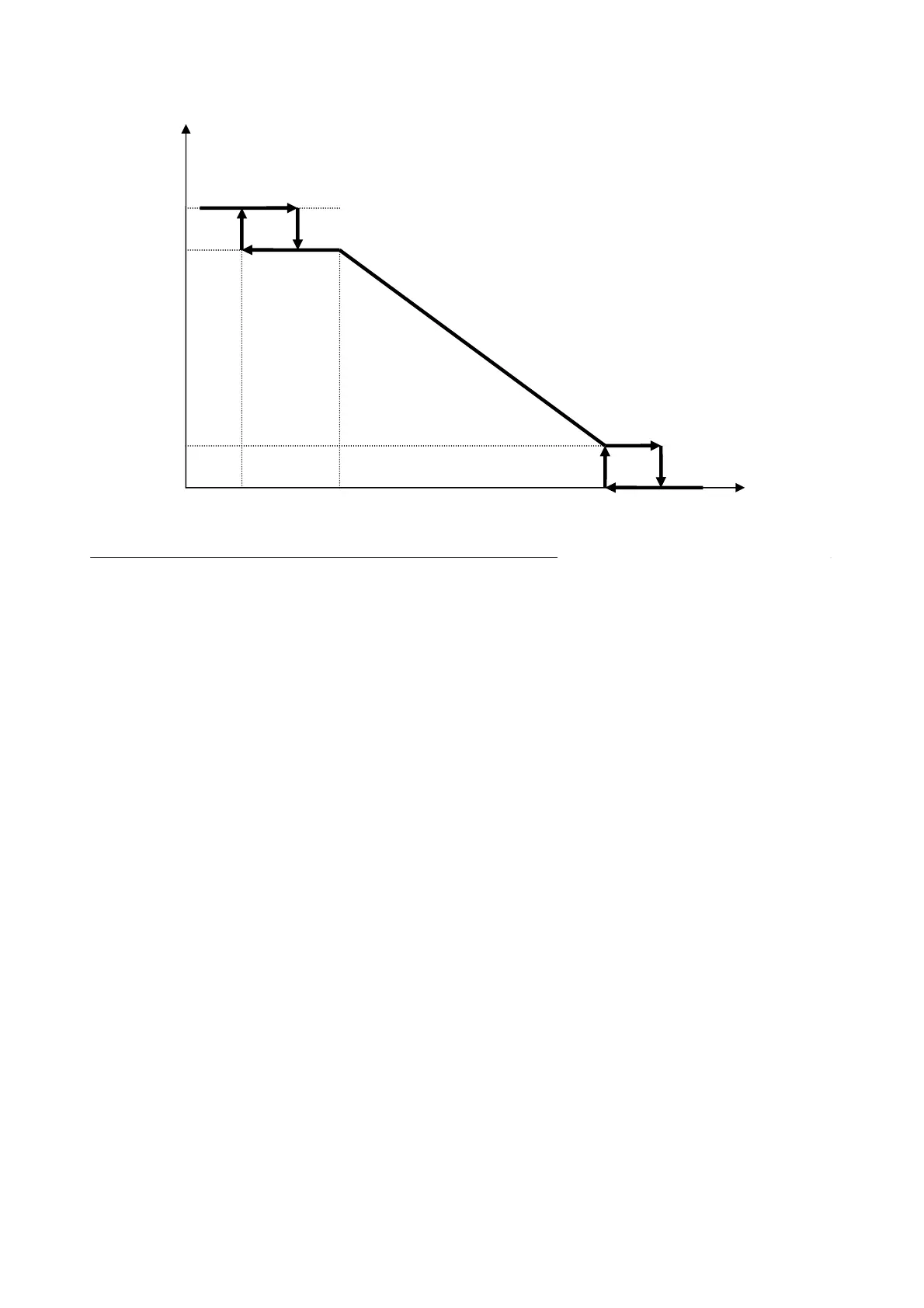

Pressure
Speed
SP SP + X SP - diff
Low-speed
High-
speed
Max.
speed
SPF
SPF + Y
