9.1.10 USB port connection to a personal computer

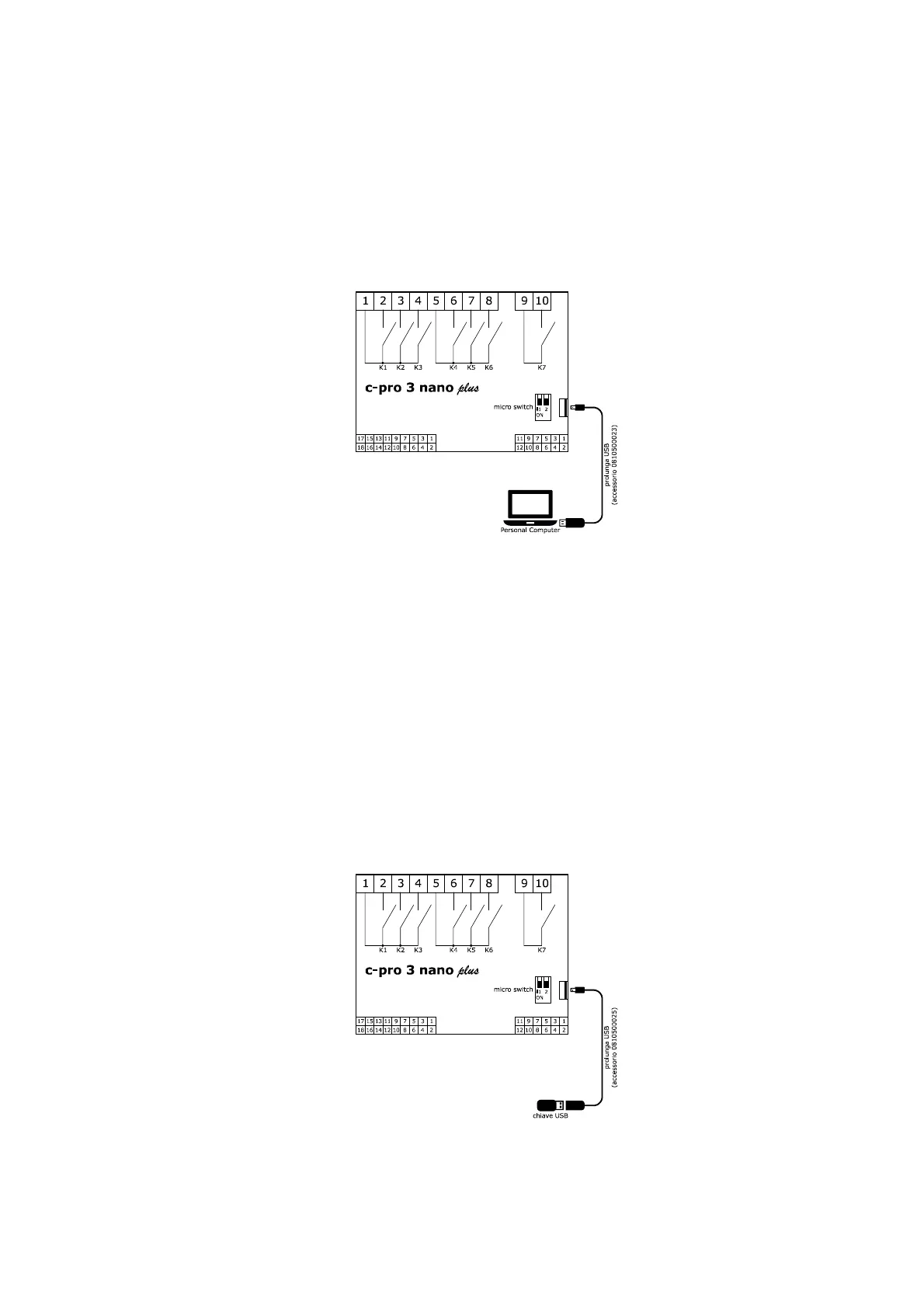

The picture below shows the c-pro 3 nano plus USB port connection to a personal computer.
9.1.11 USB flash drive connection
The picture below shows a USB flash drive connection to the c-pro 3 nano plus.
9.1.12 Fitting the termination resistor for the RS-485 MODBUS and CAN networks
To reduce any reflections on the signal transmitted along the cables connecting the devices to a RS-485 MODBUS network and/or a
CAN network it is necessary to fit a termination resistor to the first and last device in the network.
The picture below shows the left side of the devices.
