EVCO S.p.A. c-pro 3 nano CHIL | Application manual ver. 1.0 | Code 144CP3NCHE104
page 81 of 90

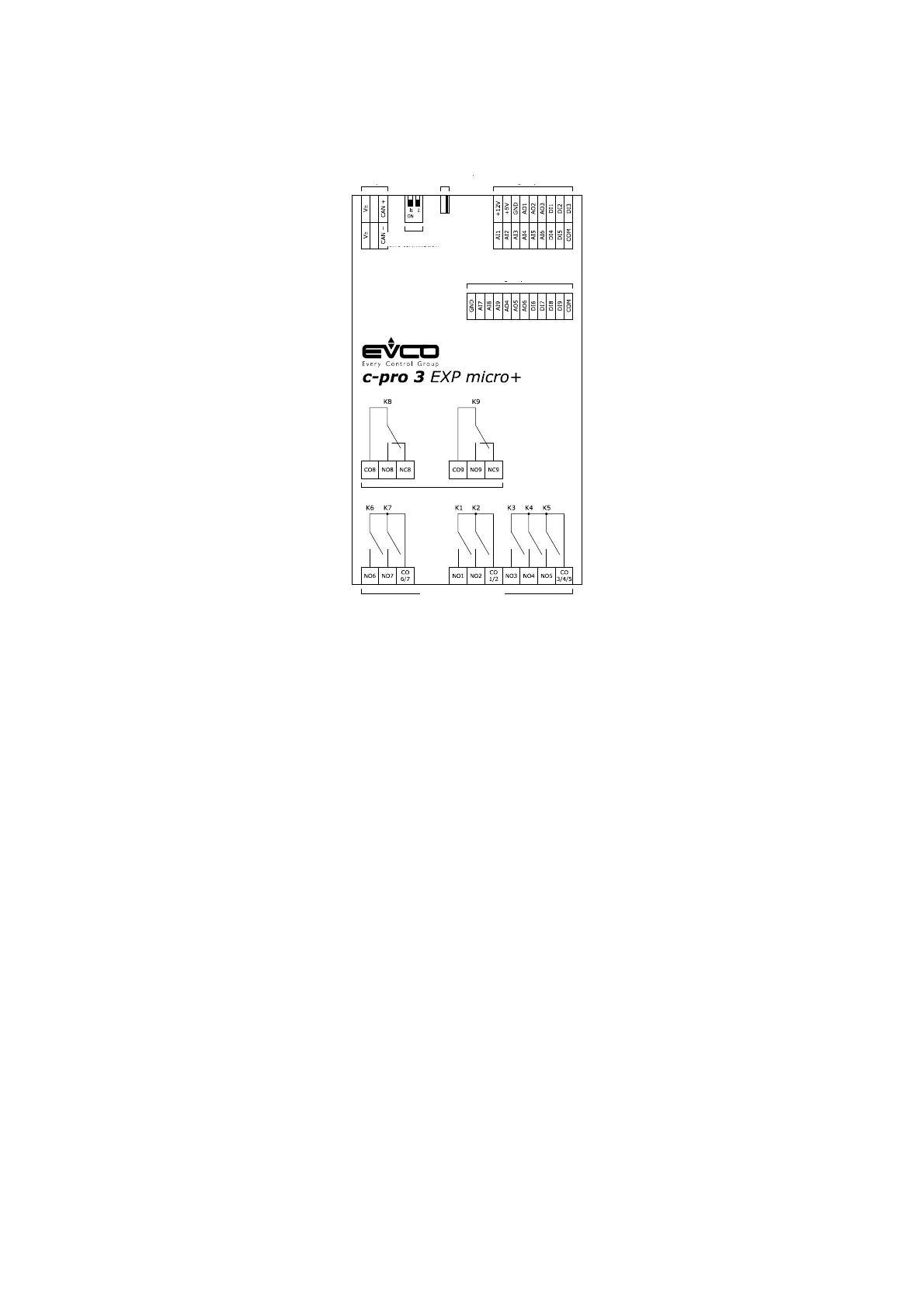

9.2 Layout c-pro 3 EXP micro+ connection
power supply and
CAN port
COMMUNICATIONS
PORT
(USB)
analogue inputs 1...… 6.
digital inputs 1...5 and
analogue outputs 1...3
termination of CAN
port line
analogue inputs 7...… 9.
digital inputs 6...9 and
analogue outputs 4...6
digital outputs 8 and 1
digital outputs 8… 6
