9.1.2 Connection to the power supply

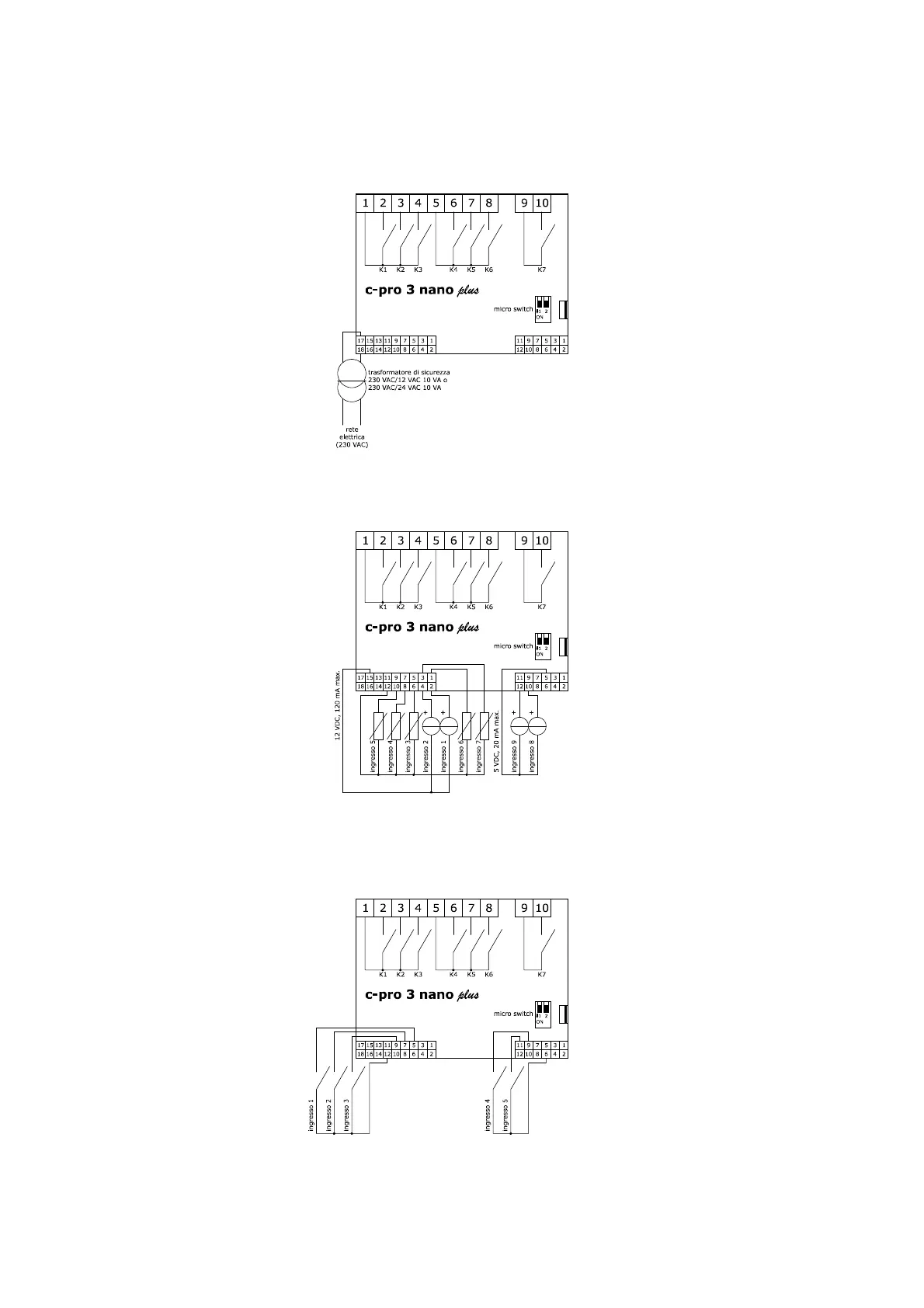

The picture below shows the c-pro 3 nano plus connection to the power supply.
9.1.3 Analogue input connection
The picture below shows an example of c-pro 3 nano plus analogue input connection.
9.1.4 Digital input connection
The picture below shows the c-pro 3 nano plus digital input connection.
