14 Accessories
14.1 Phase cut speed regulator for single phase fans
EVDFAN1
14.1.1 Introduction
EVDFAN1 is a phase cut speed regulator for single phase fans.
The regulator control signal is the PWM type, the same supplied by the controller analogue output.
The maximum current allowed on the fan is 5 A.
14.1.2 Description

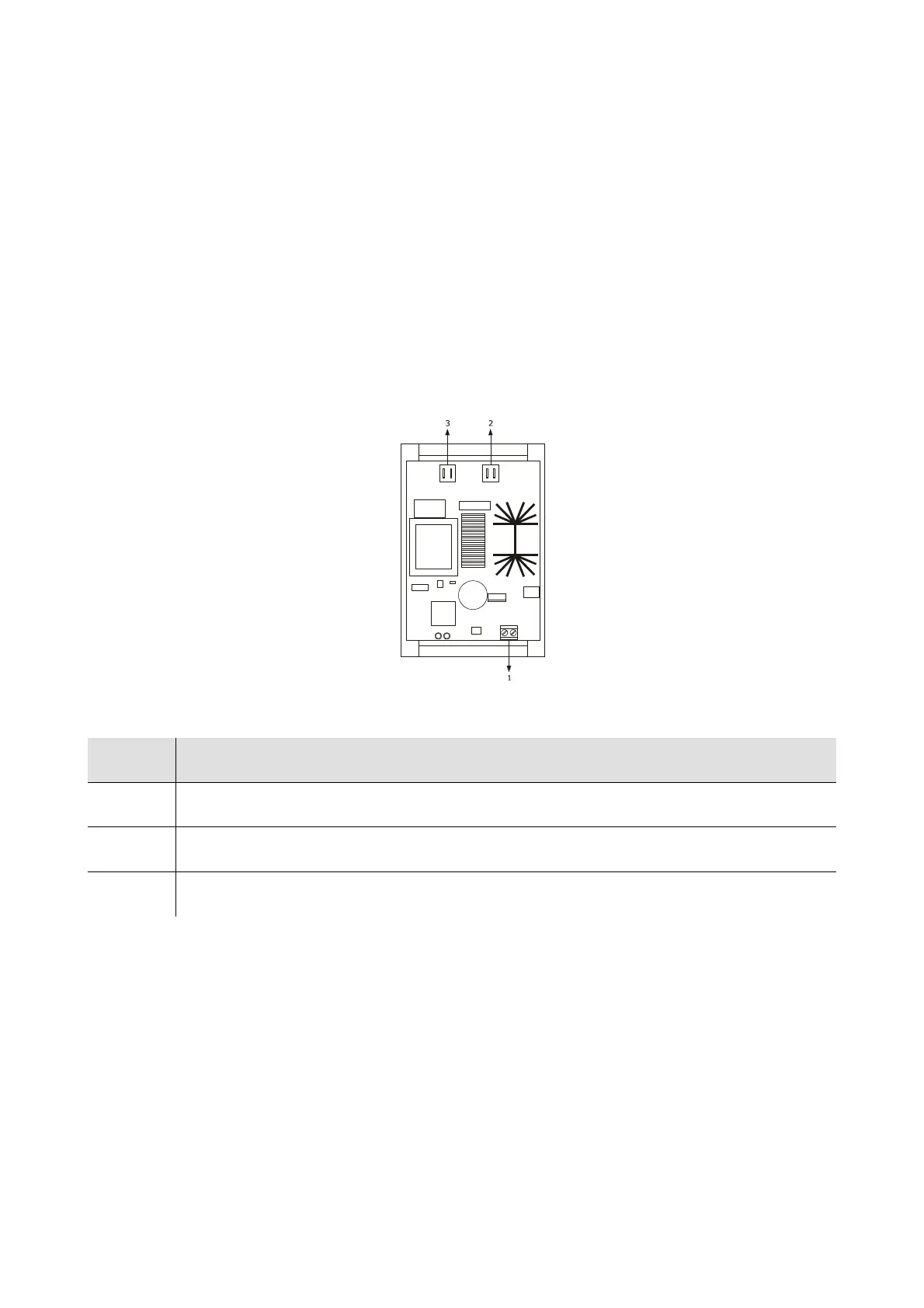

The following drawing illustrates the aspect of the EVDFAN1.
The following table illustrates the meaning of EVDFAN1 parts.
Part Part
1 control signal input
2 power supply
3 phase cut output
