le One to One Connection
Cat 5
Cross-over-cable
Crossover Ethernet Cable Pin outs:

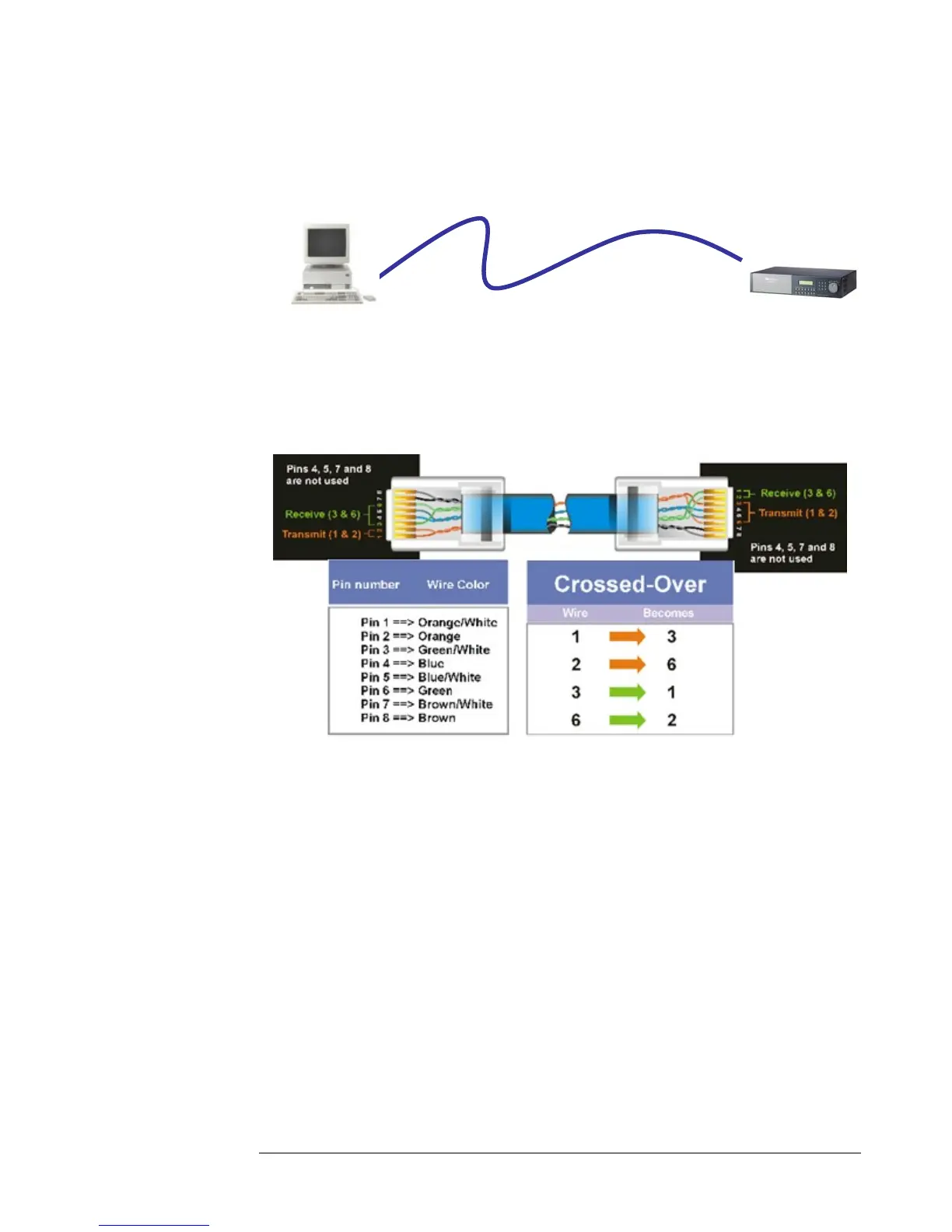

The Diagram below shows the pin configurations for a cross over cable.
Diagram 31
ction Procedure:
The First step is to purchase or make a cross over cable. We
Conne
¾ recommend
purchasing one if you have never made a cross over cable. Please
remember you can not use a straight through network cable for this
application
¾ Once you have a cross over cable plug one end into the LAN port on the
back of the recorder and the other into the network card on the back of
the computer.
¾ Now Log into the Everfocus DVR menu and using the jog dial from the
previous chapter go to the Network Setting Menu. (See page 28 for more
instructions)
