5.2.2 Adding the Tally Router to MAGNUM
To add a new Tally router device click on the SYSTEM menu and select “Devices”.

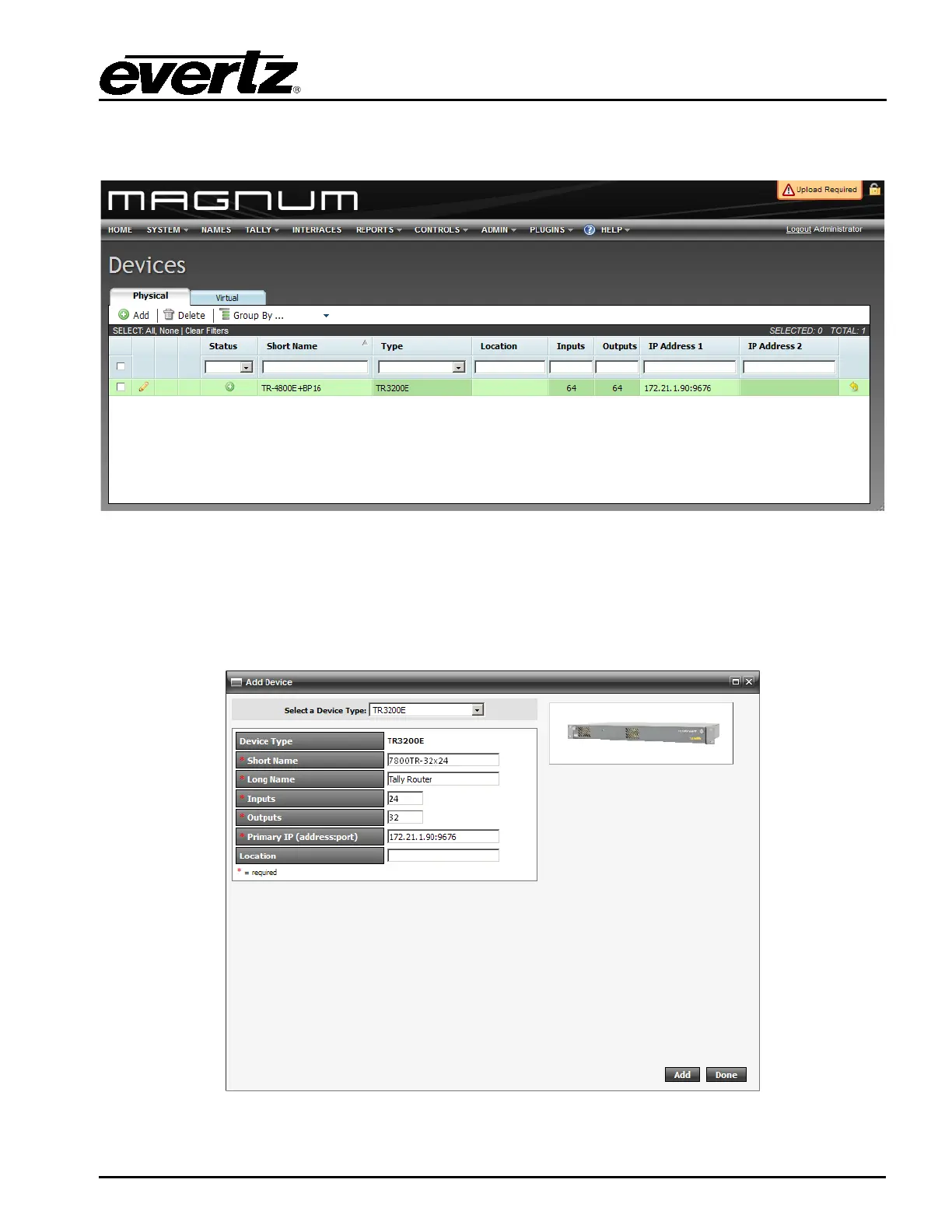

Figure 5-2: Magnum Devices View
Click the Add button to configure a new device. Currently the Tally Router must be added as a
TR3200E. Magnum uses the same control protocol for both the TR-3200E and the 7800TR-32X24
products. The only difference is the number of GPI and GPO available. The 7800TR-32X24 should be
configured with 24 inputs and 32 outputs. Enter the IP address of the tally router for the “Primary IP”.
Make sure to use port 9676. Repeat this for every tally router in your system. Click Done when finished
adding devices.
Figure 5-3: Adding a Tally Router Device to Magnum
