HD2014, HD2012, HD2011 Video Passport
TM
1RU Multi-Path Video Converter, Frame Synchronizer and Decoder
INSTALLATION Revision 0.1 Page 2-5
PIN # Name Description
1
Not used Reserved for future use
2
Not used Reserved for future use
3
Not used Reserved for future use
4
Not used Reserved for future use
5
Not used Reserved for future use
6
Not used Reserved for future use
7
AES Out 2 AES Output 2 – Unbalanced
8
Not used Reserved for future use
9
AES Out 6 AES Output 6 – Unbalanced
10
AES Out 5 AES Output 5 – Unbalanced
11
AES Out 1 AES Output 1 – Unbalanced
12
AES Out 8 AES Output 8 – Unbalanced
13
AES Out 7 AES Output 7 – Unbalanced
14
AES Out 4 AES Output 4 – Unbalanced
15
AES Out 3 AES Output 3 – Unbalanced
AES OUT
Female
Shell
GND Ground

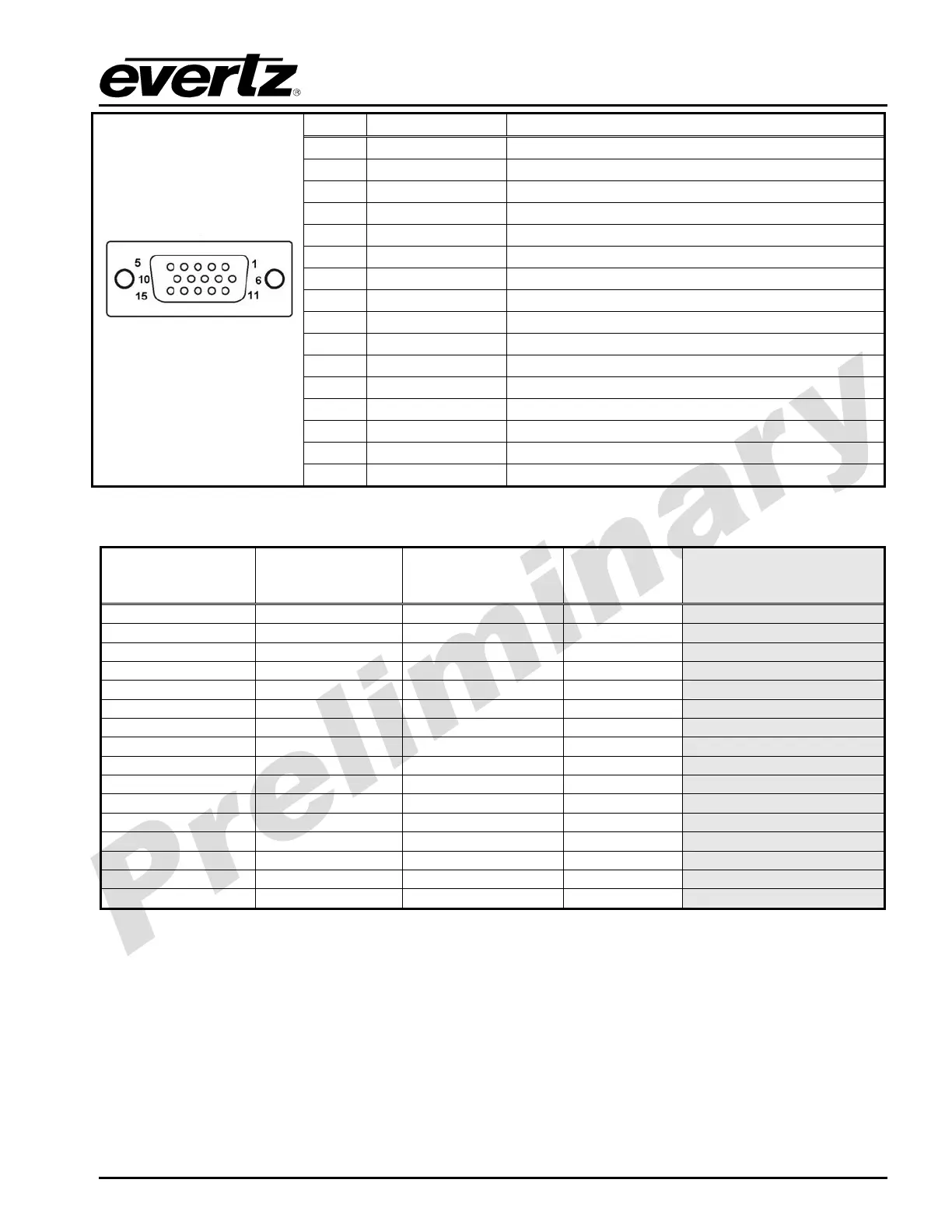

Table 2-4: AES Output Audio Connector Pinout
High Density DB-
15 PIN (male)
Breakout
Cable
Connector
Ground/
Shield Connection
Labelled
Name
HD2014
Connector Pin Map
1
Red Wire W1 RED
Pin 1 – Not used
2
Green Wire W2 GREEN
Pin 2 – Not used
3
Blue Wire W3 BLUE
Pin 3 – Not used
4
Not Used Not used
Pin 4 – Not used
5
Not used Not used
Pin 5 – Not used
6
White Wire W4 WHITE
Pin 6 – Not used
7
Coax BNC Male Soldered to Shell AES A2
Pin 7 – AES Out 2
8
Yellow W5 YELLOW
Pin 8 – Not used
9
Coax BNC Male Soldered to Shell AES B2
Pin 9 – AES Out 6
10
Coax BNC Male Soldered to Shell AES B1
Pin 10– AES Out 5
11
Coax BNC Male Soldered to Shell AES A1
Pin 11– AES Out 1
12
Coax BNC Male Soldered to Shell AES B4
Pin 12– AES Out 8
13
Coax BNC Male Soldered to Shell AES B3
Pin 13– AES Out 7
14
Coax BNC Male Soldered to Shell AES A4
Pin 14– AES Out 4
15
Coax BNC Male Soldered to Shell AES A3
Pin 15– AES Out 3
Shell
Black Wire GND
GND
Table 2-5: AES Audio Output Breakout Cable (Evertz Part # WPAES8-BNCM-6F)
2.1.5. Analog Audio Connections
ANALOG AUDIO: Analog audio is interfaced using a 36 pin analog audio terminal block. With the +AA
option for the HD201x, there are eight balanced mono analog audio outputs and four
balanced mono analog audio inputs on this connector. Relevant pinout information is
provided in Table 2-6.
