ENGINE MANAGEMENT MODULE (EMM)
EMM SERVICING
EMM SERVICING
IMPORTANT: If a new EMM is being installed,
refer to EMM Transfer on p. 101.
Disconnect cooling hoses from EMM.
Disconnect J1-A, J1-B, and J2 connectors.
Remove three EMM retaining screws and wash-
ers. Remove EMM.
Remove EMM from behind oil tank bosses.
Installation
Installation is the reverse of removal. Pay close
attention when performing the following tasks.
Make sure isolator mounts are placed in slots in of
EMM case. Slide EMM into position.
Apply Nut Lock to threads of EMM retaining
screws. Tighten to a torque of 30 to 42 in. lbs. (4
to 5 N·m).
Install harness connectors and cooling hoses.
Secure hoses with tie straps.

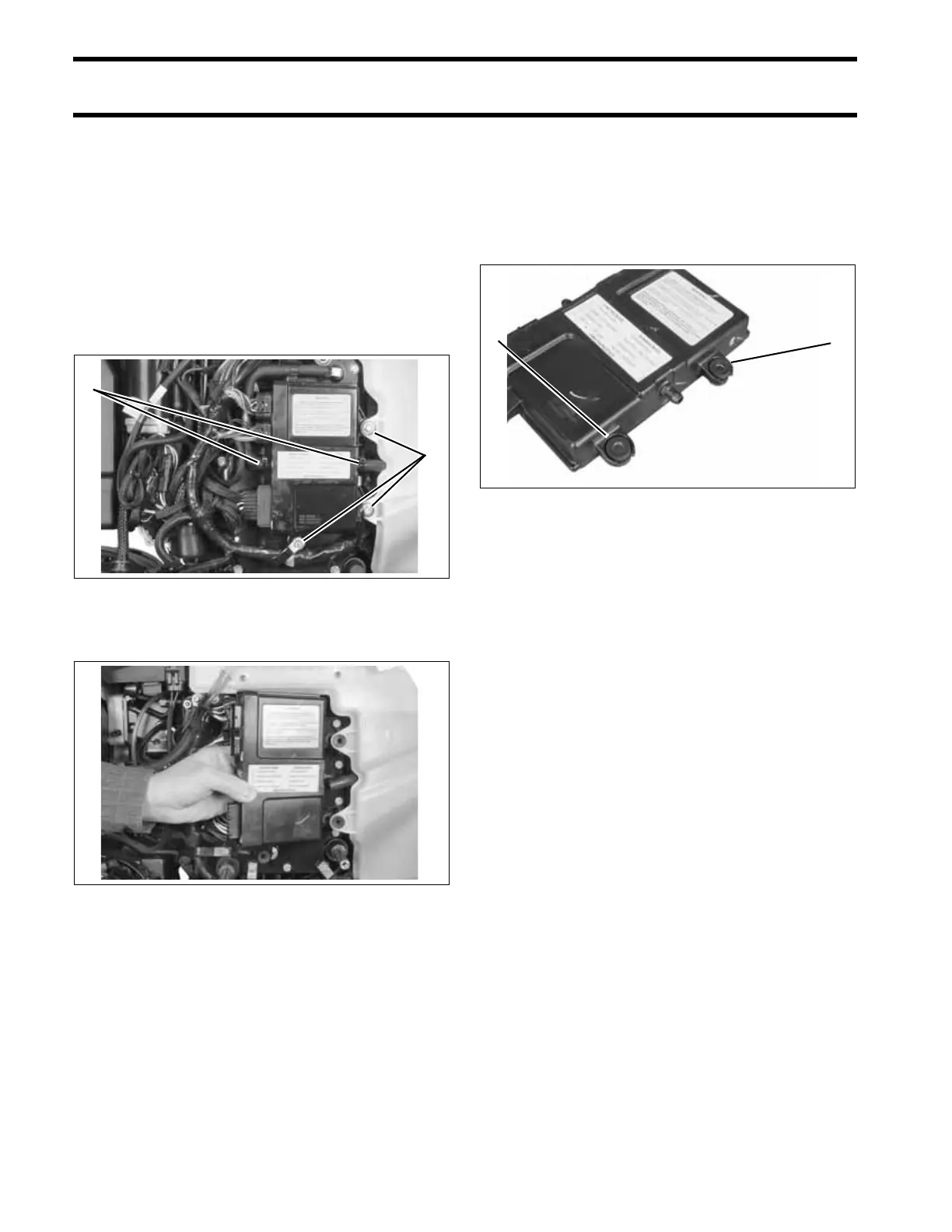

1. Cooling hose connections
2. EMM mounting screws
006779
006477
2
1
1. Isolator mounts 006478
