OILING SYSTEM
COMPONENTS
9
LOW OIL Warning
A sending unit in the oil tank pick-up assembly
monitors the oil level in the oil tank.
If the oil level falls below one-quarter capacity, the
EMM signals:
Approximate oil reserve at Low Oil activation:
• 0.61 qt. (0.57 l).
NO OIL Warning
When the oil level falls below one-quarter, the
EMM begins counting oil pump pulse cycles.
When it reaches 4800 pulses, the EMM:
To recover from S.A.F.E. mode, the oil pump must
cycle for a minimum of three pulses with the oil
level above one-quarter.
If outboard has been run for more than 3 hours
with NO OIL faults (codes 34 & 117), the EMM
Cylinder and Crankcase
The oil distribution manifold provides crankcase
lubrication through oil distribution hoses and
pressed-in fittings on the crankcase and cylinder
block.
Engine Monitor LOW OIL display: ON
Activates S.A.F.E.
Stores service code 117
EMM LED 4: ON (Running)
Engine Monitor NO OIL display: ON
Activates SHUTDOWN
Stores service code 33
EMM LED 4: FLASHING
Engine Monitor NO OIL display: FLASHING

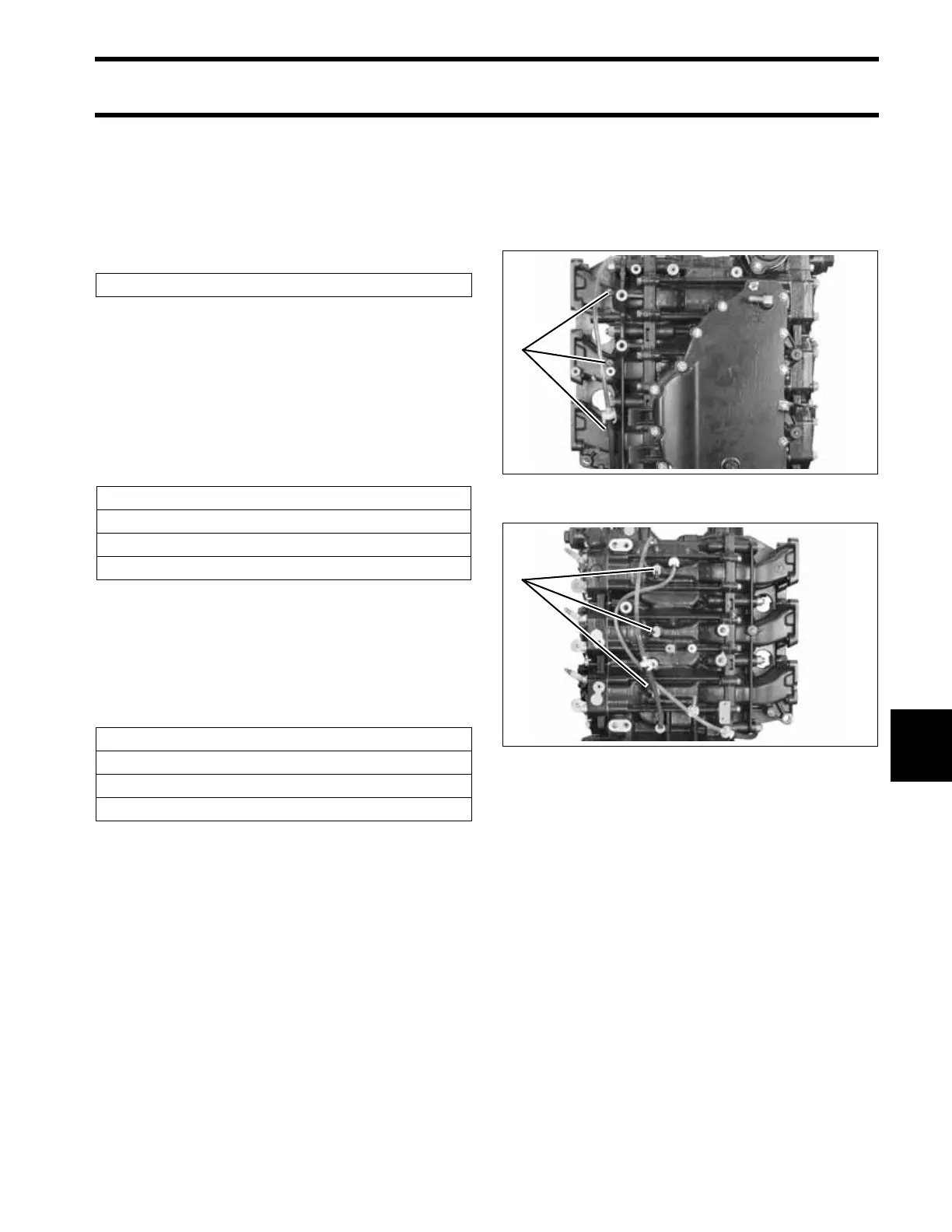

1. Crankcase oil fittings 006758
1. Cylinder block oil fittings 006615
1
1
