295
TRIM AND TILT
TRIM AND TILT SERVICE
14

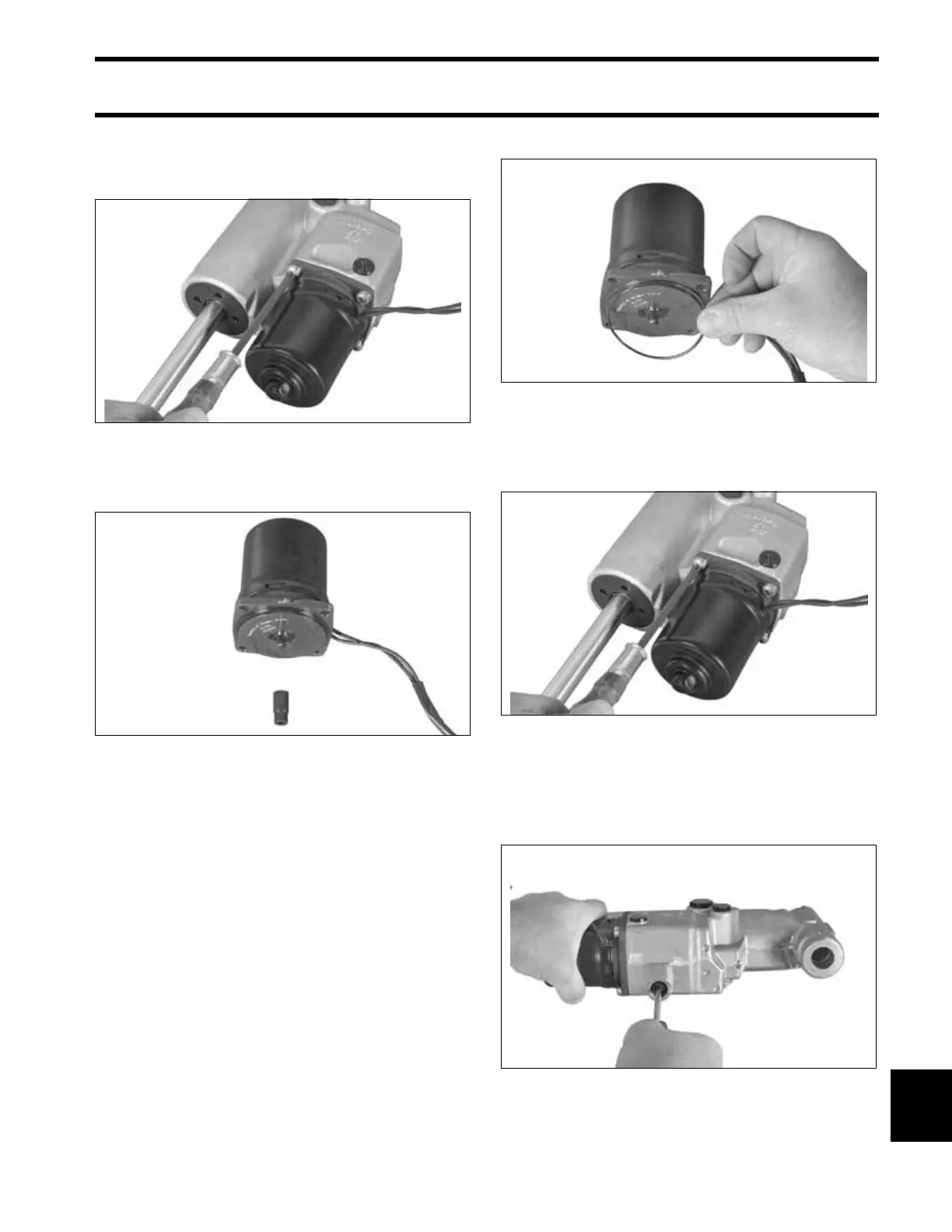

Remove the four large motor flange retaining
screws. Remove the motor and discard O-ring,
screws, and washers.
Remove drive coupler from either the motor or the
pump assembly.
Assembly
IMPORTANT: Use only Evinrude/Johnson Bio-
degradable TNT Fluid to fill the hydraulic system.
Install drive coupler in pump assembly.
Install a new motor O-ring.
Position the motor on the manifold and install four
new screws and lock washers. Tighten the screws
35 to 50 in. lbs. (4 to 5.6 N·m).
Oil O-rings and install them on the manual release
valve. Oil and install the manual release valve.
Tighten the valve to a torque of 45 to 55 in. lbs.
(5.1 to 6.2 N·m).
004282
004281
004280
004282
004285
To Next Page
