OILING SYSTEM
OIL COMPONENT SERVICING
OIL COMPONENT
SERVICING
Oil Distribution Hoses
The oil distribution hoses to each cylinder MUST
be the same length. DO NOT alter the length of
any hoses.
Oil Distribution Hose Length:
• 23 in. (584 mm)
Removal
Release the hose by depressing the outer ring of
the hose retaining mechanism.
Once hose is removed from the manifold, make
sure hose support is in end of the hose.
Installation
Cut Replacement Oil Hose, P/N 778708, to the
correct length. Insert hose support in manifold end
of hose.
IMPORTANT: DO NOT insert distribution hoses
into manifold without a hose support.
Be sure the hose is fully inserted into manifold.
Insertion depth is 5/8 in. (16 mm). Visually inspect
for hose supports.
WARNING
To prevent accidental starting while ser-
vicing, disconnect the battery cables at
the battery.

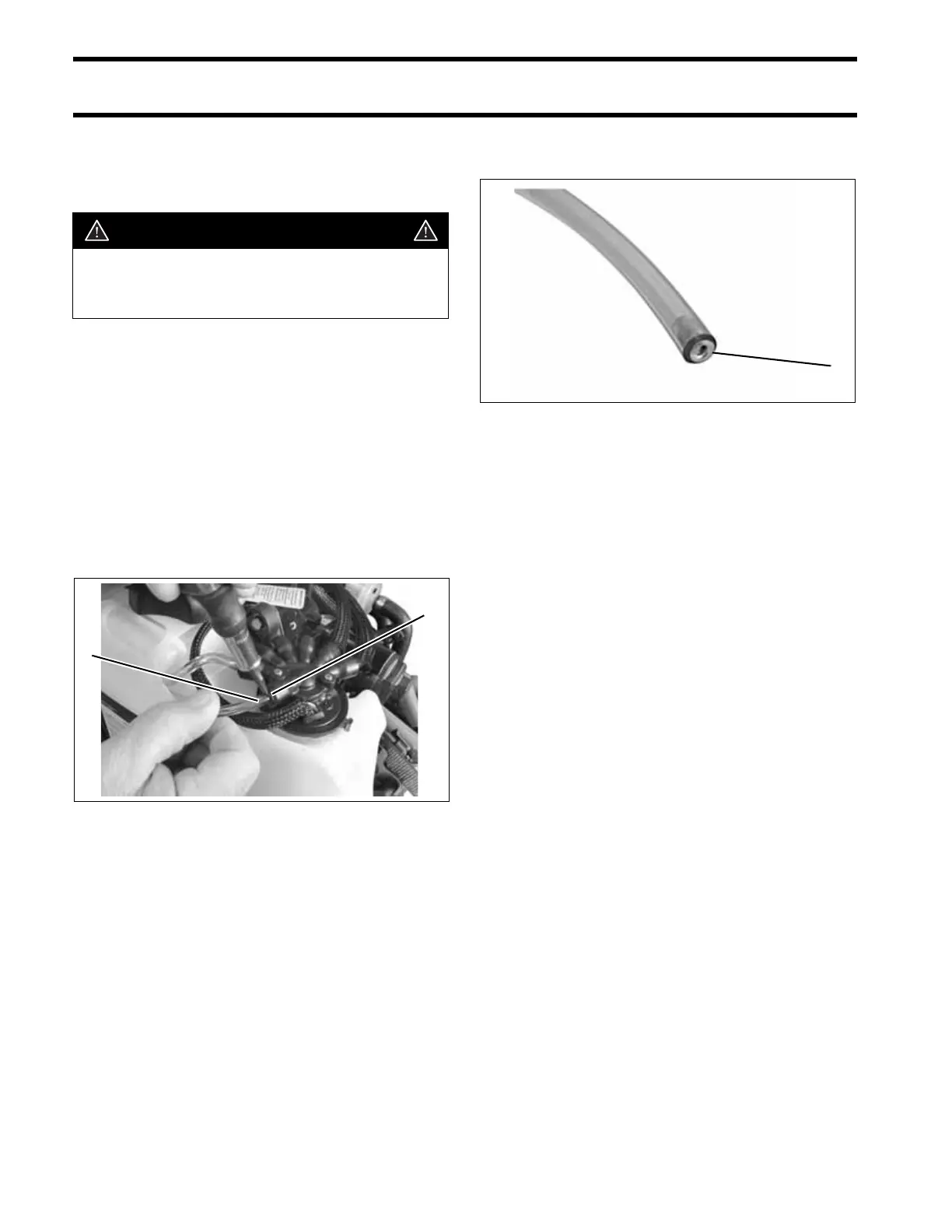

1. Retainer mechanism
2. Hose support
006577
1
2
1. Hose support DSC00291
1
