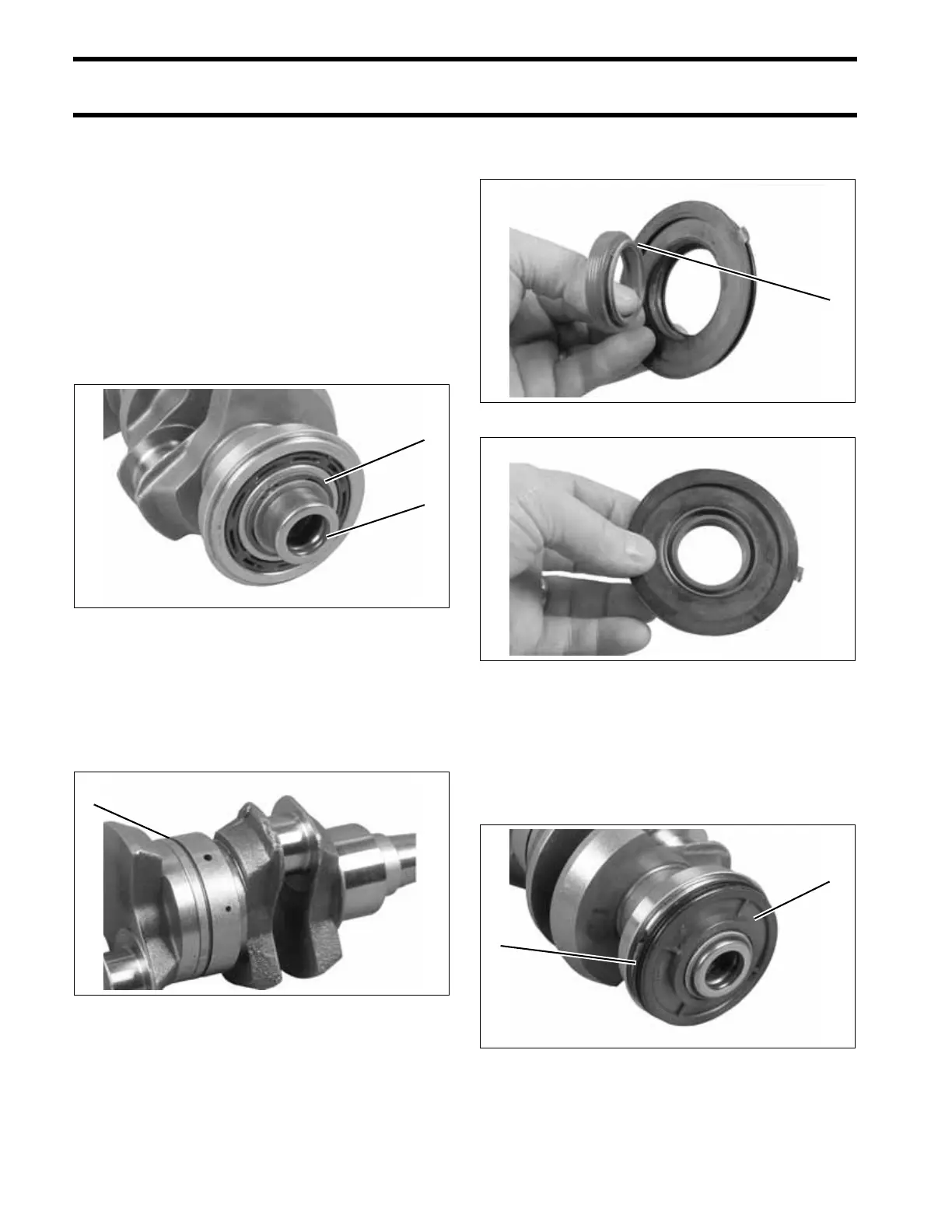

POWERHEAD ASSEMBLY
If the installer sticks on the sleeve after installa-
tion, thread Slide Hammer, P/N 391008, into
installer and pull it off.
IMPORTANT: Inspect sleeve after installation.
Sleeve must not be used if surface is damaged.
Use retaining ring pliers to install bearing retaining
ring with sharp edge facing away from bearing.
Lubricate a new driveshaft O-ring and lightly lubri-
cate crankshaft splines with Moly Lube. Install
O-ring in sleeve.
Lubricate the center main bearings and split
sleeves with outboard lubricant and install them in
their original positions. The split sleeve ring
grooves must face toward driveshaft (lower) end
of crankshaft when installed.
Lightly coat the outside edge of a new lower hous-
ing seal with Gasket Sealing Compound. Press
against outer case of the seal to install seal in the
lower housing with extended lip facing down.
Lubricate seal lip with Triple-Guard grease.
Install a new O-ring on the lower housing. Before
installing crankshaft into cylinder block, apply a
thin coat of Gasket Sealing Compound to outer
edge of O-ring.
Place lower seal housing on crankshaft.
1. Bearing retaining ring
2. O-ring
002031
1. Groove toward driveshaft end 002032
1
2
1
1. Seal lip 002036
002037
1. Lower seal housing
2. O-ring
002038
1
1
2
