243
MIDSECTION
EXHAUST HOUSING
12

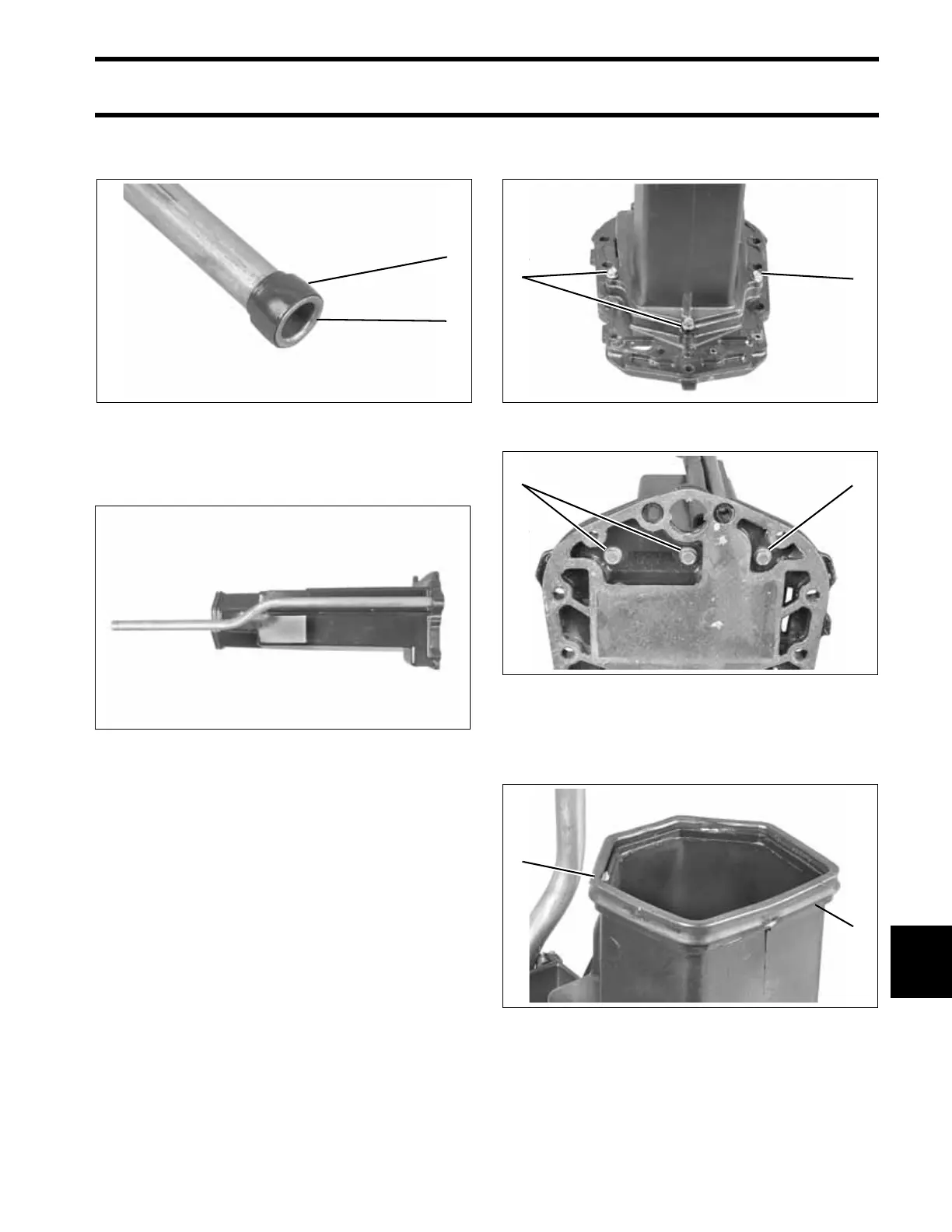

Place a new grommet on the water tube and coat
the outside edge with Adhesive 847.
Install the water tube through the top of the inner
exhaust housing and align as shown:
Place a new gasket between the inner exhaust
housing and the adapter housing. Apply Ultra
Lock to the screws. Install the three lower screws
and three upper screws and tighten to a torque of
60 to 84 in. lbs. (7 to 9.5 N·m).
Apply Adhesive 847 to the bottom flange of the
inner exhaust housing. Install a new seal. Apply
Triple-Guard grease to outer seal surface.
1. Water tube grommet
2. Flared end of water tube
001977
001982
1
2
1. Lower inner exhaust housing screws 001974
1. Upper inner exhaust housing screws 001975
1. Seal
2. Bottom flange
001973
11
11
2
1
