254
MIDSECTION
STERN BRACKET

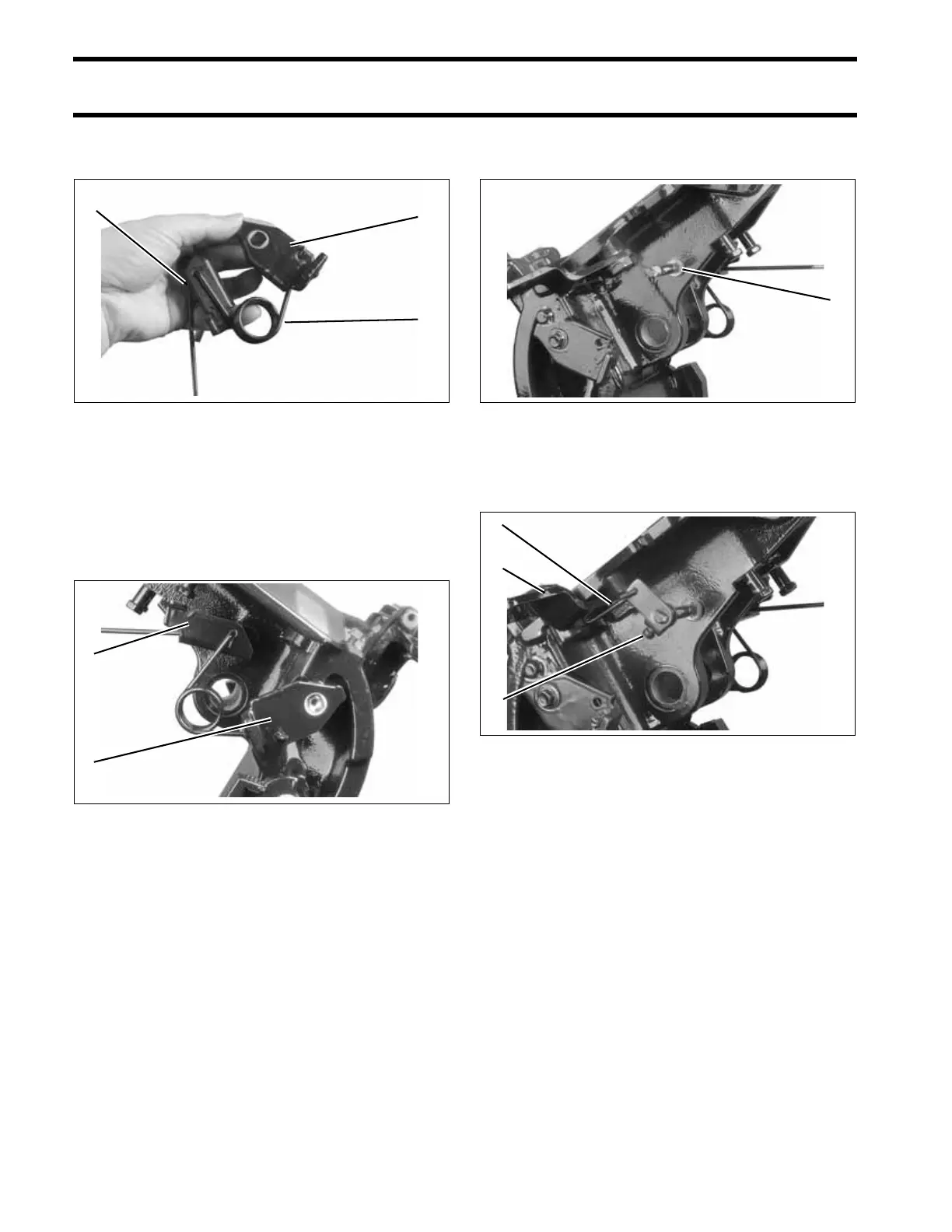

Assemble starboard trail lock lever and trail lock
spring to reverse lock pivot shaft.
Install nylon washer to trail lock shaft and install
above components to swivel bracket. Install trail
lock washer, apply blue Nut Lock to screw and
install screw. Tighten both screws to a torque of
60 to 84 in. lbs. (7 to 9.5 N·m).
Install remaining bellcrank shaft spacer on
reverse lock pivot shaft, then install retaining ring.
Install the rod handle link to reverse lock lever and
bellcrank. Install bellcrank on reverse lock pivot
shaft. Tighten the setscrew.
Install the port reverse lock link on the swivel
bracket. Install washer screw. Apply blue Nut Lock
to screw threads and install washer and screw.
1. Reverse lock pivot shaft and rod
2. Trail lock lever
3. Trail lock spring
006691
1. Reverse lock pivot shaft
2. Trail lock lever
006692
2
3
1
1
2
1. Retaining ring 006693
1. Handle link rod
2. Reverse lock lever
3. Bellcrank setscrew
006694
1
1
2
3
