50

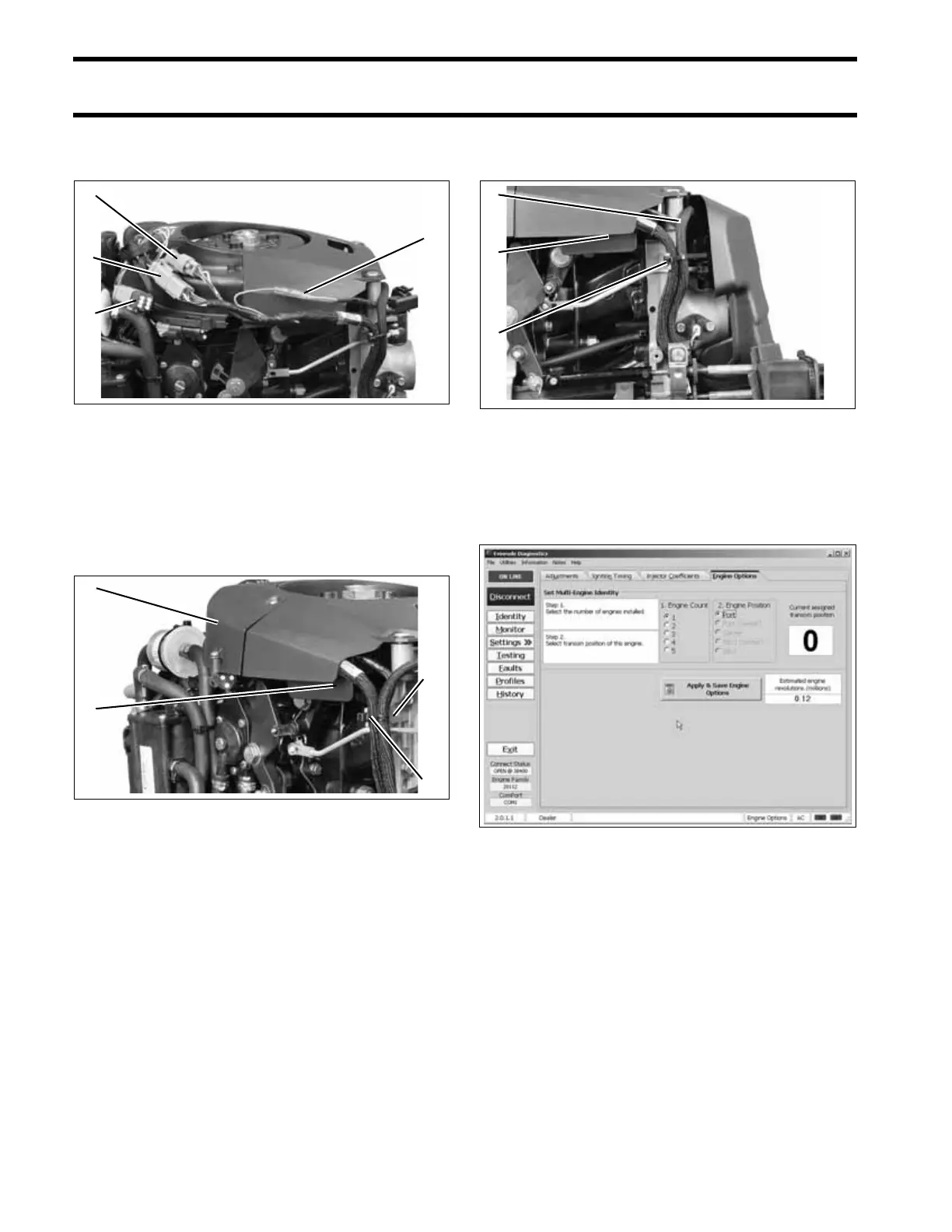

INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING
switch is on. Quick Connect-style network does
NOT use this connection.
Route CANbus ignition harness through wire
channel in flywheel cover. Install electrical cover.
Make sure both harnesses are in front of the tab
and tighten the tie strap.
Install air silencer and check that CANbus network
harness is not pinched behind air silencer. Make
sure both harnesses are in front of tab and CAN-
bus ignition harness is in wire channel.
Use Evinrude Diagnostics software to activate
CANbus control functions in the EMM. From the
Settings screen, select Engine Options.
1. Trim/Tilt connector
2. CANbus Ignition connector
3. SystemCheck connector (with seal)
4. Deutsch-style harness power connector
006734
1. Electrical cover
2. Wire channel
3. Tab
4. Tie strap
006737
4
1
2
3
3
4
1
2
1. CANbus EMM harness
2. Wire channel
3. Tab
006739
Engine Options Screen 006542
1
2
3
