Evinrude E-TEC E50DPLSCB - Stern Bracket Assembly (Manual Tilt)

250
MIDSECTION
STERN BRACKET –MANUAL TILT MODELS
Stern Bracket Assembly (Manual
Tilt)

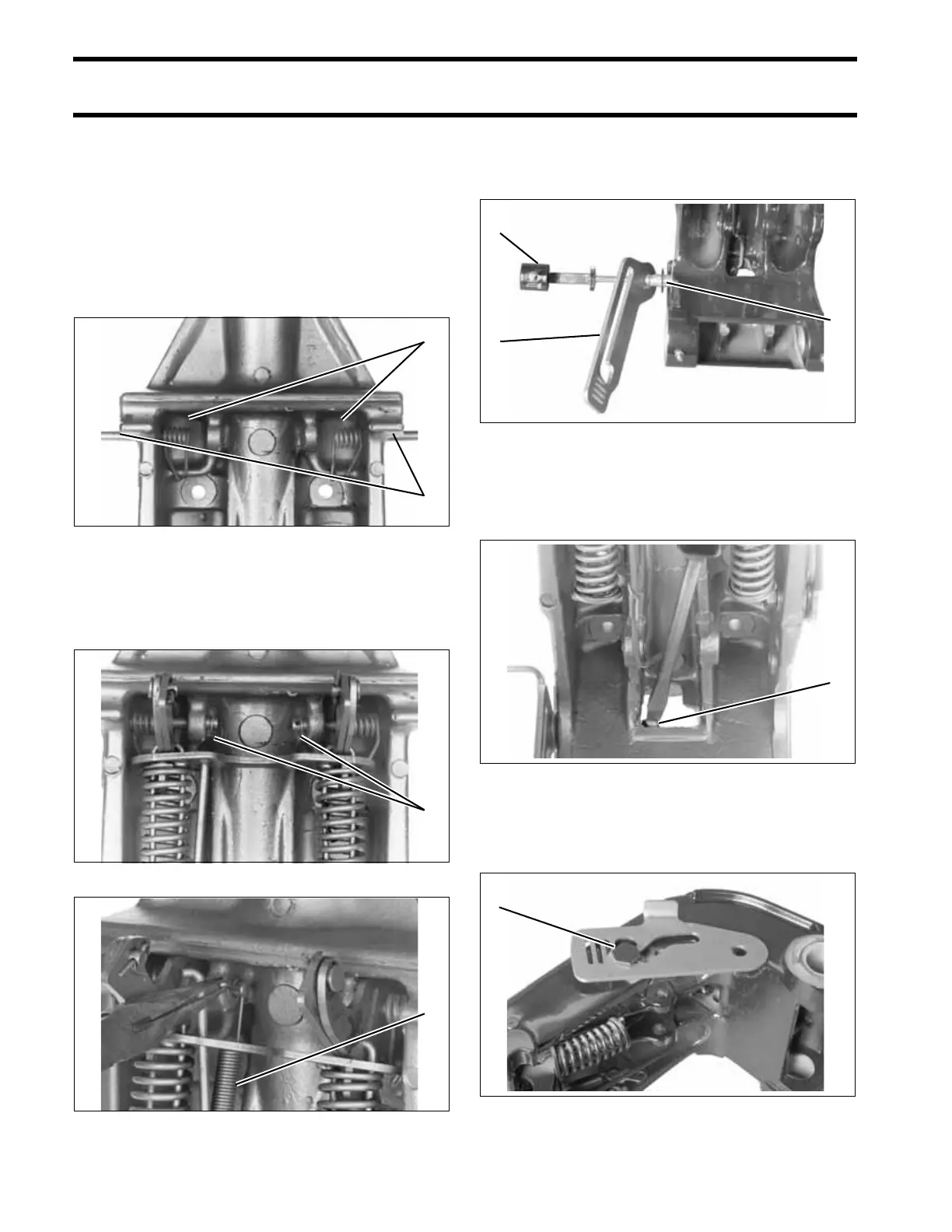

Place the reverse lock springs in the swivel
bracket. Insert the reverse lock pins in the swivel
bracket and part way through the reverse lock
springs. Place the reverse lock assembly between
the springs. Push the pins through the springs and
the reverse lock assembly.
Install the washers on the reverse lock pins. Install
the link spring on the port pin. Install the two cotter
pins in the reverse lock pins.
Install the bushing, the port stop link, and the
tilt/run lever in the swivel bracket. The tilt/run lever
should be in the RUN position.
Install the wave washer and the bellcrank on the
tilt/run shaft. Tighten the setscrew.
Install the starboard stop link on the swivel
bracket. Install and tighten the screw and the nut
to a torque of 144 to 168 in. lbs. (16 to 19 N·m).
1. Reverse lock springs
2. Reverse lock pins
COA2981
1. Washers COA2982
1. Link spring COA2979
1
2
1
1
1. Tilt/run lever
2. Port stop link
3. Bushing
002204
1. Bellcrank setscrew COA2976
1. Starboard stop link screw 002205
1
3
2
1
1
