306
TRIM AND TILT
SERVICING

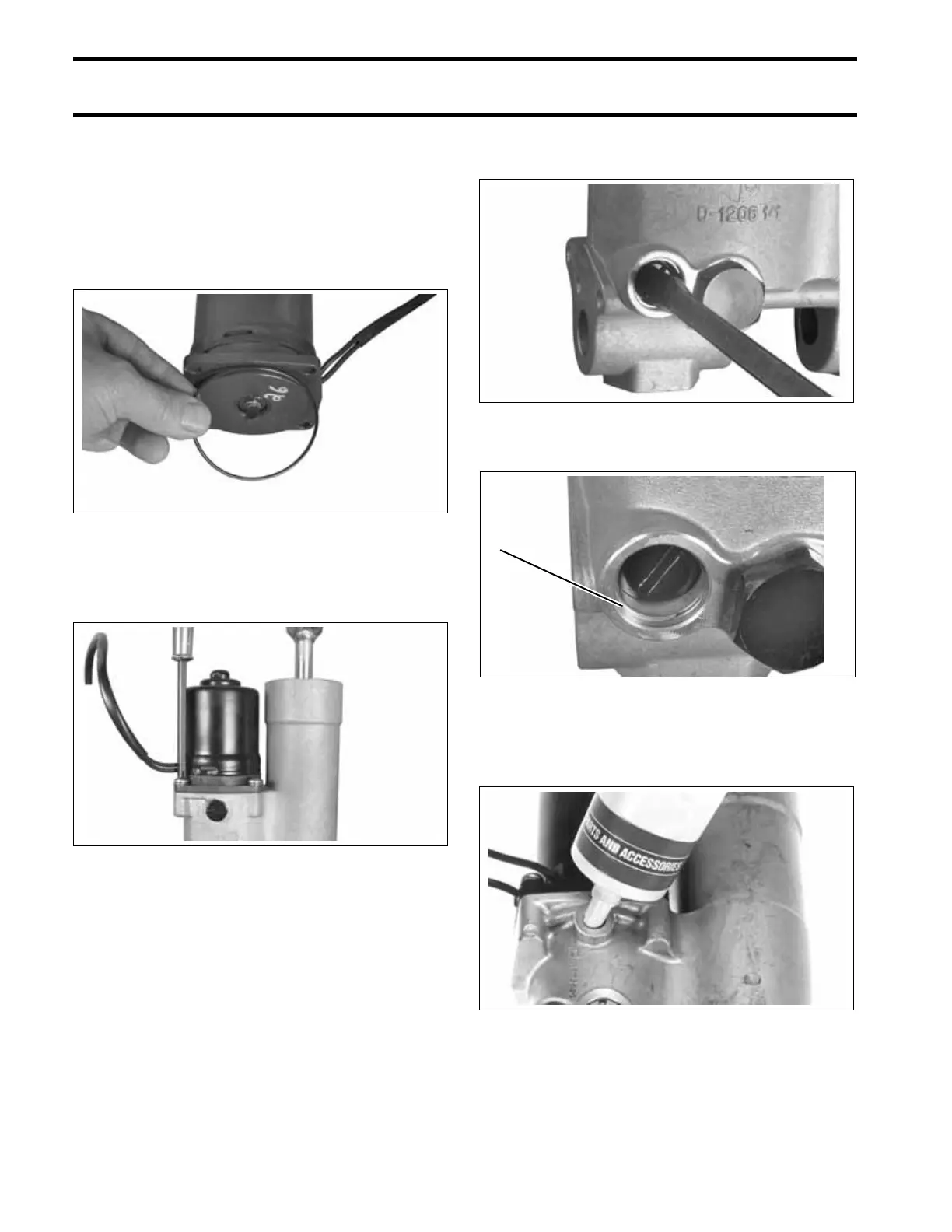

Assembly
IMPORTANT: Use only Evinrude/Johnson Bio-
degradable TNT Fluid to fill the hydraulic system.
Install drive coupler in pump assembly.
Install a new motor O-ring.
Position the motor on the manifold and install the
four screws and lock washers. Tighten the screws
to a torque of 35 to 52 in. lbs. (4 to 6 N·m).
Oil O-rings and install them on the manual release
valve. Oil and install the manual release valve.
Tighten the valve to a torque of 45 to 55 in. lbs. (5
to 6 N·m).
Install retaining ring in groove.
Fill the oil reservoir up to the fill plug with
Evinrude/Johnson Biodegradable TNT Fluid.
Install the fill plug.
002533
002531
002529
1. Retaining ring 002534
TYPICAL 33700
1
