TRIM AND TILT
SERVICING
14

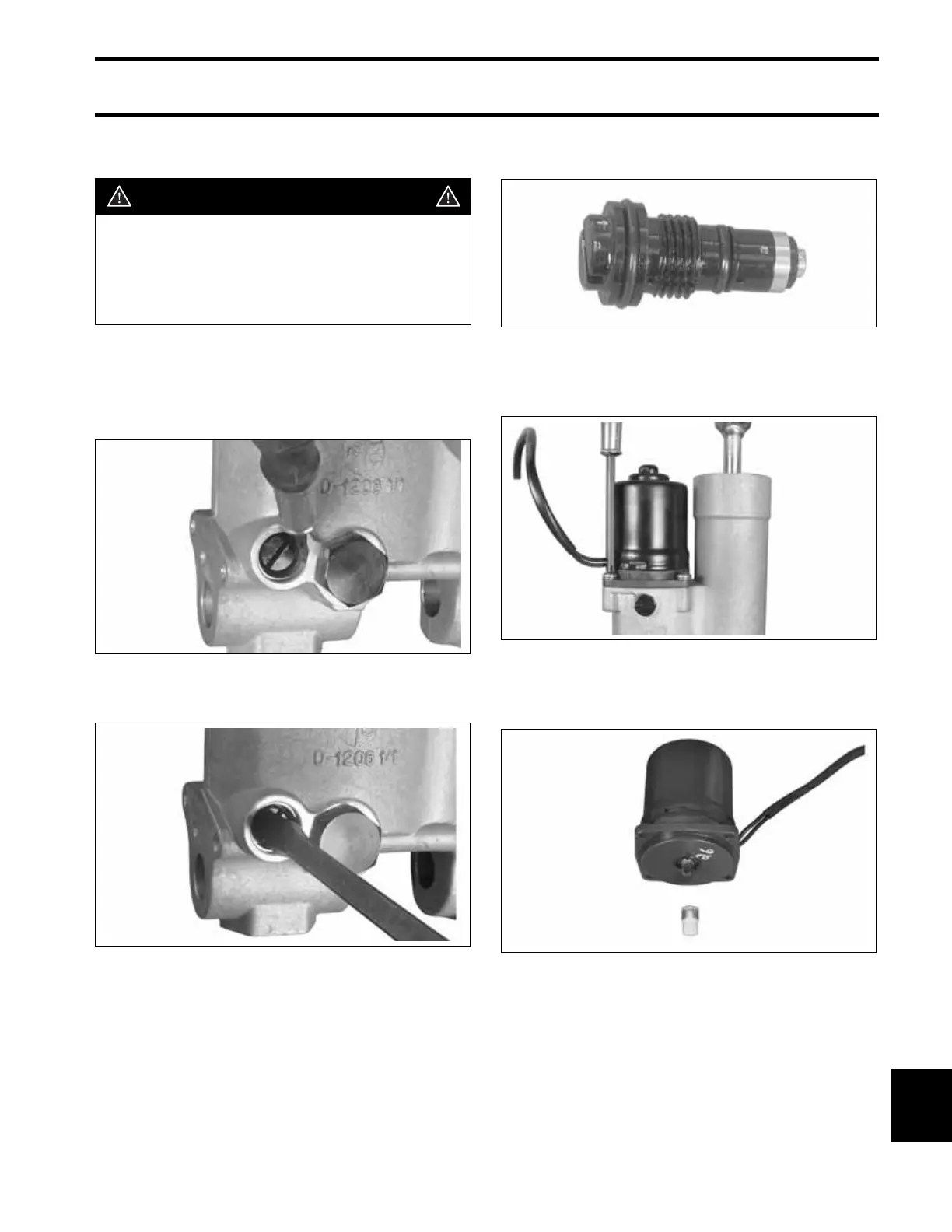

hydraulic passages during assembly. Tape the
trim/tilt piston rods before painting.
IMPORTANT: Before removing manual release
valve, relieve pressure by fully extending cylinder.
Screw the manual release valve in. Remove the
retaining ring using a small pick or screwdriver.
Remove the manual release valve.
Inspect the manual release valve. Discard the O-
rings on the housing.
Remove the four large motor flange retaining
screws. Remove the motor and discard O-ring.
Remove drive coupler from either the motor or the
pump assembly.
WARNING
There may be high pressure behind some
power trim valves. To avoid injury when
removing manual release valve, be sure to
cover valve with a shop cloth until the
pressure is released. Wear safety glasses.
