Evinrude E-TEC E50DPLSCB - Hose Routing and Water Flow Diagram - 40 - 65 E-TEC Inline 2 Cylinder

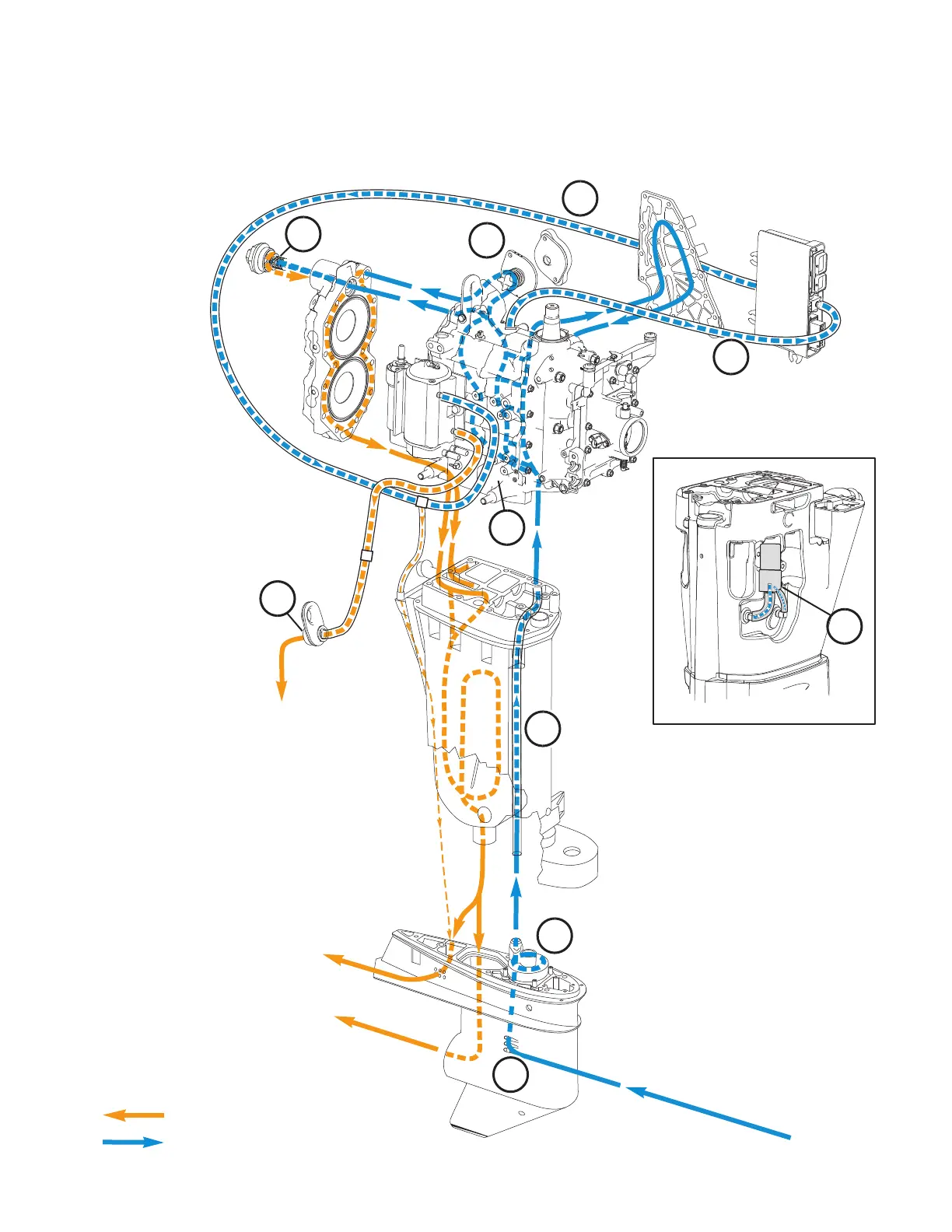

Outgoing water (warm/hot)
Incoming water (cool)
1. Intake water screens
2. Water pump
3. Water tube
4. Cylinder block
5. Pressure valve
6. Thermostat
7. Water supply to EMM
8. Water supply, EMM to
vapor separator
9. Overboard indicator,
outgoing water from
vapor separator
10. Water valve
Hose Routing and Water Flow Diagram
40 – 65 E-TEC Inline 2 Cylinder
002222E
9
1
2
3
4
5
6
8
7
10
60, 65 HP
