266
MIDSECTION

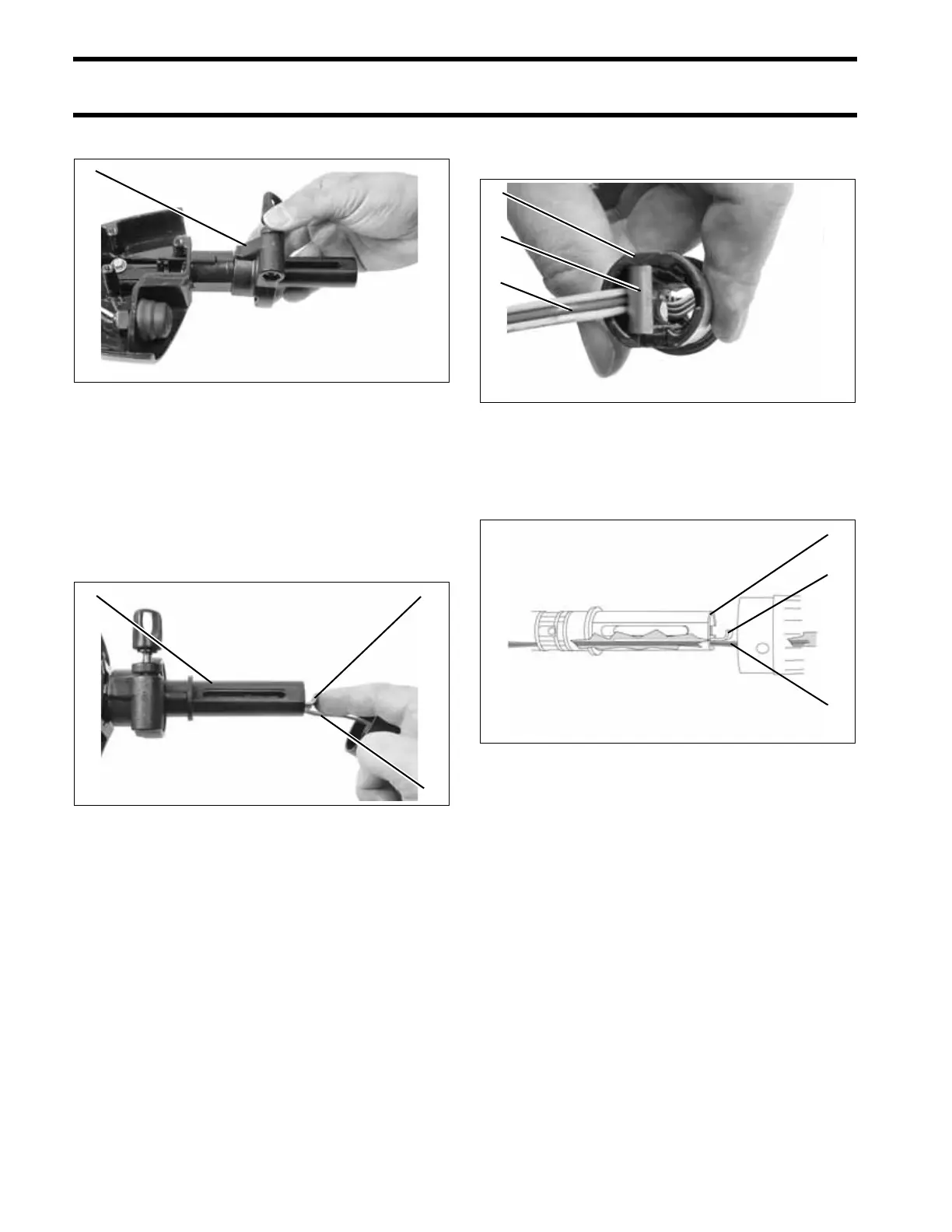

TILLER HANDLE SERVICE – LONG HANDLE
Install the throttle control plate on outer handle.
Install trim switch wiring through inner steering
handle.
IMPORTANT: Trim switch wiring must NOT be
twisted through the throttle twist grip or inner tiller
handle / wire guide.
Insert wire guide into inner steering handle.
Wire guide should slide easily into place. If any
binding is felt, inspect trim switch wiring for twist-
ing. If wire guide is forced into place, it WILL dam-
age trim switch wiring.
Make sure trim switch wiring is NOT twisted
before proceeding.
1. Throttle friction control 006671
1. Inner tiller handle
2. Wire guide
3. Trim switch wires
006726
1
2
3
1
1. Inner tiller handle
2. Wire guide
3. Trim switch wires
006684
1. Inner tiller handle
2. Wire guide
3. Trim switch wires
006675
2
3
1
2
3
1
2
3
