X EVINRUDE® ICON™ CONCEALED SIDE MOUNT REMOTE CONTROL USER’S GUIDE
In an emergency situation the engine can be
restarted without the clip in place. Follow nor-
mal starting procedure. Reinstall clip as soon
as possible. See your dealer to order a spare
Emergency Stop Lanyard, P/N 176288.
Station Select
Station select is the process of activating a re-
mote control station during system power up.
If Station Protect is
enabled, a unique key sequence must be
entered to activate the station. See
Station Protect on page 11.
Turn the master power/key switch to the RUN
position.
The master power/key switch turns power ON
and OFF to the:
• ICON control network
• Outboard
• NMEA 2000/gauge network
• Boat accessories (requires Accessory Pow-
er Relay Kit, P/N 765296)
In single station installations, the remote con-
trol activates automatically.
Note: Position control lever in the NEUTRAL
position to start or stop outboard. A NEU-
TRAL indicator Light Emitting Diode (LED) lo-
cated on the switch panel will turn ON to
indicate control lever is in NEUTRAL position.

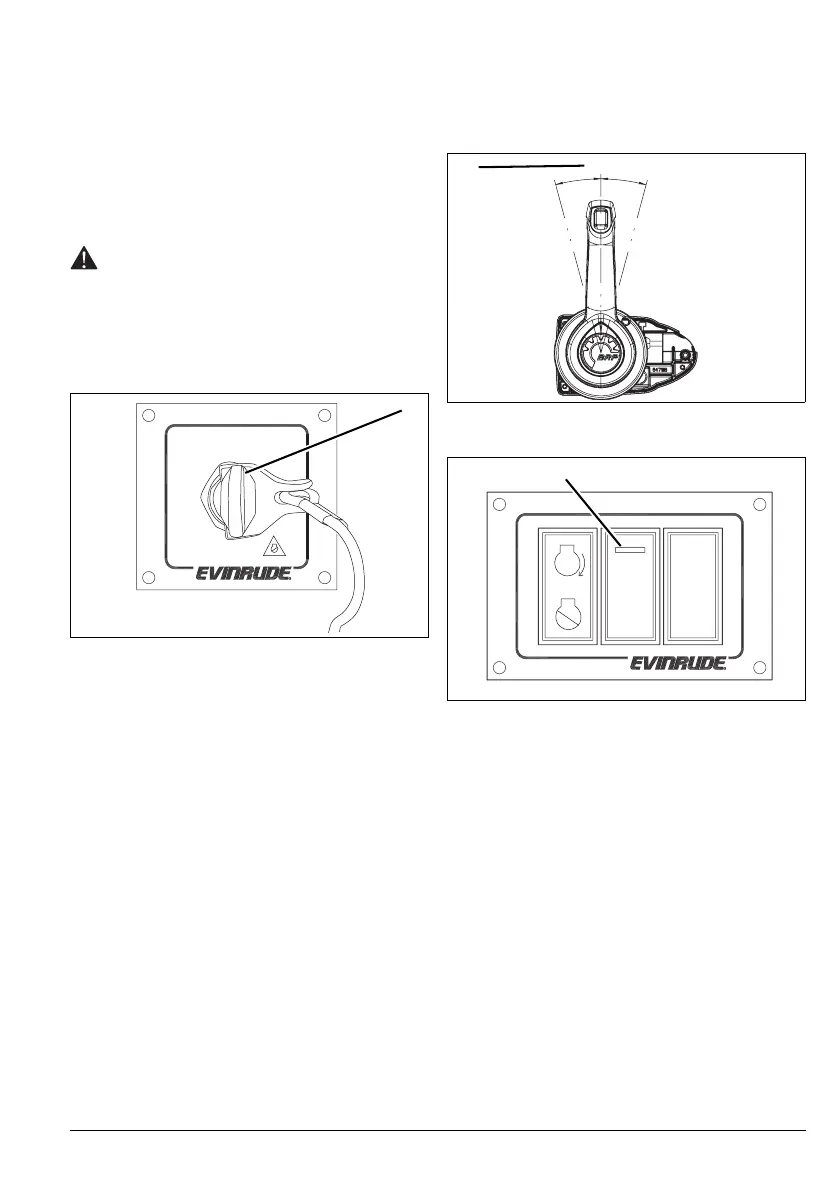

1. RUN position
007894
CAUTION
1
OFF
RUN
1. NEUTRAL position
008005
1. NEUTRAL indicator LED
008003
N
REV
FWD
+
RPM
–
N
