Evo HW 79 - Temperature Sensor Reading Instructions; EVO Sensor Resistance Table

34000 Autry Street, Livonia, MI 48150 • 800.968.5530 • Fax 734.419.0209 • www.hamiltonengineering.com • LIT91127 REV 3/09
SERVICING
H. TEMPERATURE SENSOR READING INSTRUCTIONS
Reset Button
Show Flow (Outlet) Temp.
Reset Button
Reset Button
Reset Button
Show Return (Inlet) Temp.
Show Indirect (Tank) Temp.
Show Cascade Temp.
Normal Display
Reset Button
Reset Button
Show Outside Temp.
(Direct heated storage tank
or common loop sensor)

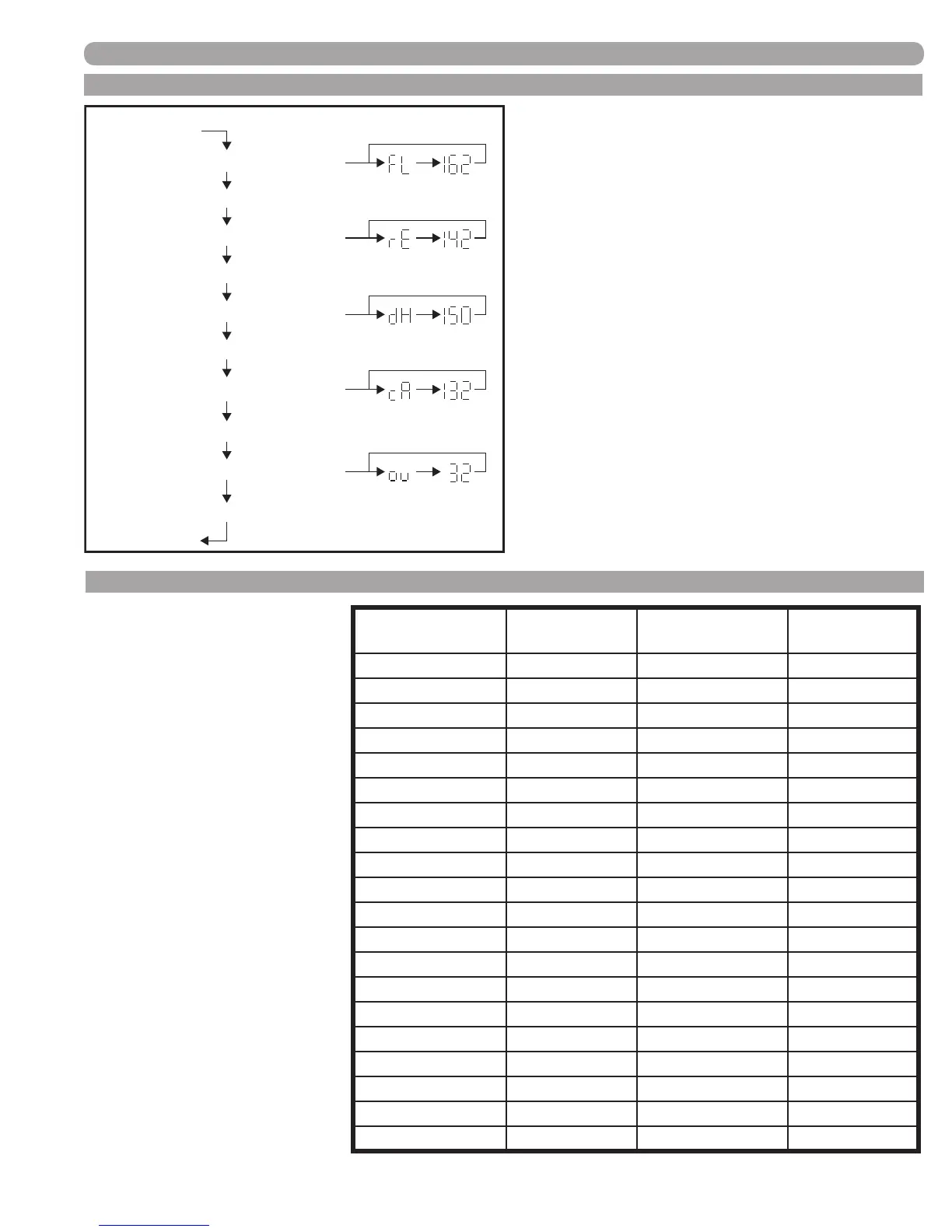

(FIGURE 7-1) TEMPERATURE SENSOR
READING INSTRUCTIONS
I. EVO SENSOR RESISTANCE TABLE
(TABLE 7-7) EVO SENSOR
RESISTANCE TABLE
TEMPERATURE

O

RESISTANCE

TEMPERATURE

O

RESISTANCE

32 32550 0 32550
41 25340 5 25340
50 19870 10 19870
59 15700 15 15700
68 12490 20 12490
77 10000 25 10000
86 8059 30 8059
95 6535 35 6535
104 5330 40 5330
113 4372 45 4372
122 3605 50 3605
131 2989 55 2989
140 2490 60 2490
149 2084 65 2084
158 1753 70 1753
167 1481 75 1481
176 1256 80 1256
185 1070 85 1070
194 915 90 915
203 786 95 786
