Evo HW 79 - EVO MICRO Parts Breakdown

34000 Autry Street, Livonia, MI 48150 • 800.968.5530 • Fax 734.419.0209 • www.hamiltonengineering.com • LIT91127 REV 3/09
MAINTENANCE

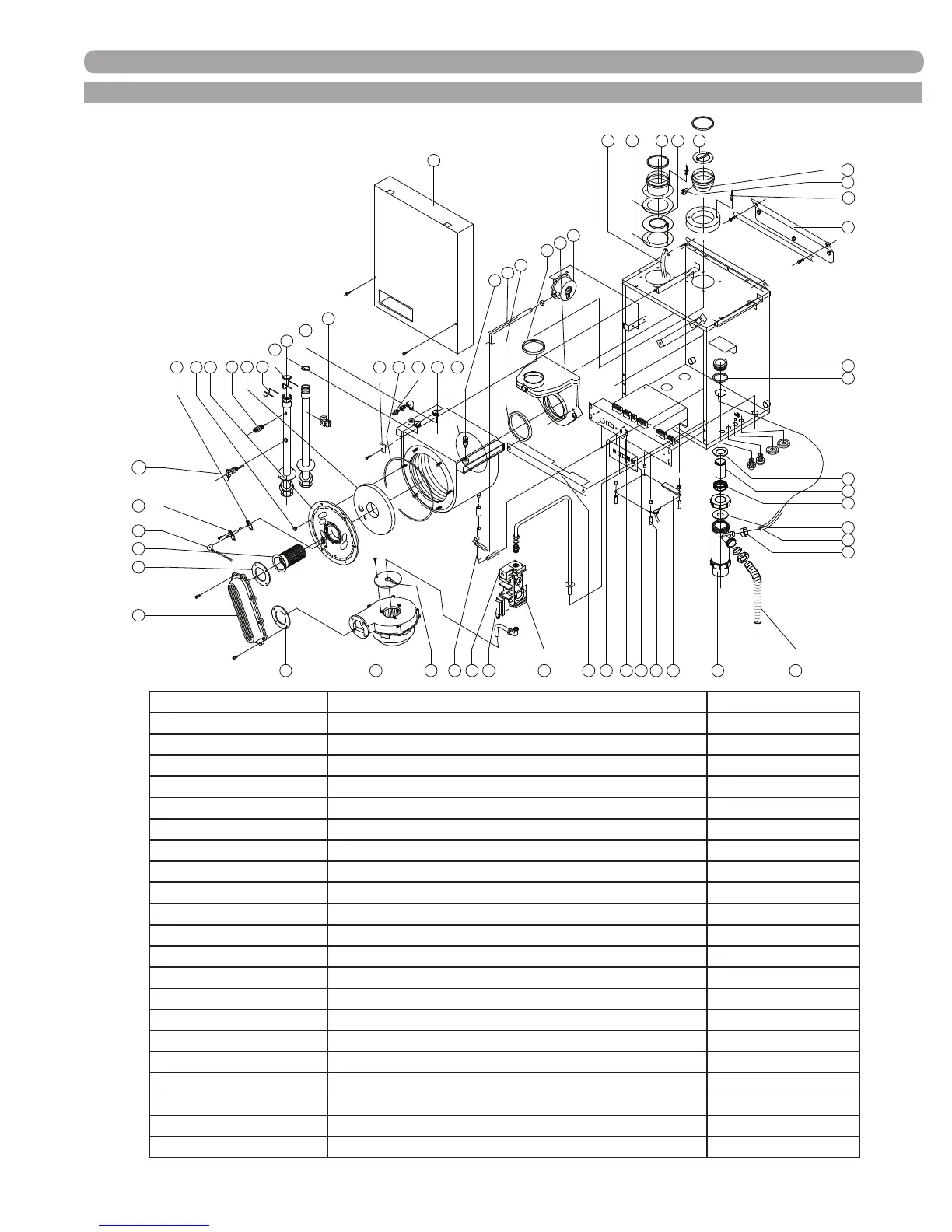

I. EVO MICRO (HW 79-199.1 & 199.8) PARTS BREAKDOWN
NUMBER ON DRAWING PART DESCRIPTION PART NUMBER
1 Front panel JKR 74076
2 Pressure Switch PRS 74326
3 Flue gas collector MSC 74112
4 Seal ring 60mm GKT 74022
5 Seal ring ue gas collector-heat exchanger GKT 74021
6 Hose pressure switch MSC 74048
7 Hand air vent MSC 74021
8 Burner room insulation (target wall) FIB 74098
9 Heat Exchanger C/F
10a High limit thermostat 195˚F HLC 74066
10b High limit thermostat 225˚F HLC 74274
11 Gasket burner door - heat exchanger GKT 74035
12
Heat Exchanger Clamps HEX 74037
13
Sensor Clamp 18mm TST 74395
14
Inlet Tube Assembly C/F
15
Outlet Tube Assembly C/F
16
O-Ring Quick Connect GKT 74027
17
Clip Quick Connect (specify copper or stainless arms) C/F
18
Insulation burner door FIB 74093
19
Inlet / Outlet sensors NTC TST 74287
20
Equipped burner door BNR 74056
Page 38 of 50
1
2
3
4
5
6
7
8910111222 21 20
18
24
25
26
27
28
29 30 3 1 32 33 34 393635 40 41
46
54
55
56
23
60 59
15
14
19
6146
17
16
13
47
49
50
51
45
52
53
58
57
42 38
43 44
